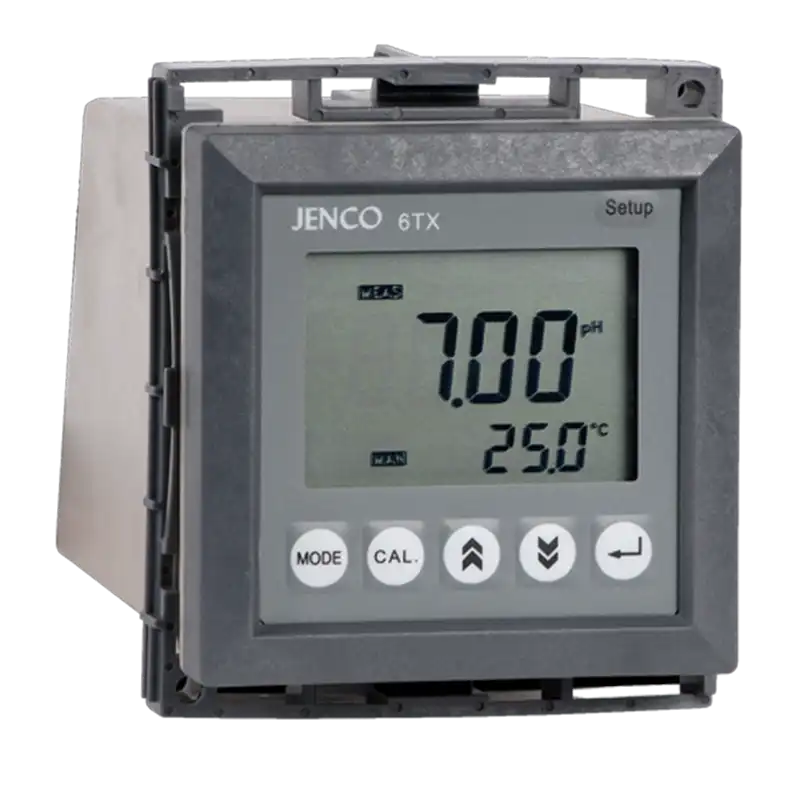

6TX
6TX
Scalable 12 to 36 VDC loop powered 4 ~ 20 mA transmitter, power down flash memory, 1/4 DIN IP65 case.
- Clear LCD displays pH or mV, simultaneously with temperature.
- Automatic buffer recognition of US and NIST buffer sets. Calibration
data is stored in memory and is ready for use on power up. - Isolated and reversible 4 ~ 20 mA current output for pH or ORP
allows It to be used as a proportional output. - Auto or Manual Temperature Compensation.
- IP65
| pH Range | -2.00 to 16.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.01 pH |
| ORP Range | -1000 to 1000 mV |
| ORP Resolution | 1 mV |
| ORP Accuracy | ±1 mv |
| Temperature Range | -10.0 to 120.0 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.3 °C |
| pH buffer recognition | US (4.01,7.00,10.01) or NIST (4.00,6.86,9.18) user selectable |
| pH Electrode Offset Recognition | ±90 mV |
| pH electrode Slope Recognition | ±30% |
| Temperature Compensation | Auto -10.0 to 120.0 °C (Thermistor,10K ohm / Resistor,Balco 3K ohm /PT-1000/PT100 ) or manual |
| Input Impedance | >1013 ohms |
| Input Select | User selectable pH or ORP |
| Current Output Range | 4 to 20 mA (isolated),programmable span |
| Power | 12 to 36 VDC |
| Ambient Temperature Range | From 0 to 50 °C |
| Weight | 600 grams |
| Case | IP 65, 1/4 DIN case, 148 mm depth |
