BAMO
European manufacturer of sensors and instruments for liquids
BAMO has expertise in:
- Analysis and measuring of fluids, pH, chlorine, conductivity, water hardness, turbidity and dissolved oxygen
- Control and level measurement, flow, pressure and temperature
pH and ORP
pH/mV monitors
Measurement of pH or ORP, alarms and/or regulation for water treatments, chemical industries, industrial applications.
BAMOPHAR displays on a colour touch-sensitive screen a multilingual friendly using menu. The reading is easy for measurement, temperature and relay status. It displays a menu with all parameters for configuration of analogue outputs, thresholds and regulation mode. For a safe start-up a test menu allow a simulation of regulation actuating all outputs and PID, relay outputs.
Analogue output reflects the measurement and may be scaled all along the range. Temperature analogue output is available as well as a 4-20 mA signal.
- Colour touch-sensitive screen
- 2 existing scales: 0 ... 14 pH or ±1000 mV
- Temperature compensation: Automatic or manual
- 2 outputs 0/4-20mA (pH and T °C)
- 4 relays (Thresholds, alarm and/or regulation)
OPTIONS:
- RS 422 /J-BUS + LOGGER
Extension terminal for 2nd measuring parameter
pH meter
pH meter
The BAMOPHOP 113 is a pH transmitter without display, designed for installation on a DIN rail in a cabinet. It converts pH measurements into an analog signal of 0/4-20 mA, 0-5 V, or 0-10 V.
A Pt100 Ohm input is available for temperature compensation of the pH. If no external probe is connected, a 110 Ohm resistor (supplied) must be used to ensure compensation at 25°C.
- Measurement 2...12 / 0...14 pH
- Output 4-20 mA / 0-5 V / 0-10 V
- 24 Vdc power supply
- DIN rail mounting
pH and ORP Immersion probes
pH and ORP Immersion probesFor all pH and ORP measurements in tank, drain, basin, open channel. Standard construction is of PVC, PPH or AISI 316, diameter 50 mm
The electrode holder is designed for a calibration routine without dismantling electrode.
- Electrode holder and protection
- Easy calibration routine
- Flange or PE collar fitting
- For 1 electrode with PG 13.5 fitting
- PVC, PPH or stainless steel construction
- Cable outlet through PG 9
pH and ORP immersion probe – Built-in temperature sensor
pH and ORP immersion probe – Built-in temperature sensorThis immersion probe 9337 is convenient for pH or ORP measurements in tank, drain, basin, open channel and when the temperature is important in the process. Standard construction is of PVC tube diam. 50 mm.
The probe is designed to avoid electrode damaged during calibration. Electrode protection end is removable from the holder. Buffer flask (9011/ 9012/ 9013/ 9015) grips on the holder during the calibration routine. There is no need to hold the probe during these operations.
Probe and flask can stand on floor. The electrode is not removed, no risk to break it.
- Electrode holder and protector
- Built-in temperature sensor Pt100
- Easy calibration routine
- Adjustable flange or PE collar fitting
- For any electrode PG 13.5
- PVC construction
- Cables: through 2 pressure glands
Immersion probe pH/ORP
Immersion probe pH/ORPHolder 9339 insures positioning and protection of electrode in a tank; it allows an easy calibration routine with low risks to break the electrode.
Standard material is stainless steel 316 L.
Fitting on site is done with a fixed flange (AISI 316 L) welded on the extension tube.
Flange type, dimensions, distance to electrode end, other fitting type: feasibility must be confirmed by BAMO technical department.
Cable passes through a cable gland fitted on a clamp connection, or on a head housing in aluminum alloy.
- Electrode protection holder
- Easy calibration routine
- For 1 electrode (fitting PG 13.5)
- Dismantable protection end
- Material: AISI 316 L
Immersion probe for pH and ORP measurements
Immersion probe for pH and ORP measurementsFor pH or ORP measurements in tank, drain, basin, open channel.
With or without temperature compensation. Probes 9346 are designed to avoid electrode damaged during calibration and to protect the measuring connections from humidity.
- Electrode holder and protector
- Easy calibration routine
- For 2 or 3 electrodes PG 13.5
- PVC or PPH construction
- Adjustable flange or PE collar fitting
- Cables: through pressure glands
- Easy to use, easy to install
pH or ORP continuous flow cells
pH or ORP continuous flow cells9200 series holders allows pH, ORP and/or temperature in-line measurements (flow through cells). They are designed to receive measuring electrodes with a fitting PG 13.5 (data-sheet 150-01 and 150-02). Choice of materials should consider chemical compatibilities and operating conditions of the application.
- Holder for 1, 2 or 3 electrodes
- Material: or PVC or PPH
- Process fitting: Union ND 20, diam. 25 mm
In-line electrode holder for pH and ORP electrodes
In-line electrode holder for pH and ORP electrodesHolder 9240 with suitable electrode allows in-line measurements of pH or ORP under pressure.
Holder is suitable for electrodes with fitting PG 13.5.
- Holder for 1 electrode
- Construction: in PVC
- Spigot ends Ø 25 mm for solvent welding
On-line holder for pH or ORP electrode
On-line holder for pH or ORP electrode9420 Series holders, with pH or ORP electrodes, allow measurements directly on pipe under pressure. Holders 9423 and 9424 allow assembly and disassembly of the electrode even on full pipe, for calibration.
Note: Assembly or disassembly only when the pipe is not under pressure.
- On-line holder for 1 electrode
- For full piping
- Materials: PPH or PVDF
- For inserting and removing the electrode (PG 13.5) with full pipe
On-line holder for pH or ORP electrode
On-line holder for pH or ORP electrode9410 holder with pH or ORP electrodes PG 13.5 allows measurements on-line with full pipe under pressure; for Nominal Diameter of 50 mm or larger.
The fastening system facilitates removal of the measuring electrode for maintenance.
Caution: Pipeline must not be under pressure during removal of electrode for calibration routine.
- Holder for 1 electrode
- For stainless steel piping
- Pipe ND 50 mm and larger
- Wet parts: AISI 316 L; FPM
- Fitting: Adaptor to weld on pipe
In-line electrode holders under pressure
In-line electrode holders under pressureThis electrode holder series is designed for pH/ ORP in-line measurements under pressure. Electrodes are described on data-sheet 150-01.
It is possible to fit up to 3 sensors, pH and/ or ORP electrodes, temperature sensor. These holders are made of AISI 316 L with seals of EPDM. For an easy start up and operation, the lid is locked with a tri-clamp, to ensure a perfect water tightness and pressure resistance.
- pH or ORP measurement
- Construction: AISI 316 L
- Pressure max. 16 bar
- Temperature max. 110 °C
- Fittings PG13.5 or BSP 1/2''
- For electrodes with fitting PG 13.5
- Process connections ND 15 to 32 mm
Floating holder for pH measurements
Electrodes and sensors holders for variable level
Floating holders allow measurement or detection (pH, hydrocarbons layer thickness) when the level is variable (lake, else...), even with great amplitudes. They may be secured by cables through two mooring rings and accept moderate stream in rivers, basins, lakes.
The float system for pH measurement features a circular float in 316 L stainless steel for greater stability. A flange with tightening nut allows adjustment of the immersion depth of the pH electrode holder.
For hydrocarbon layer thickness detector, the floating holder is made of 3 floats allowing free movement of hydrocarbon fluids layer. Immersion depth of probe can be adjusted via the pressure gland.
Each model comes with 2 mooring rings to secure the complete system. Their simple stainless steel mechanical structures make them robust and
maintenance-free.
- Floating holders for variable level
- Equipped with mooring rings
- Construction: AISI 316 L
- For pH measurement
- For hydrocarbons layer probe
With NivOil hydrocarbon sensor
Auto-cleaning probe
Auto-cleaning probeWhere pH is measured, there is a risk of electrode fouling; result is a drift of measured value. To be free of this, it is necessary to carefully clean the electrode. For this purpose, BAMO designed the auto cleaning probe 9360 to inject pressurized cleaning liquid on the electrode to remove impurities. For instance: injection of hydrochloric acid to remove sodium carbonate.
The probe 9360 accepts our electrode holder "probe 9336" (data-sheet 130-01). Tubing for cleaner liquid is all inside the probe body.
Auto-cleaning probe may be adapted at anytime on existing pH immersion probe 9336.
The cleaner fluid, water or acid + water, is projected through 3 nozzles around the electrode, 2 mm close to the bulb.
Fitting of the probe consists of an adjustable flange. The sliding ND 65 mm flange, allows adjustment of immersion depth. Only the immersion probe 9336 may be used with the system 9360.
The cleaning sequence is set up by our BAMOPHAR or BAMOPHOX monitors. During the cleaning routine, regulation is switched on "STAND-BY", not to interfere with the process.
- Chemical and mechanical cleaning
- For one pH electrode PG 13.5
- Easy to install
- Installation at any time on existing 9336 probe
Industrial pH electrodes
Industrial pH electrodespH monitoring and control in various industrial sectors:
- pH neutralization
- Wastewater discharge monitoring
- Cooling circuit (Ammonia detection NH₃)
- Electroplating / Galvanoplasty
- Decyanization / Cleansing
Reference system:
All electrodes use an Ag/AgCl system with a ceramic or PTFE diaphragm.
- Theoretical gain : The electrode produces approximately 58 mV per pH unit at a temperature of 20 °C.
pH combined electrodes:
Combination electrodes combine a measurement electrode and a reference electrode in a single unit. The measuring electrode is fully protected by the surrounding low-resistivity electrolyte of the reference electrode. The measuring part corresponds to the special pH glass bulb at the tip.
- For pH meter with analog input : Measurement in millivolts (mV)
- Combined electrodes (measurement + reference)
- PG13.5 thread + coaxial connector
- Gel electrolyte
Compensation temperature probes
Compensation temperature probes9090 probes with sensor Pt 100 Ω are designed for temperature measurement in the range -20 et +150 °C for pH monitoring systems. Built-in sensor is a Pt resistor, 100 Ω at 0 °C; probe is or simplex or duplex construction. Probes 9090 are in conformity with standard DIN 43760. They are used in particular on pH monitoring systems for automatic compensation of temperature.
The sensor is a Pt100 resistor, built-in a stem. The stem is fitted on a holder with its own PG 13.5 or with an additional pressure gland Ø 12 mm (not provided).
Connection: specific connector with a low contact resistance; the connector is molded on the cable to protect wires against humidity.
Connector is for shielded cable, 3 or 6 wires (0,22 mm²).
Temperature Limits
PVC 0 ... +45 °C
PVDF -20 ... +140 °C
Stainless steel -20 ... +150 °C
pH heavy duty electrodes
pH heavy duty electrodesThe BAMO reference system includes a cell Ag/AgCl type, built in a conductive polyester jacket, which external surface is used as electrolyte and junction. So, 2000 series electrodes are free of trouble from porous junction.
Complete ionic conduction is through the interface in polyester, therefore the reference protection is optimum.
Reference is protected against toxic salts and pollutants.
- Pressure limit: up to 30 bar
- High chemical resistance
- Long lifetime
- No KCl leaking
Applications
- Ultrapure water
- Chlorinated water
- Polluted fluids
- WWTP
- Fluids contaminated with sulphides or proteins
- Measurements in fluids with suspended solids and emulsions
ORP/redox industrial electrodes
ORP/redox industrial electrodesRedox potential is a key measure for assessing the balance between oxidizing and reducing components in a solution.
The redox electrodes presented here are combination electrodes, incorporating a measuring electrode (platinum or gold) and an Ag/AgCl reference electrode to guarantee reliable, stable measurement.
Reference system :
The Ag/AgCl system used in all our electrodes ensures optimum stability, with a ceramic or PTFE diaphragm as required.
Combined redox electrodes :
Measuring electrodes are available in two configurations.
- Platinum (dome-shaped): For standard applications such as swimming pools, dechromatation or wastewater.
- Pure gold (ring form): Specific to highly reducing environments such as decyanidation.
The metal part is in direct contact with the liquid and offers a design that facilitates cleaning while ensuring high reliability.
Applications
Monitoring and control of redox potential in various industrial sectors:
- Effluent treatment management (chromic and cyanide)
- Monitoring drinking water systems
- Chlorine monitoring in swimming pools
- Monitoring dissolved oxygen in water
- Wastewater monitoring
- Measurement in deodorization towers
Measurement in deodorization towersChlorine / Disinfection
Pocket photometers for chlorine measurement
Where punctual and rapid controls of water quality are necessary (swimming pools, aquariums, drinking water stations, etc.)
The pocket photometers MW10 and MW11, economic series, provide numerical results of free or total chlorine concentrations. Unlike analysis kits which provide an indication by comparison, MW photometers display a direct reading of chlorine concentration.
- For swimming pools or drinkable water
- Measuring ranges:
- Free chlorine: 0.05 to 2.5 ppm (MW-10)
- Total chlorine: 0.05 to 2.5 ppm (MW-11)
- Delivered ready to use
pH and Free & Total Chlorine Photometer
The Mi411 is a portable photometer that’s perfect for pool maintenance, aquaculture applications, and rapid water testing. It’s equally well‑suited for educators who want their students to master the fundamentals of water‑quality analysis and apply them in real‑world settings.
The Mi411 is a handheld photometer for pH, free chlorine and total chlorine testing, offering:
- Quick, clear readings on a large LCD display
- Resolution: ± 0.06 mg/L at 1.50 mg/L for chlorine; ± 0.1 pH at pH 7.2
- Measuring ranges: 0.00 – 5.00 mg/L for Cl₂ and pH 6.5 – 8.0
- Lightweight, portable design
- Auto‑shut‑off after 10 minutes of inactivity; 9‑volt battery included
The Mi411 comes in a rugged carrying case with two sample cuvettes, reagents*, a lint‑free wiping cloth and an instruction manual.
*Reagents: one 30 mL pH reagent bottle, plus 100 powder pillows for free chlorine and 100 powder pillows for total chlorine.
- For swimming pools
- Range :
- Chlorine from 0 to 5.00 mg/l
- pH 6,5 to 8,0
- Delivered ready to use in a carrying case
- Lightweight and portable
Technical
Free & Total Chlorine
| Range | 0.00 to 5.00 mg/L Cl2 |
| Resolution | 0.01 mg/L (0.00-3.50 mg/L) |
| 0.10 mg/L (above 3.50 mg/L) | |
| Precision | ±0.06 mg/L @ 1.50 mg/L |
| Method | Adaptation of the USEPA method 330.5 |
| Standard Method 4500-Cl G |
pH
| Range | 6.5 to 8.0 pH |
| Resolution | 0.1 pH |
| Precision | ±0.1 pH @ 7.2 pH |
| Method | Adaptation of the phenol red method. |
Sensors for disinfection monitoring
Sensors for disinfection monitoring- Free chlorine
- Total chlorine
- Chlorine dioxide
- Hydrogen peroxide
- Peracetic acid
Features:
- Wide measuring ranges
- Limits up to 70 °C and 8 bar
- Unnecessary zero adjustment
- Reliable measuring signal
- Built-in temperature compensation sensor
- Easy to use and to install
- Long life electrodes
- Adaptability to existing systems
- Dedicated measuring cells
- Low maintenance costs
- One spare part: sensor end (diaphragm)
- BAMOPHAR 194: for display and regulation
- ASSEMBLY: Ready to install
Amperometric sensors
The measuring cell insures a good distribution of liquid and an easy mounting. Each unit is designed to receive our amperometric sensors and pH/ORP electrodes.
Fitted with a needle valve in standard. A flow detector may be added.
- For amperometric sensors and/or electrodes pH, ORP, conductivity
- Up to 3 parameters on the same measuring cell
- Operating pressure up to 6 bar
- Operating temperature up to 80°C
- Flow limit controller
- Flow rate adjustment with a needle valve
- Outlet valve for sampling
Various models: Up to 1 amperometric sensor Ø 25 (chlorine, chlorine dioxide, ozone, hydrogen peroxide, peracetic acid) and up to 2 sensors PG 13.5
Operating: pH range from pH 2 to pH 12
Operating sample flow rate: From 30 to 100 l/h (40 l/h is recommended)
Flow adjustment: Integrated needle valve
Flow control: Inductive flow controller (recommended option)
Cell material: Polymethyl-methacrylate (PMMA)
Fittings material: PVDF
Monitoring and control of disinfection process
Monitoring and control of disinfection processBAMOPHAR 194 is designed for measurement and regulation of disinfectants (free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, peracetic acid) in process of water and industrial applications.
- Colour touch screen
- Input for 1 sensor 4-20 mA or 0-2 V
- Parameters according to the sensor in use:
Free & total chlorine, chlorine dioxide, ozone, hydrogen peroxide, peracetic acid - 1x Input for Pt100 sensor
- 2x Outputs 0/4-20mA (ppm or g/l and °C)
- 4x relays (Thresholds, alarm and/or regulation)
- OPTIONS :
RS 422/ J-BUS + LOGGER
Extension terminal for 2nd measuring parameter
It is equipped with a colour touch screen for multilingual display of a user-friendly and intuitive menu, and provides an easy reading of the measurement, temperature and status of thresholds. It displays the menu for setting the analog output, thresholds and operating mode.
To facilitate commissioning, a programming menu is used to simulate the measurement, acting analogue outputs and P.I.D, as well as thresholds.
Analogue output reflects the measurement and may be scaled all along the range.
Temperature analogue output is available as well as a 4-20 mA signal
BAMOPHAR 194 offers high flexibility on use through configurations of parameters
for regulation, thresholds, temperature compensation and alarms.
An extension terminal (wall, panel or DIN rail mounting):
- Allows a second measuring parameter (pH, flow-rate, conductivity, etc.)
(Data from this blind unit are displayed on the main unit) - Connected to main unit with 4 wire shielded cable
(Cable length between both devices: max. 500 m) - RS422 and Data Logger of main unit are shared between both units
Monitor for CCK sensor
Monitor for CCK sensorNEON ® monitor is designed for regulation and monitoring of various disinfectant compounds (chlorine, chlorine dioxide) with the sensor CCK.
Applications
- Chlorine measurement on drinking water
- Chlorine traces before reverse osmosis
- Measurements on cooling tower systems
The patented Automatic Cleaning System (ASR) removes deposits from the electrodes and keeps the sensor clean and operational during monitoring. The cleaning is an electrochemical operation.
The controller applies adequate voltage to the electrodes to generate oxygen and hydrogen, without the addition of chemicals. These gaseous releases eliminate deposits. The cleaning sequence takes about 30 seconds and may be repeated 1 to 7 times a week. During this period, the measurement is frozen and the control is inhibited.
The touch screen display provides easy reading of the measurement and temperature. The instrument also displays the menus to set up thresholds and operating mode.
- Disinfectant measurements with auto-cleaning of sensor
- 1x Input for CCK sensor
- 1x Relay output
- 1x Input for flow controller
- OPTIONS: PID with 2 relays, 1 or 2 Analogue outputs 4-20 mA, RS485 Interface (Modbus)
Free chlorine sensor, at constant pH
Free chlorine sensor, at constant pHWater treatment (for water equivalent to drinkable quality) at a constant pH.
Features:
• Colorimetry methods for quick and accurate results
• Waterproof with large LCD backlit display
• Easy-to-use, four button keyboard
The kit ClO₂⁺ contains the necessary components to begin the tests immediately.
- Water treatment
- pH must be constant
- No tolerance to surfactants
- Temperature 45 °C max.
- Pressure 1 bar max.
Technical
Measured parameter: Free chlorine
Chlorination additives: Inorganic compounds, such as NaOCl - Ca(OCl)₂ - gaseous chlorine, chlorine produced by electrolysis
Caution: Surfactants not tolerated
Output signal: 4 ... 20mA
Operating temperature 1 to 45 °C
Automatic temperature compensation
Operating pressure 1 bar max. (No vibrations, no pulsating flow)
Flow rate About 30 l/h
pH operating range: Constant between 6 and 8 pH, pH value must be constant
Interferences: Strong incidence of ClO₂ and O₃ on measuring signal; Chlorine produced by electrolysis with a non-diaphragm cell may cause damages.
Zero adjustment: Not necessary (from factory)
Slope calibration: Only 1 point with BAMOPHAR 194 according to directive DPD-1
Measurement Ranges
CL4.2.MA0.5 0.005 … 0.5 mg/l
CL4.2.MA2 0.005 … 2 mg/l
CL4.2.MA5 0.05 … 5 mg/l
CL4.2.MA10 0.05 … 10 mg/l
CL4.2.MA20 0.05 … 20 mg/l
CL4.2.MA100 0.5 … 100 mg/l
CL4.2.MA200 0.5 … 200 mg/l
Sensor for free chlorine with stabilizers
Sensor for free chlorine with stabilizersSwimming pool and spa water treatment (freshwater or seawater)
- For swimming pools
- Low incidence of pH variation
- Surfactants: partial tolerance
- Temperature: 45 °C max.
- Pressure: 0.5 bar max.
The CC1 closed-cell amperometric chlorine sensor detects and quantifies chlorine concentration in water. Equipped with three electrodes (measure, reference and auxiliary electrodes) immersed in an electrolyte, this probe ensures a controlled environment for the electrodes, optimizing measurement accuracy and stability.
Suitable for swimming pools
The CC1 probe is particularly suitable for swimming pools, as it tolerates up to 500 mg/l of isocyanuric acid, a stabilizer commonly used in pool water.
Free chlorine sensor
Free chlorine sensorWater treatment (for water equivalent to drinkable quality) and sea water.
- Treatments of Fresh water and sea-water
- Surfactants: partial tolerance
- Low incidence of pH changes
- Temperature: 45 °C max.
- Pressure: 3 bar max.
Technical
Measured parameter: Free chlorine
Chlorination additives: Inorganic compounds, such as NaOCl - Ca(OCl)₂ - gaseous chlorine, chlorine by electrolysis
Surfactants: partial tolerance
Output signal 4 ... 20 mA, screw connectors
Operating temperature 1 to 45 °C
Automatic temperature compensation
Operating pressure 3 bar max.
Flow rate About 30 l/h
pH operating range 4 to 9 pH - low incidence of pH changes
Conductivity: For sea water up to 50 mS/cm
Zero adjustment: Not necessary (from factory)
Slope calibration: On 1 point with BAMOPHAR 194 according to directive DPD-1
Interferences Incidence of ClO₂ and O₃ on measuring signal
Total chlorine sensor
Total chlorine sensorWater treatment (drinkable quality water and sea water).
- Water treatment, drinkable quality and sea-water
- Surfactants: partial tolerance
- Low incidence of pH changes
- Operating temperature 45 °C max.
- Operating pressure 3 bar max.
Technical
Measuring parameters: Total chlorine (Free + combined chlorine)
Chlorinating agents: Inorganic compounds additives such as NaOCl; Ca(OCL)₂;
gaseous chlorine; chlorine produced by electrolysis
Surfactants: partial tolerance
Output signal 4 ... 20mA, 2-wire, screw connectors
Operating temperature 1 ... 45 °C
Automatic temperature compensation
Operating pressure 0.5 bar max. (without securing collar); 3 bar (with securing collar)
Flow rate About 30 l/h
pH operating range pH 4 to pH 12 (low incidence of pH)
Conductivity: For sea water up to 50 mS/cm
Zero adjustment Not necessary (from factory)
Slope calibration: On 1 point with BAMOPHAR 194 according DPD 1 & 4
Bromine sensor
Bromine sensorWater treatment (for water equivalent to drinkable quality).
- For water treatment
- Low incidence of pH changes
- Surfactants: partial tolerance
- Temperature: 45 °C max.
- Pressure: 0.5 bar max.
Technical
Measured parameter: Hypobromous acid (HOBr)
Disinfection additives: Hypobromous acid (HOBr); bromochloro-dimethylhydantoin (BCDMH)
Measuring system: Closed cell with 3 electrodes and electrolyte
Supply voltage: 12 ... 30 V DC (Load 500 to 900 Ω)
Output signal: 4 ... 20 mA, screw connectors x2 (1mm²)
Operating temperature: 5 to 45 °C; Automatic temperature compensation
Operating pressure: 0.5 bar max. (No vibrations, no pulsating flow)
Flow rate: About 30 l/h
pH operating range: Between pH 6.5 and pH 9.5; Low incidence of pH changes
Zero adjustment: Not necessary (from factory)
Slope calibration: Only 1 point with BAMOPHAR 194 according to directive DPD
- Free bromine: DPD-1
- BCDMH: DPD-4
Interferences: Incidence of Cl₂, ClO₂ and O₃ on measuring signal
Materials: PVC, PEEK, AISI 316 Ti (1.4571)
Dimensions: O.D. 25 mm, length 220 mm (4-20 mA)
Chlorine dioxide sensor
Chlorine dioxide sensorWater treatment (for water equivalent to drinkable quality).
- Drinkable water, sea water
- Surfactants: partial tolerance
- Temperature: 50 °C max.
- Pressure: 1 bar max.
Technical
Measured parameter: Hypobromous acid (HOBr)
Disinfection additives: Hypobromous acid (HOBr); bromochloro-dimethylhydantoin (BCDMH)
Measuring system: Closed cell with 3 electrodes and electrolyte
Supply voltage: 12 ... 30 V DC (Load 500 to 900 Ω)
Output signal: 4 ... 20 mA, screw connectors x2 (1mm²)
Operating temperature: 5 to 45 °C; Automatic temperature compensation
Operating pressure: 0.5 bar max. (No vibrations, no pulsating flow)
Flow rate: About 30 l/h
pH operating range: Between pH 6.5 and pH 9.5; Low incidence of pH changes
Zero adjustment: Not necessary (from factory)
Slope calibration: Only 1 point with BAMOPHAR 194 according to directive DPD
- Free bromine: DPD-1
- BCDMH: DPD-4
Complete measuring system (assembly sold separately)
Interferences: Incidence of Cl₂, ClO₂ and O₃ on measuring signal
Materials: PVC, PEEK, AISI 316 Ti (1.4571)
Dimensions: O.D. 25 mm, length 220 mm (4-20 mA)
| Measured parameter | Chlorine dioxide |
| Applications | Water treatment (for water equivalent to drinkable quality) |
| and sea water | |
| e.g.: Bottles disinfection, CIP etc. | |
| Surfactants: partial tolerance | |
| Measuring system | Closed cell with 2 electrodes and electrolyte |
| Supply voltage | 12 ... 30 V DC (Load 500 to 900 Ω) |
| Output signal | 4-20 mA, terminal 2 connectors (2x1mm²) |
| No galvanic insulation | |
| Operating temperature | From 1 to 50 °C |
| Automatic temperature compensation | |
| Operating pressure | 1 bar max. (No vibrations, no pulsating flow) |
| Flow rate | About 30 l/h |
| pH operating range | Between pH 1 and pH 11 |
| Zero adjustment | Not necessary (from factory) |
| Slope calibration | Only 1 point with BAMOPHAR 194 |
| Interferences | O3 is measured with a factor of 25 compared to ClO2 |
| Cl₂ : Factor of 0,1 | |
| Materials | PVC-U and AISI 316 Ti (1.4571) |
| Dimensions | O.D. 25 mm, length 220 mm (4-20 mA) |
| CE Conformy: The instrument meets the legal requirements of the current European Directives |
Free chlorine, ozone, chlorine dioxide sensor
Free chlorine, ozone, chlorine dioxide sensorOnline measurement of a disinfectant (free chlorine, chlorine dioxide, ozone) for water treatment (suitable for dialysis application to detect when chlorine is appearing).
- For domestic hot water, drinkable water, cooling water
- Ranges: in ppb or ppm
- Reversible Voltage for electrodes cleaning
- Pressure limit: 10 bar
- No zero calibration required
The CCK is a potentiostatic sensor for performing an amperometric measurement.
Disinfectant and measurement range are selected via the NEON DIS monitor (see data-sheet 194-06)
The advantages are numerous:
- Automatic cleaning by reverse polarity via the NEON DIS
- Reduced maintenance (electrolyte free maintenance)
- Stable zero point
Measuring ranges for free chlorine and chlorine dioxide:
• up to 1000 μg/l (ppb)
• up to 5.00/ 10.00/ 20.00 mg/l (ppm)
Measuring ranges for ozone:
• up to 1000 μg/l (ppb)
• up to 5.00/ 10.00 mg/l (ppm)
Note: The monitored water must have a constant pH.
Free chlorine and chlorine dioxide sensors
Free chlorine and chlorine dioxide sensorsConcentration measurement of free chlorine or chlorine dioxide, hot sanitary water
and drinkable water. Caution: The pH must be constant for free chlorine measurement.
- For hot sanitary water, drinkable water
- pH must be constant (for free chlorine)
- Temperature: up to 50 °C or up to 70 °C
- Pressure: up to 8 bar
Measured parameter:
AS ... CL: Free chlorine
AS ... CD: Chlorine dioxide
Disinfection additives: Inorganic compounds, such as NaOCl, Ca(OCl)₂, gaseous chlorine, chlorine produced by electrolysis
Chlorine dioxide: Chlorite/ Chlorine; Chlorite/ Acid
Measuring system: Semi-open cell with 3 electrodes and electrolyte
Output signal: 4 ... 20 mA
Operating temperature:
AS2: 1 to 50°C
AS3: 1 to 70°C
Automatic temperature compensation
Ambient temperature: From 0 to 55 °C
Operating pressure: 8 bar max.
Cleaning system Equipment: RV1 (option)
Flow rate: Flow must be constant
15 l/h as a minimum, without RV1 equipment
45 l/h up to 90 l/h with RV1 equipment
pH operating range
AS ... CL: pH must be constant
AS ... CD: between pH 1 and pH 12
Zero adjustment Not necessary (from factory)
Slope calibration: Only 1 point necessary with BAMOPHAR 194:
Chlorine: DPD-1
Chlorine dioxide: DPD-1 (without chlorine)
Interferences
AS ... CL: Ozone, chlorine dioxide and chlorite
AS ... CD: Ozone, chlorine, chlorite, measured with less than 2% of their concentration
Ozone sensor
Ozone sensorConcentration measurement of free chlorine or chlorine dioxide, hot sanitary water
and drinkable water. Caution: The pH must be constant for free chlorine measurement.
- For clear water or sea water
- Highly resistant to surfactants
- Temperature : up to 45 °C
- Pressure: up to 1 bar
Features
| Measured parameter | Ozone |
| Applications | Water treatment (quality of drinkable water), sea water, |
| R.O. produced water ( >10 μS/cm ) | |
| e.g.: Bottles disinfection, CIP etc. | |
| Surfactants: tolerated | |
| Measuring system | Closed cell with 2 electrodes and electrolyte |
| Supply voltage | 12 ... 30 V DC (Load: 500 to 900 Ω) |
| Output signal | 4-20 mA, screw connector, (2x 1mm²) |
| No galvanic insulation | |
| Operating temperature | From 1 to 45 °C |
| Automatic temperature compensation | |
| Operating pressure | 0.5 bar without retaining ring |
| 1 bar max. with retaining ring | |
| (No vibrations; No pulsating flow) | |
| Flow-rate | About 15 to 30 l/h |
| pH operating range | pH 4..9 |
| Zero adjustment | Not necessary (from factory) |
| Slope calibration | Only 1 point with BAMOPHAR 194 |
| Calibration | DPD-4 method (DPD-1 + DPD-3) and record results on the BAMOPHAR 194 in the CALIBRATION menu. |
| Materials | PVC-U and AISI 316 Ti (1.4571) |
| Protection rate | IP65 |
| Dimensions | O.D. 25 mm, length 220 mm (4-20 mA) |
| EC Conformity: The instrument meets the legal requirements of the current European Directives | |
Complete measuring system (assembly sold separately)
Hydrogen peroxide sensor
Hydrogen peroxide sensorConcentration measurement of free chlorine or chlorine dioxide, hot sanitary water
and drinkable water. Caution: The pH must be constant for free chlorine measurement.
- For swimming pool water, drinkable water, cooling water, process water
- Range: from 0.001 up to 100.0 g/L
- Output signal: 4-20 mA
- Sensor affords surfactants
- Pressure limit: 1 bar as a maximum
- Unnecessary zero adjustment
Principle
Amperometric method with a closed cell of 2 electrodes; wasted sample.
The probe includes a CTN sensor for the temperature compensation.
Mounting / Recommendations
The measuring at a constant flow rate requires the use of a specific cell holder.
The complete assembly optimizes the operations.
Technical
Range: 0.001 to 100.0 g/L
pH range: From 2 to 11
Operating pressure: 1 bar as a maximum
Operating temperature: 1 to 45°C
Flow rate limits: 30 to 40 L/h (see doc. 193-95)
Power supply: 12...30 V DC, [Rmax = (U-7,5) / 20 kΩ]
Materials:
PVC-U, electro-polished AISI 316L
Dimensions Ø 25 mm, length 225 mm
Peracetic acid sensor
Peracetic acid sensorDisinfection process in food industry.
- Ranges: 0...2000 ppm
- Unnecessary zero adjustment
- Only 1 point requested for calibration
Technical
| Measured parameter | Peracetic acid |
| Applications | Disinfection in food industry (e.g.: Bottles cleaning, CIP); |
| Industrial water, sea water | |
| Surfactants are not tolerated | |
| Measuring system | Closed cell with 2 electrodes and electrolyte |
| Supply voltage | 12 ... 30 V DC (Load from 500 to 900 Ω) |
| Output signal | 4...20 mA, 2-pole terminal block (2x1mm²) |
| No galvanic insulation | |
| Operating temperature | 1 to 45 °C |
| Automatic temperature compensation | |
| Operating pressure | 0.5 bar max (without vibration and/or pulsation) |
| Option: 1 bar max. with safety ring (on request) | |
| Flow-rate | About 15 to 30 l/h |
| pH operating range | Between pH 1 and pH 6 |
| Calibration | Only 1 point with BAMOPHAR 194 |
| Interferences | O₃ is measured with a factor of 2500 |
| ClO₂ is measured, equivalent by a factor 1 | |
| H₂O₂ is measured, equivalent by a factor 0.005 | |
| Sulfuric and nitric acids do not interfere if their | |
| concentrations are below 1% | |
| Materials | PVC-U and AISI 316 Ti (1.4571) |
| Dimensions | Dia 25 mm, length 220 mm (4-20mA) |
| CE conformity: The device complies with the legal requirements of current European Directives. | |
Conductivity
Conductivity / Resistivity
Conductivity / ResistivityThe device is equipped with a colour touch screen for the display of a multilingual menu friendly and intuitive. It provides easy reading of measurement, temperature and state of the thresholds. It displays a menu with all parameters for configuration of analogue outputs, thresholds set up and regulation mode. In order to facilitate its commissioning, a programming menu can simulate the measurement, acting on the analog outputs, as well as on the thresholds.
Associated measuring cells have cell factors from 0.01 up to 10 for accurate measurements between 0 to 2 μS/cm and 20 mS/cm or O to 200 Ω.cm and 200 MΩ.cm .
BAMOPHAR 323 displays an absolute or compensated temperature measurement (Access to two reference charts: 20 °C and 25 °C).
An extension terminal (wall, panel or DIN rail mounting):
- Allows a second measuring parameter (pH, flow-rate, turbidity, etc.) - Data from this blind device displayed on the main unit
- Connected to main unit via a 4 wire shielded cable - Cable length between both devices: max. 500 m
- RS422 and Data Logger of main unit are shared between both units
In combination with one of BAMO's conductivity cells, BAMOPHAR 323 is designed for conductivity or resistivity measurements.
Examples:
- Conductivity on drinkable and ground water
- Conductivity in cooling tower
- Resistivity on demineralized water
- Control of ultra pure water production units
Features
- Colour touch screen
- Programmable ranges:
- From 0-200 Ω .cm up to 0-200 MΩ .cm
- From 0-2 μS/cm up to 0-20 mS/cm
- Associated measuring cells:
- Cell factors: 10 - 1 - 0.1 - 0.01
- Temperature compensation
- Automatic or manual compensation
- 2 outputs 0/4-20 mA, configurable
- 4 relays (Thresholds, alarm)
- Options:
- RS422/ J-BUS + LOGGER
- Extension terminal for 2nd measuring parameter
Transmitter
Conductivity transmitter and probe
The BAMOCOP 336, a conductivity transmitter without display, is designed for convenient installation on a DIN rail. It converts conductivity measurements into standard analog signals of 4-20 mA, 0-5 V, or 0-10 V. It therefore offers great flexibility for a wide range of applications. Thanks to its easy configuration, it is compatible with a wide range of probes with a coefficient of 1, 0.1, or 0.01.
For temperature compensation, the transmitter is equipped with a CTN input and uses a reference curve at 25°C. Automatic temperature compensation is performed within a range of 0 to 100 °C.
BC-type conductivity probes, equipped with integrated CTNs, are designed for use with the BAMOCOP 336 transmitter. Together, the BAMOCOP 336 and BC probes enable conductivity measurements across a wide range, making them the ideal choice for your conductivity measurement needs.
- Allows a second measuring parameter (pH, flow-rate, turbidity, etc.) - Data from this blind device displayed on the main unit
- Connected to main unit via a 4 wire shielded cable - Cable length between both devices: max. 500 m
- RS422 and Data Logger of main unit are shared between both units
Conductivity probes
Features
- Measured at 2 μS.cm⁻¹ to 20 mS.cm⁻¹
- 4-20 mA output
- 24 Vdc power supply
- DIN rail mounting
Conductivity meter for inductive probe
Conductivity meter for inductive probedisplays on a color touch-sensitive screen a multilingual friendly using menu. The reading is easy for measurement, temperature and relay status. Conductivity and temperature values are available as well from outputs 4-20 mA.
With inductive probes TCS 3020 or TCS S50, BAMOPHAR 364 allows measurements from 10 μS/cm up to 2000 mS/cm all along process routines.
- Probe TCS 3020 in NORYL is recommended for neutral liquids.
- Probe TCS S50 in PEEK is recommended when application requires high chemical resistance or process is at high temperature.
- Automatic temperature compensation
Conductivity and resistivity probes
Conductivity and resistivity probesExternal frame surrounds the active part (centric electrode) and limit the measuring area used for measurement, ensuring perfect shield grounding.Some models have a built-in temperature sensor (Pt100 type). For a high mechanical resistance, cells are in AISI 316 L with PTFE insulation.

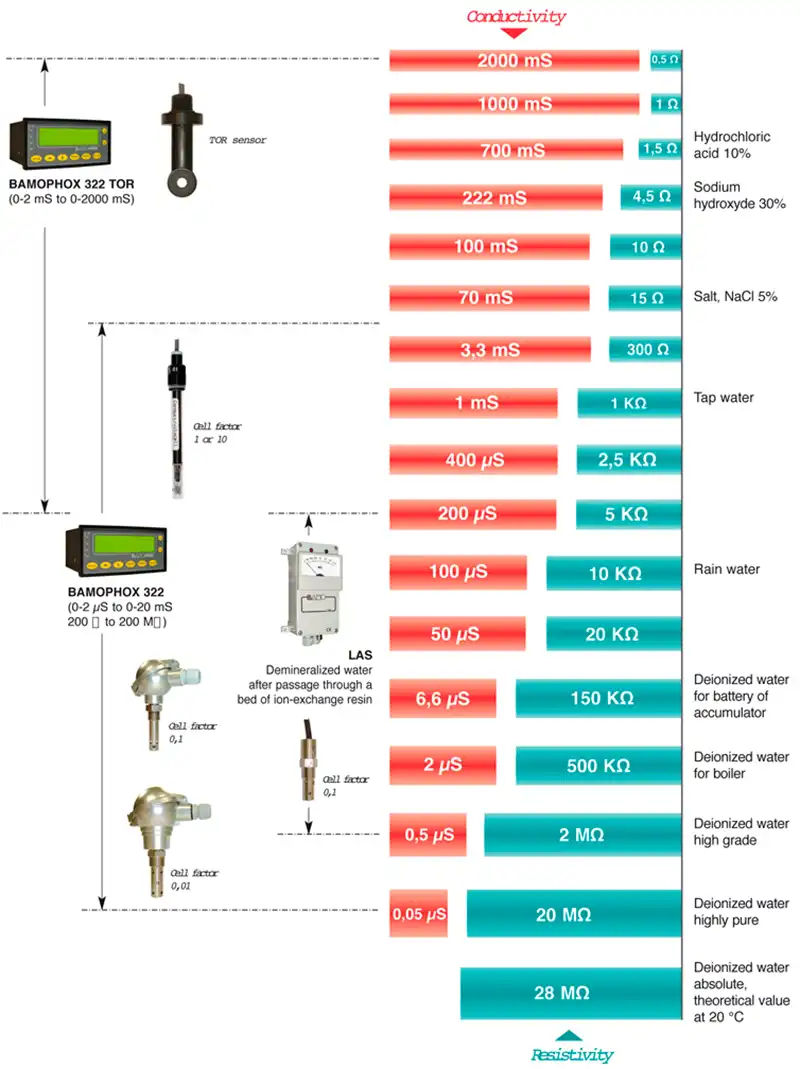

Cell factor
The cell factor is the ratio between the measurement done with the cell and value displayed on the monitor.
Example: A probe with a cell factor K = 0.1 immersed in a liquid of resistivity 10 kΩ.cm, measures a resistor value of 1 kΩ. The monitor will display a corrected value by factor K: resistivity displayed = 10 kΩ.cm .
For highly conductive liquids (low resistivity) it will be necessary to use probes with cell factor of K=1 or K=10 (BF1200; data sheet 361-01) or inductive sensors (toroidal sensor on data sheet 364-01/ 05).
Complete measuring system
A complete system includes:
- 1 Coaxial probe with K = 0.01 or K = 0.1
- 1 Connector PL259 or direct connection to screw connectors or cable output
- Coaxial cable CCA type
- A 3-wire cable C3B type (when Pt 100 sensor is built-in the probe)
- One BNC plug for monitor connection.
- A monitor BAMOPHAR 323 (see data-sheet 323-01).
Features
- Conductivity and resistivity probes
- Cell factors 0.1 and 0.01
- Reliability and sturdiness
- Construction: AISI 316 and PTFE, PVC
- For in-line or immersion measurements
Conductivity measuring electrode
Conductivity measuring electrodeThe BF 1200 cell is available with a fitting PG 13.5; The tube is 120 mm long (diam. 12 mm).
In order to protect the measuring tube and connector integrity, they may be supplied with an electrode holder for measurements in-line or in immersion.
BF 1200 cell: to be connected with a coaxial connector type 9054.
- Cell factor K = 1
- Fitting PG 13.5
- Body: Plastic PSU, tube Ø 12 mm
- Graphite measuring elements
Applications
BF 1200 conductivity cell is designed for low and high conductivity measurements; On request: Version ''CT'' with integrated temperature sensor.
In use with our monitor BAMOPHAR, this cell allows accurate measurements on clear solutions from 0.5 μS/cm.up to 2 mS/cm.
Inductive conductivity probe in NORYL
Inductive conductivity probe in NORYLTCS 3020 probe is convenient for measuring conductivity on a wide range between 10 μS/cm and 2000 mS/cm.
It uses inductive measurement principle that offers many advantages. There is a total galvanic insulation between measuring loop and the liquid which makes the measurement reliable on many chemicals.
- Range: from 10 μS/cm up to 2000 mS/cm
- Material: NORYL
- Temperature max. 70 °C
- Low fouling
- Built-in Pt 100 sensor
TCS 3020 is an inductive conductivity probe useful in wastewater treatment and in the chemical industry.
- Monitoring of aeration tower
- Clear water control (wells, drinking water, thermal baths, etc.
- Control of stormwater and runoff water
- Monitoring of NaCl concentration (0 to 26 %)
Inductive conductivity, PEEK probe
Inductive conductivity, PEEK probeTCL S50 probe is well adapted for measurement between 10 μS/cm up to 2000 mS/cm.
It uses inductive measurement that offers many advantages. Reliability with fouling or/and clogging liquids, or with a high level of pollutants. There is a total galvanic insulation between measuring loop and the liquid.
PEEK material allows a wide range of chemical compatibilities and a long lifetime. Probe may also work at high temperature up to 125 °C.
- Measuring range: 10 μS/cm up to 2000 mS/cm
- Construction: PEEK
- Wide chemical compatibility
- Temperature max. 125 °C
- Low fouling probe
- Built-in Pt100 sensor
Applications
TCL S50 probe is designed for applications where high chemical resistance or high operating temperature are necessary:
- WWTP survey
- Concentration monitoring of acid and base (e.g.: NaOH, HNO₃, H₂SO₄ ...)
- Quality survey of chemicals in tank or pipeline
- Phase separation of mixture liquid/liquid
Portable conductivity meter
Portable conductivity meterThe MW302 PRO conductivity meter is a compact, microprocessor-based device designed for long-term use.
This portable conductivity meter features automatic temperature compensation and an ergonomic housing with a large LCD screen for easy reading of measurements.
Each set comes with a black cardboard box that includes:
- 1 x MW302 conductivity meter
- 1 x SE-520 conductivity probe (1 meter cable)
- 1 x M10031B calibration solution (1413 μS/cm, 20 mL)
- 1 x 9V alkaline battery
- Instructions for use
Features
- Complete portable measuring set
- Range: 0.0 to 10.0 mS/cm
- Compact and ergonomic design
- LCD display
- Supplied with electrode, batteries, and buffer solutions
Applications
This practical and user-friendly conductivity meter is ideal for anyone working with a limited budget who needs fast and reliable water analysis measurements.
Turbidity

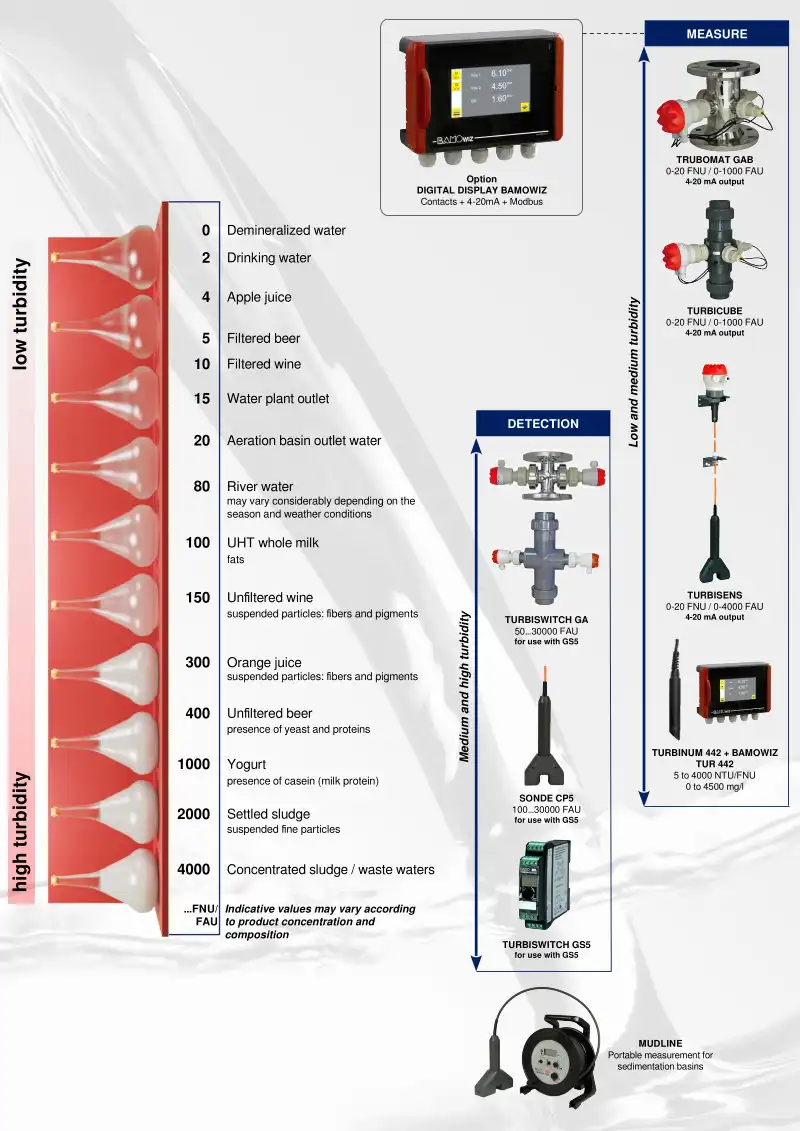

Turbidity is the scattering of light caused by suspended particles in a liquid. The light is dispersed in all directions and partially absorbed by the particles, depending on their size, surface area, and color. The measurement of this phenomenon is known as nephelometry.
Turbidity Units:
- FNU (Formazin Nephelometric Unit): Defined by ISO 7027 using infrared light (860 ± 60 nm) measured at a 90° angle.
- FAU (Formazin Absorbance Unit): Also defined by ISO 7027, using infrared light (860 ± 60 nm) measured at a 180° angle.
- NTU (Nephelometric Turbidity Unit): Defined by EPA Method 180.1, using visible light (tungsten lamp) measured at a 90° angle.
- FTU (Formazin Turbidity Unit): Used when turbidity is measured without a standardized angle.
Correlation with Total Suspended Solids (TSS)
An empirical correlation can be established through laboratory analysis of collected samples :
Total Suspended Solids (TSS) are expressed as mass per unit volume, typically in mg/L or as a percentage (e.g., 100 g/L may correspond to 2, 3, ... or 1000 particles, depending on particle type and distribution).
Turbidity controller
Turbidity controllerThe TURBISWITCH GS5 with one of its associated probes or cells, operates turbidity measurements for evaluation of solid content of a liquid.
The turbidity signal is read out as a limit value (adjustable ) via the controller GS5.
Turbidity measurement is based on the principle of optical attenuation of transmitted light, i.e. depends directly on the amount of undissolved solids in the liquid.
Pulse infrared light makes the measurement not affected by ambient light.
If the measured turbidity value is exceeding or below the trigger point value, the output relay in the TURBISWITCH GS5 is actuated in accordance with the settings.
Features
- Cost-effective turbidity controller
- Adjustable threshold along 3 ranges ( Low / Medium / High )
- Adjustable time delay and hysteresis
- 2 contacts (N.O.), potential free
- 1 fault contact (N.O.), potential free
Applications
- Breakthrough monitoring of:
Filter-presses
Ultrafiltration
Reverse osmosis - Monitoring of:
Centrifuges / separators
Pollution in condensate
Process water / waste water - Control of phase separation on:
Product / clear phase - Sludge level detection in:
Sedimentation basin
Sedimentation containers
Turbidity measuring cells
Turbidity measuring cellsTurbidity is the result of existing particles in the liquid.
TURBISWITCH GA is designed for installation in pipeline; It measures optically the turbidity of the flowing liquid.
Transmitted light measurement is done between an emitter and a receiver, in front of each other. Attenuated light measurement is convert by the TURBISWITCH GS4, which compares the signal against the threshold set by the operator. The limits of turbidity detection depend of the liquid's properties and nominal diameter of the measuring cell.
Measuring range is between 50 FAU min. (or above depending of liquid) and 10,000 FAU max.
Optical windows are of borosilicate glass with CLEANOSIL anti-fouling coating.
Applications
For process monitoring of:
- Filtration / Ultrafiltration
- Reverse osmosis
- Cooling units
- Centrifuges / Separators
- Condensates
- Wasted water / Industrial water
Features
- Turbidity limit value detection
- From DN15 up to DN100
- For TURBISWITCH GS4 controller
- In-line or by-pass assembly
- PVC, PP or stainless steel versions
Turbidity limit immersion probe
Turbidity limit immersion probeTurbidity is caused by particles in a liquid. This TURBISWITCH CP5 immersion probe, designed for open containers or channels, measures the turbidity of the liquid.
For this purpose, a transmitted light measurement is used, in which the transmitter and receiver are opposite each other.
The attenuated light is measured by the TURBISWITCH GS5 which accurately detects when the turbidity value set by the user is exceeded.
The detectable turbidity ranges goes from 50 to 30,000 FAU.
Applications
- Phase separation
- Sludge level detection
- Treated water monitoring
- Turbidity limit monitoring
Features
- For open containers, channels, flumes, etc.
- Maximum immersion depth: 10 metres
- Optical windows: Sapphire crystal
- For connection to the evaluation unit TURBISWITCH GS5
- Detection range 50 ... 30,000 FAU
Battery operated sludge level controller
Battery operated sludge level controllerMUDLine consists of a control unit mounted on a cable-drum and a submersible probe with a 10 m long cable.
The probe is equipped with a turbidity sensor for detection of interface between water and sludge, as well as an hydrostatic level sensor to measure the depth of immersion.
The depth is permanently displayed on the LCD screen of the control unit. Sensitivity of sensor is switchable between two ranges of sludge
concentrations (Low and High).
When sludge is detected, a buzzer sounds and light (red LED) is emitted. A self-hold function of display allows the reading of the depth.
Applications
Sludge level controller for:
- Sedimentation basins
- Primary and secondary clarifiers
- Septic tanks
Features
- Portable equipment, battery operated
- Sludge level detection adjustable on site
- Display of depth up to 10 m
- Signaling: Buzzer and LED
- Including: Battery charger230 V AC
Underwater settled solids detector
Underwater settled solids detectorA complete system includes a MUDSonic TS immersion probe and a MUDSONIC MF operating unit.
The detection is done between emitter and receiver of ultrasonic waves.
The probe evaluates the concentration of solid particles by attenuation of the signal.
The probe is immersed at a fixed height in the tank; It triggers a switch when the concentration (predefined) is reached (sludge level rising by settlement).
The trigger point and timer are adjustable on site (real operating conditions).
Applications
- Iron filings detection
- Salt detection in brine tank
- Sludge height monitoring in:
Thickeners
Primary clarifiers
Industrial processes (sludges with iron hydroxide, high density slurry, etc.)
Features
- Detection of settled solid particles in water
- Level monitoring with ultrasonic detector
- Output: 2 limit contacts, 1 fault contact
- Adjustable timer
- Adjustment along 3 measuring ranges (For sludge densities within 50 to 250 g/l )
Turbidity monitor
Turbidity monitorBAMOPHAR 436 is equipped with a color touch screen to set up the configuration and to display the turbidity, temperature and state of thresholds. Copies of measurement are available on 2 outputs 4-20 mA.
BAMOPHAR 436 displays the turbidity value measured by one of our transmitters, to respond to process requirements.
- TURBICUBE in PVC or PPH and TRUBOMAT GAB in stainless steel, are dedicated to in-line measurement
- TURBISENS in PVC is an immersion probe with transmitter for measurements in tanks, basins, channels.
A complete measuring system includes: 1x monitor BAMOPHAR 436, 1x turbidity transmitter
Applications
Turbidity measurement for monitoring and processing water treatment:
- Monitoring of source or wells for drinkable water
- Monitoring of filtering diaphragms, ultra-pure water production units, reverse osmosis plants
- Measurements in basins, decanting process
- Monitoring of clogging and rinsing of filtering units
- Monitoring of cooling towers
- Control of wastewater before discharge
Features
- Colour touch screen
- Available scales:
- 0.001 to 9999 FNU, FAU, NTU, mg/l, g/l
- 2x outputs 0/4-20mA (measurement & T.°C)
- 3x Independent relays
- 1x Relay for alarming function
- OPTIONS:
- RS 422 /J-BUS + LOGGER
- Extension terminal for a 2nd measurement parameter
Turbidity display
Turbidity displayWhen used with the TURBINUM turbidity sensor (see datasheet 442-02), the BAMOWIZ TUR enables continuous turbidity monitoring of water.
Specifically designed for the TURBINUM probe, the BAMOWIZ TUR offers local display and full signal management.
Equipped with an ergonomic touchscreen and an intuitive multilingual menu, it provides a user-friendly interface suitable for technical environments.
Its advanced features include:
- Real-time turbidity measurement display,
- Access to historical data over a 4-day period,
- Display of configured alarm thresholds,
- Configuration of 8 alarm thresholds distributed across 3 output relays,
- Transmission of the measured signal via a 4–20 mA analog output,
- Sensor calibration in NTU or mg/L,
- Two additional 4–20 mA analog inputs with 12 V sensor power supply, allowing the integration of additional measurements into the same display.
Thanks to its versatility, the BAMOWIZ TUR is a complete solution for turbidity monitoring and control in water treatment systems.
Applications
The BAMOWIZ TUR allows real-time visualization and management of data measured by the digital turbidity sensor.
The areas of application are:
- Urban wastewater treatment
- Surface water monitoring
- Groundwater pumping monitoring
- Industrial discharge control
Features
- Graphic color touch screen
- Turbidity measurement
- 1 Turbidity sensor input
- 1 analog output 0/4-20mA
- 3 relays (thresholds, alarm)
- 2 analog inputs 4-20 mA
Digital Turbidity Sensor
Digital Turbidity SensorThe TURBINUM sensor measures turbidity using the nephelometric principle. It operates with a diode that emits infrared light at a wavelength of 850 nm, and another diode positioned at a 90-degree angle that detects the scattered radiation.
This optical technology requires minimal maintenance. The probe stores its calibration data internally. All measurements are processed directly within the sensor and transmitted via MODBUS communication.
The BAMOWIZ TUR, specifically developed for the TURBINUM sensor, provides local display and signal management. The device is equipped with a touchscreen for displaying measurements and includes additional functions such as alarm threshold configuration, 4-20 mA signal retransmission, and sensor calibration. It also features two 4-20 mA inputs for additional measurement capabilities.
Applications
- Urban wastewater treatment (inlet/outlet controls)
- Sewerage network (load monitoring)
- Industrial water treatment
- Surface water monitoring, dredging site.
Features
- Optical fiber IR measurement
- From 5 to 4000 NTU/FNU or 0 to 4500 mg/L
- 90° measurement using infrared at 850 nm
- Modbus RS-485 digital output
- In accordance with standard 7067
Compact turbidimeter for immersion measurement
Compact turbidimeter for immersion measurementThe TURBISENS probe is used to measure the turbidity of a liquid. It is designed for measurement in immersion, in tanks or open channels.
Turbidity expresses the clarity or transparency of a liquid, such as water, based on the presence of suspended particles that scatter and absorb light. The more turbid a liquid is, the less transparent it becomes.
The measuring principle is based on a combined transmitted light / scattered light measurement according to DIN EN ISO 7027,
One receiver is facing the transmitter at 180° for transmitted light measurement. A second receiver is positionned at an angle of 90° for scattered light measurement.
Transmitted light measurement is used for high turbidity values, it is usually referred to with the unit FAU.
Scattered light measurement is used for low turbidity values, it is usually referred to with the unit FNU or NTU.
A measuring range 0-100g/l SiO2 solids concentration can be selected, which works only by means of transmitted light measurement.
Applications
Control and monitoring of :
- Wastewater treatment plant outlets
- Sedimentation and settling processes
- Water tanks
- Cooling water basin
Features
- Compact transmitter with 4...20mA output
- PVC or PP plastic version with scratch-resistant sapphire glass
- Measurement according to DIN EN ISO 7027
- Adjustable measurement ranges up to 2000 FTU
- Immersion depth: max. 10 meters
In-line turbidity system
In-line turbidity systemTURBICUBE measures the turbidity of the liquid using attenuated light beam (at 180°) and a scattered light beam (at 90°) with a 860 nm wavelength light, according to ISO 7027.
The measurement system integrates an assembly with 2 emitters and 1 receiver with a micro-processor in the main housing. The 4-20 mA output signal corresponds to the selected scale in use.
TURBICUBE 20:
5 scale ranges to select by DIP switches from 0.01 ... 1 up to 0.01 ... 20 FNU
TURBICUBE 1000:
5 ranges to select by DIP from 0.1 ... 500 FNU and 100 ... 1000 FAU
Applications
- Well water monitoring
- Monitoring of filtering or reverse osmosis units.
- Control of the sewage plant outlet
- Cooling water monitoring
- Filter clogging monitoring
Features
- Continuous turbidity measurement according to ISO 7027:
- 90° scattered light measurement and
- 180° attenuated light measurement
- Smooth cell surfaces - no settling of particles
- 2 models, measurement ranges:
- 0.01 ... 20 FNU
- 0.1 ... 500 FNU & 100 ... 1000 FAU
- Output signal: 4-20 mA
- Process connections Flanges or unions
In-line turbidity system
In-line turbidity systemTRUBOMAT GAB measures the turbidity of liquid applying nephelometric method.
For this purpose, a combined transmitted & scattered beams measurements are used, in which a transmitter and a receiver face each other and another transmitter is arranged orthogonally (at an angle of 90°).
The atenuated and scattered lights are recorded by the electronic module (in the connection head) and process the results to transmit a linear output signal. TRUBOMAT GAB delivers a 4-20 mA signal, according to the set measuring range.
Applications
- Well water monitoring
- Monitoring of membranes for filtration or reverse osmosis
- Wastewater control in outlet of WWTP
- Cooling plant monitoring
- Filter monitoring
TRUBOMAT GAB 20:
5 scales to select by DIP switches from 0.01 ... 1 up to 0.01 ... 20 FNU
TRUBOMAT GAB 1000:
5 scales to select by DIP switches from 0.1 ... 500 FNU up to 100 ... 1000 FAU
- Continuous turbidity measurement according to ISO 7027
- 90° scattered light measurement and
- 180° transmitted light measurement
- Measuring cell: AISI 316 L
- Measuring ranges:
- 0.01 ... 20 FNU
- 0.1 ... 500 FNU & 100 ... 1000 FAU
- Output signal: 4-20 mA (4-wire)
- Process connections: DIN flanges or Triclamp
Handheld turbidity-meter
Handheld turbidity-meterTurbidity is a measurement of how much is turbid a sample.
In rivers, it is usually caused by suspended particals or colloidal particles that absorb, scatter or reflect light. In eutrophic waters (with nutriments in excess), it may result of presence of bacteria and microalgae. By measuring the turbidity (photometric or comparative methods), it is possible to estimate the content of suspended particles, materials.
The BAMOPORT MI 415 is used to accurately measure turbidity in the field or in the laboratory. It includes in a rigid case: 1 turbidity-meter, 2 measuring cells (10ml), 3 standard solutions (0, 10 and 500 FNU), 1 microfiber cloth, 1 alcaline battery (9 V) and the user manual.
Fast and easy to use. The code for each operation is indicated on the LCD. The
battery icon indicates that battery has to be replaced.
A monthly calibration is recommended with the standard solutions. Instrument may
be calibrated with formazine solutions; however the supplied standards are safer to
use (not cancerigenous) and stable.
Applications
Handheld turbidity-meter for field measurements in rivers, drinking water and waste or industrial water.
Features
- Measuring scales:
- 0.50 to 50 FNU
- 50 to 1000 FNU
- Easy to use
- Supplied ready-to-use with a rigid case
Oxygen
Dissolved oxygen monitor
Dissolved oxygen monitorIn use with a BAMOX 453 probe, the BAMOWIZ OX 452 allows the continuous measurement of dissolved oxygen concentration in the water. With this set, the atmospheric pressure, water temperature and conductivity, are considered to provide a reliable display and accurate measurement (compensated).
BAMOWIZ OX 452 has a colour touch-sensitive screen to navigate through an intuitive and multilingual menu; It procures a large display for easy readings of measurements and operating status. To facilitate commissioning, a menu acting on the analog output and the thresholds is used to simulate the operating process.
The BAMOWIZ OX 452 has two more inputs; Both as 4-20 mA analogue signal (power supplied to sensors).
One of the 3 measurements can be transmitted to a remote PLC through the 4-20mA output.
Applications
The BAMOWIZ OX 452 system is a reliable and accurate solution for an optical measurement of dissolved oxygen in the fields of water treatments:
- Water treatment plant (e.g.: Aeration basin)
- Rivers, lakes
- Fish farming and aquaculture
Features
- Graphic color touch-sensitive screen
- Dissolved oxygen monitoring:
- 0... 20 mg/l ; 0 ... 500 %
- 1 Input for BAMOX 453 probe
- 1 Analogue output 0/4-20 mA
- 3 Relays (Trigger points, Alarm)
- 2 Analogue inputs 4-20 mA
Dissolved oxygen optical probe
Dissolved oxygen optical probeThe BAMOX 453, dissolved oxygen sensor, applies the optical luminescence measurement technology approved by ASTM International Method D888-05.
This method confers many advantages:
- High accuracy even for a low concentration of oxygen
- Reduced operating cost: Interchangeable sensor-end
- Optimized maintenance: No signal drift
- Easy commissioning: No necessary calibration
- Suitable for all environments: No consumption of oxygen
- Simplified installation: Direct immersion (no flow-cell)
With the integrated pre-amplifier and digital signal, the sensor is highly resistant to electrical noise. The measured value of dissolved oxygen is automatically compensated of effects of variations from temperature, pressure and salinity, then, transmitted to the monitor BAMOWIZ OX 452 (data-sheet 452-01)
The sensor-end is easy to replace for an easier maintenance task. The compact and robust probe is available or in passivated 316 L stainless steel, or in titanium for applications in seawater and corrosive environments.
Applications
- Urban wastewater treatments (nitrifying / denitrifying process)
- Treatment of industrial effluents
- Monitoring of surface waters, coastal waters, aquariums
- Fish farming and aquaculture (fresh water, sea water)
- Drinkable water
Features
- Optic-luminescent measurement
- Range: 0 to 20 mg/l
- Easy and reduced maintenance
- Temperature compensated signal
- Body: stainless steel, or titanium
Portable dissolved oxygen measurement
Portable dissolved oxygen measurementThe MW600 PRO is a compact, portable device designed for measuring dissolved oxygen.
It measures dissolved oxygen using a polarographic probe and is suitable for a wide range of applications, including education, aquaculture, and water analysis across various industries.
This practical and ergonomic device is ideal for anyone working with a limited budget who still requires fast and reliable measurements.
The large LCD screen makes readings easy to see.
The MW600 PRO is easily calibrated at two points (0 and 100%).
It features automatic temperature compensation from 0 to 30°C, ensuring high accuracy.
| Measurement range | 0.0 to 19.9 mg/L (0₂) |
| Resolution | 0.1 mg/L |
| Accuracy (at 25°C) | +/- 1.5% of full scale |
| Calibration | 2-point manual (zero and slope) |
| Temperature compensation | Automatic from 0 to 30 °C |
| MA840 probe | Polarographic with 4 m cable |
| Environmental conditions | Max: 0 to 50°C, 95% RH |
| Battery included | 9 V alkaline / 70 hours of use |
| Package dimensions | 268 x 122 x 118 mm |
| Weight | 880 g (Complete MW600 set) |
Features
- Measurement of dissolved O₂
- Polarographic probe
- Compact and ergonomic design
- Large LCD display
- Two-point calibration (0 and 100%)
Level Indicators
Level indicator

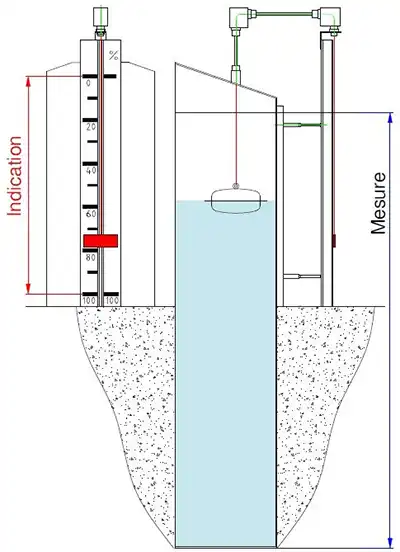

Level indicatorMAGTOP 300 is a device designed to indicate instant level of liquid in a tank.
Thanks to its two-tone magnetic flaps, which swivel as the float passes through the measurement tube, it provides a clear, precise reading. Its mechanical robustness enables it to be installed on liquids such as hot water or oils, subject to relatively high temperatures or pressures.
Operating conditions
This model is suitable for pressures up to 16 bar and maximum temperatures of 300 °C. For use beyond these limits, the MAGTOP D model must be used.
Installation and modularity
Side mounting is by means of threaded connections or flanges. To facilitate maintenance requiring removal of the indicator, isolation valves can be added. To simplify assembly or meet transport requirements, MAGTOP can be manufactured in 2 or 3 parts.
Reinforcement
For installations where the center distance of the connection fittings is large, support brackets can be added to the measuring tube and connected to the vessel to reinforce the fixing.
Manufacturing drawing
Each MAGTOP is manufactured according to a drawing that must be approved before production. To draw up this plan, it is necessary to provide service conditions and connection specifications:
- Fluid nature
- Density (kg/m3)
- Pressure (bar)
- Temperature (°C)
- Connection (Flange ND or thread)
- Center to center distance (mm)
- Accessories (see below)
Options : Accessories
- Magnetic contacts adjustable on indicator (see data sheet 585-02)
- Continuous level transmission: Potentiometric or analog 4-20 mA signal for models supplied in one piece (see data sheet 586-01)
- Scale graduated in cm, %, or volume to your specifications
- Drain valve with ½” BSP connection
- Isolating valves
Features
- Lateral mount
- Direct reading on two-color magnetic ruler
- Made in AISI 316L
- Pressure-resistant up to 16 bar
- Options: Level switches, Graduated ruler, Analogue output 4-20 mA
Top mounted tank level indicator
Top mounted tank level indicatorThe MAGTOP 400 and 410 are devices designed to indicate the liquid level in a tank in real time. A float, attached to a rod, causes a pointer to move up and down in a tube located above the tank, as the level rises or falls. Thanks to its two-color magnetic flaps that pivot as the pointer passes through the measuring column, it provides a clear and accurate visual reading. Its mechanical robustness allows it to be used with liquids such as hot water or oils subject to relatively high temperatures or pressures.
Operating conditions
This model is suitable for pressures up to 16 bar and maximum temperatures of 300 °C. For use beyond these limits, it is necessary to use the MAGTOP D model.
Assembly and modularity
The indicator is mounted on the tank using a flange connection. To simplify assembly or meet transport requirements, the MAGTOP 410 can be manufactured in two parts.
Manufacturing drawing
Each MAGTOP is manufactured according to a drawing that must be approved prior to production. For each MAGTOP, it is necessary to provide the operating conditions and connection specifications.
- Fluid nature
- Density (kg/m3)
- Pressure (bar)
- Temperature (°C)
- Connection size (Nominal Diameter)
- Immersion height (mm)
- Accessories (see below)
Options: Accessories
- Adjustable contacts on indicator tube (see data sheet 585-02)
- Continuous level transmission: Potentiometric or 4-20 mA analog signal for model supplied in one piece
- Graduated scale in cm, %, or volume according to your specifications
Applications
Level visualization and control in closed and/or buried metal tanks.
Features
- Top mounting
- Magnetic bicolor flip‑flag display
- Made in Stainless Steel AISI 316L
- Pressure resistant up to 16 bar
- Options: Magnetic level contacts, 4-20 mA analog output, Graduated ruler
Level indicator - ATEX and/or P.E.D.
Level indicator - ATEX and/or P.E.D.MAGTOP D indicates instantly the level of liquid inside the tank, with a two-colour ruler with magnetic flaps actuated by the magnetic float inside the measuring tube.
Design of this series allows the installation in hazardous area on storage tank for dangerous fluids, under pressure, with high temperature. For extreme operating temperatures we provide a complete or partial insulation (fiber glass fabric).
Our MAGTOP D are made of stainless steel with lateral fittings, flanges or threaded fittings.
Other type of connection is available: coaxial or for over-tank installation (free space above the tank is equivalent to the immersion depth).
MAGTOP D is subject to approval: we submit a plan before manufacture (mandatory).
Options : Accessories
- Level switches are adjustable along the measuring tube (data-sheets 585-..)
- Analogue transmitter with a 4-20 mA output signal.
- Graduated ruler in %
- Drain valve (1/2" BSP or NPT).
Certificates available on request (before quote/ manufacturing):
- Materials certificate EN 10204 3.1
- P.E.D. 2014/68/EU
- Pressure test (bar) 2.2
• GL, LRS or BV
• NACE MR 01.75 / ISO 15156
• ATEX II 1/2 G c IIC T1…T6; II 1 D Txx°C
Applications
Direct reading and control of level inside opaque and closed metal tanks in hazardous area ATEX or/ and under pressure requirements of Pressure Equipment Directive.
Features
- Versions ATEX or and PE
- Direct reading on two-color magnetic ruler
- Temperature up to 450 °C
- Pressure up to 250 bar
- Options: Level switches, graduated ruler, Analogue signal transmitter
Magnetic flap indicator
Magnetic flap indicatorMAGTOP G5, magnetic flap indicators display on site instant level of liquid; Options: available for control and remote signal.
The devices are mounted on the side of tanks.
The magnet in the float turns the plates of the magnetic flap ruler from yellow to red as the fill level rises.
Applications
- Condensate tank
- Pressure boosting systems
- Oil tanks
- Boiler feedwater tank
- Degassing process
- Sanitary water tank
Features
- Bypass magnetic flap indicator
- Options: with limit switches and/or 4-20 mA transmitter
- Easy to handle
PVC version with graduated scale
Plastic side level indicator
The MAGTOP allows you to instantly view the liquid level in a tank thanks to two-color magnetic flaps that pivot when the float passes through the measuring column.
The MAGTOP 801, 803, and 806 models are made of plastic materials (PVC, PPH, or PVDF) suitable for chemicals and corrosive fluids. Their robustness allows them to be installed on hazardous products such as bases or acids.
Operating conditions
The standard model is suitable for pressures up to 6 bar (see pressure/temperature diagram). For use beyond this limit, it is necessary to use the model with reinforced welded joints.
Reinforcement and modularity
For installations where the center distance between process connections is large, intermediate support brackets can be added to the measuring tube to reinforce the attachment to the tank. To facilitate assembly or meet transport requirements, MAGTOP units can be manufactured in 2 or 3 parts.
Manufacturing drawing
Each MAGTOP is manufactured according to a drawing that must be approved prior to production. For each MAGTOP, it is necessary to provide the operating conditions and connection specifications:
- Fluid nature
- Density (kg/m3)
- Pressure (bar)
- Temperature (°C)
- Center-to-center distance (mm)
- Connection size (Nominal Diameter)
- Accessories (see below)
Options: Accessories
- Adjustable contacts on indicator tube
- Continuous level transmission: Potentiometric or 4-20 mA analog signal for model supplied in one piece
- Graduated scale in cm, %, or volume according to your specifications
- Drain valve with ½" G (BSP) connection
PPH version with shut-off valves
Applications
Level visualization and control in opaque, closed plastic tanks.
Features
- Side mounting
- Magnetic bicolor flip‑flag display
- Can be made in : PVC, PPH, PVDF
- Pressure resistant (refer to curves)
- Options: Magnetic level contacts, 4-20 mA analog output, Graduated ruler
Electrical contacts for MAGTOP indicators
The MAGTOP series indicators are fitted with a magnetic float allowing the use with magnetic free of potential contacts positioned at will on the indicator. The contact remains stable in its last position and switches only when the float passes.
These models are mounted directly on the level indicator tube using the stainless steel collar supplied (except FLS model, mounted on ATEX MAGTOP). Note: during mounting, it is advisable to ensure that the box is accessible to facilitate connections to the terminal block.
Applications
- Level contact for MAGTOP type level indicators: High/low level alarm, solenoid/motorized valve open/close contact, etc.
Features
- For MAGTOP indicators
- Bistable changeover contacts
- High breaking capacity
- Adjustable along indicator height
- ATEX version
Level indicator
Level indicatorThis level indicator includes a borosilicate glass for direct reading of the level.
Fittings include stop valves for easy dismounting even when the tank is full. The lower armature has a drain valve.
To limit the shocks on the glass tube we recommend the use of a protection screen (transparent PVC).
The float in polypropylene has a built-in magnet to actuate the level contacts BSM or BRK, directly fitted on the tube for remote signals (for alarms, monitoring of pump, valves, etc.).
Applications
- To read and control the liquid level inside a tank; To monitor the level through remote signals to a pump, solenoid valves and for alarming signals on high and low levels etc.
- GNR 5 Glass/ Brass is well adapted for clear water and compatible liquids, etc.
Features
- Direct reading on the tank
- Height from 300 up to 2000 mm
- Materials: Glass and brass
- Seals: Silicon rubber
- Option: Adjustable level contacts
Level indicator
Level indicatorThe GNR5 consists of a transparent PVC tube for direct viewing of the stored liquid level.
Stop valves (in option) allow the disassembly of the measuring tube by keeping the tank under pressure.
Drain valve as an option on the bottom fitting.
To limit shocks to the measuring tube, GNR5 can be equipped with a transparent PVC protection screen.
Accessories: Level switches BSM or BRK to send a remote signal on/off for alarms or automation of pump or solenoid valve.
Applications
- Reading and control of liquid level in a tank.
- With level switches: Pump and solenoid valves automation, remote alarm signals.
Features
- Direct reading on site
- Height: 40 to 500 cm
- Wet parts: PVC, PPH
- Seals: EPDM
- Adjustable level switches
Level indicator
Level indicatorThe GNR6 consists of a transparent PVC tube for direct viewing of the stored liquid level.
Standard supply includes the stop valves to allow the disassembly of the measuring tube for cleaning maintenance. The measuring tube is in transparent PVC, O.D. 63 mm, which guides the magnetic float. On the bottom the PVC drain plug (union fitting) allows an easy introduction of the float into the measuring tube.
Option: Graduated ruler, PVC ruler, graduated in cm or on request in % or in volume.
The ruler is fixed with PE clamps to the measuring tube.
Accessories: Level switches BSM or BRK to send a remote signal on/off for alarms or automation of pump or solenoid valve.
Applications
Reading and control of liquid level in a tank; With level switches: Pump and solenoid valves automation, remote alarm signals.
Features
- Direct reading on site
- Measuring tube O.D. 63 mm
- Wet parts: PVC and PPH
- Stop valves, included
- Options: Level switches, graduated ruler
Bypass level indicator
Bypass level indicatorThis level indicator allows the liquid level to be viewed directly through a transparent PMMA or glass tube. It is mounted laterally on the tank using ½"
cylindrical gas fittings BSP.
- Lower section: fitting equipped with a shut-off valve with drain screw.
- Upper part: trim fitted with a vent cap.
Its compact size allows installation even on reduced center distances.
Note: This model does not allow for the addition of a float or electrical contact.
Option: available with protection screen for enhanced security and improved impact resistance.
Applications
- Visual monitoring of liquid levels in tanks, vats, or cisterns.
- Use on equipment requiring rapid and direct level control, even in confined spaces.
Features
- Fittings: AISI 316 L
- PMMA or glass reading tube
- Bottom stop valve integrated
- Drain & vent plugs (standard)
- Center to center: 150 ... 1500 mm
| GNR 4 P/P - PMMA tube | |
| Fittings | AISI 316 L |
| Reading tube | PMMA (poly-methyl methacrylate) |
| Seals | Silicone or FPM |
| Couplings | BSP ½'' |
| Nuts | Plastic |
| GNR 4 V/I - Glass tube | |
| Fittings | AISI 316 L |
| Reading tube | Glass |
| Seals | Silicone or FPM |
| Couplings | BSP ½'' |
| Nuts | AISI 316 L |
Level controllers and indicators
Level controllers and indicatorsThe electric gauge is mounted above the tank.
Against the liquid height, the float transmits the level through an angle drive to a vertical stem. The stem actuates on a pointer associated with a graduated dial to display the level in the tank. Depending on the model, it can also act on contacts, and/ or a potentiometer which will deliver an ohmic value image of measurement.
The instrument is available with several functions:
- 1 continuous signal output (Ω)
- Display for direct reading of level. For commodity, the level is visible on 2 opposite sides.
- 1 to 3 contacts (potential free). Option: on request up to 5 contacts
The complete system is supplied ready to install and to use.
Applications
Gauge for level display and filling control.
- Diesel in storage tank or day-tank
- Stored lubricating oil, glycol water, rainwater
Particularly suited to meet the needs and conditions of use for storage tank or day-tank of diesel generators.
Features
- Tank height from 250 to 3000 mm
- Transmission: angle drive
- Fitting: male 2” BSP
- Head housing: IP 54
- 3 possible functions:
- Direct reading
- With 1 to 3 contacts, potential free
- Output signal: continuous resistive signal (Ohm)
Electric level gauge
Electric level gaugeUnder the thrust of the fluid, the float transmits the level through an angle drive to a vertical stem. The stem is then actuating a potentiometer (resistive output) and/or actuates contacts (alarms).
The electric gauge is mounted above the tank.
The complete system is supplied ready to install and to use.
Applications
Level transmitter and alarm signals on low and high levels, are designed for indoor or outdoor tanks. Liquid storage examples:
- Diesel
- Lubricating oil
- Glycol water
- Rainwater
They are particularly well adapted for storage or day-tank on diesel generators located outdoor.
Features
- Tank height from 1250 to 3000 mm
- Transmission: angle drive
- Fitting: BSP-M 2''
- Head housing: IP67
- 2 possible functions:
- 1 or 2 contacts, potential free
- 1 analogue output (Ω) + 1 contact
Level indicators and controllers
Level indicators and controllersUnder the thrust of the fluid, the float transmits the level through a rod transmission to a vertical stem. The stem actuates a pointer on the dial, the contacts or/ and a potentiometer for output resistive signal image of the level. The gauge is mounted on the top of the tank.
Instrument is available in various versions according to requirements:
- Direct reading of level on top or/ and side of gauge head.
- 1 to 3 contacts (2 way contact), high and low levels and/ or pump automation
- Output for continuous resistive signal
The complete system is supplied ready to install and to use.
Applications
These controllers for alarms on low, high levels, and transmitters of continuous level, are designed for indoor and small tanks
- Diesel in tanks
- Day-tanks
- Lubricating oil
- Glycol water
- Rainwater
Particularly suited for small storage tanks (150 to 650 mm high), e.g. on filling automation of tanks for diesel generators.
Features
- Height from 150 to 650 mm
- Fitting: BSP 2'', male
- Head housing: IP54
- 3 possible functions:
- Direct reading on dial
- With 1 to 3 contacts, potential free
- Output signal: continuous resistive signal (Ω)
Electric level gauge
Electric level gaugeFollowing the level of diesel, the float drives the stem fitted on an axis to a potentiometer which delivers a resistor value (Ohm) that is the image of the level.
The potentiometric output can be connected directly to our ITU electronics in order to display the volume inside the tank, and monitoring alarm thresholds through the relay outputs (See data-sheets 222-02 & 222-04).
Models:
- CN1: Standard version with potentiometric output.
- CN1 2R: Version for diesel engines, with poteniometric output, plus, tubings for suction and return of diesel.
Applications
This level gauge is used on diesel engine tanks (generators, machinery, etc.).
It is perfectly suited to small tanks.
Features
- For diesel tanks
- Height from 200 up to 650 mm
- 1 Ohmique output (Option: 4-20 mA)
- Option: Suction and return tubings
Float switch for retention receiver
Float switch for retention receiverAgainst the liquid height, the float lift up a stem actuating a change-over contact.
The fitting allows installation on almost any day-tank or retention receiver.
The stem length may be modified on request.
Several versions are available depending on detection heights and mounting:
CF30 Model:
The float is mounted vertically to reduce dimensions.
Distance H: Min. 150 mm
Distance H: Max. 950 mm
Detection from 100 mm of liquid as a minimum (depending of H).
CF31 Model:
The float is mounted horizontally for a detection as soon as possible.
Distance H: Min. 150 mm
Distance H: Max. 2000 mm
Detection from 20 mm of liquid as a minimum (depending of H).
CF32 Model:
Similar to CF30, but with BSP 2'' fitting
Applications
The float switch CF30 and its variants, are designed to detect a leak from the main tank falling into the retention receiver. Compatibility with liquids (examples):
- Diesel
- Lubricating oil
- Rainwater
- Water-glycol mixture
As it is a simple controller, much more applications are available.
Features
- For retention receiver and gutter
- Stem length: from 150 to 2000 mm
- Easy installation
- Output: contact, potential free
- Gauge head housing: IP 54
Float switch for retention receiver
Float switch for retention receiverThe air inside the immersion tube is compressed when the piston of integrated pump is pulled and pushed. When the pressure balances the hydrostatic pressure (column of liquid), bubbles escape. The pointer on the gauge indicates the level on the dial.
It is possible and easy to change the scale according the tank shape and its volume. See the table of codes and references for the different scales.
Applications
Semi-permanent level controller designed for instantaneous viewing of current level in a non pressurized tank.
- For storage tanks of diesel (height up to 5 m)
- For storage tanks of water (Height up to 4 m)
Features
- Dial display 160x160 mm
- Semi-permanent indication
- Integrated check-valve
- Protected against overpressure
Protected against backflow - For tanks of any shape
- Scale in % or Volume (according tank type)
Level gauge electro-pneumatic, autonomous
Level gauge electro-pneumatic, autonomousThe gauge JEPA 580 is a level indicator. It is suitable for measuring the liquid height in all forms of tanks, as well as in drums.
Default display is height in centimetres.
By programming, the volume can be displayed in litres for cubic, vertical or horizontal cylindrical, spherical, tanks.
The fluid S.G. determines the gauge model:
- JEPA 580-1 is well adapted for water or liquid with S.G. = 1
- JEPA 580-0,85 is well adapted for diesel with S.G. = 0.85
Other S.G. on request
Caution:
- This device is not suitable for invoicing/ transactions.
- Suitable only to tanks at atmospheric pressure.
- This device is not convenient for an hazardous area , ATEX.
A complete JEPA 580 package includes:
- An electronic case with: Flexible tubing (inlet); length: 1 m, 1 Alcaline battery, 9 V, Brackets (adhesive)
- Screws and dowels for wall mounting
- Measuring tubing (3 m long) with counterweight, both compatible with diesel, and one tank connection
For replacement of a pneumatic gauge with pointer:
JEPA 580 is suitable for replacement of a gauge type TLM. In such a case, it is sufficient to plug the existing tubing to the JEPA 580 gauge.
Applications
Time to time level control on barrels, tanks (plastic or metallic one) for storing water or diesel.
To replace a traditional air gauge type TLM
Features
- For compatible liquids (diesel, water, ...)
- Displays in cm or Volume
- For any kind of tanks
- Battery operated
- Height max.: Diesel 3 m; Water 2.5 m
Mechanical level gauge
Mechanical level gaugeThe mechanical gauge consists of a float which follows as the level of liquid is varying in the tank. The float is linked to a rotating pointer which displays on the dial the quantity remaining of liquid in the tank.
Gauge calibration: The scale graduated in cm is adjusted on site to the height of the tank using a screwdriver.
Entirely mechanical, the gauge provides a direct indication of the level in the tank, without electrical power.
Applications
Diesel tanks, water tanks, suitable for non-aggressive liquid in safe area.
Features
- Local level indication
- For any tank shape
- Mechanical, without power supply
- Scale in cm
- Vertical or horizontal dial
Technical
Dial position : Versions: Horizontal or Vertical
Fittings :
BSP-M 1 ½''
Option : Coupling BSP-M 2'' ---> 1 ½''
Graduated scale : 0to 200 cm
Adjustment : To container height with a screw driver
Dial : Ø 95 mm
Float : Ø 42 mm
Operating pressure : Atmospheric
Operating temperature : 0... +40 °C
Adjustment of float system up to the height of the manhole (Max. 270 mm).
Limnimetric scales
Limnimetric scalesLimnimetric scales on rulers, vertical or at 45° angle, are designed for use in rivers, lakes, lagoons, harbours, dams, channels, etc. Robustly constructed, our cast aluminum rulers resist to damages from highly charged water as well as from corrosive seawater.
The basic module with scale and figures is made in one piece with a total width of 15 cm. The ruler is delivered per elements of 1 meter each, graduated in centimetres with values every decimeter. Each section has two sloted holes at each ends which facilitate adjustment on site.
Benefits:
- Easy to install
Installation is simple with two sloted holes at both ends of each section.
- Long lifetime
The ruler is made of a high performance light alloy which guarantees a long service life compared to traditional rulers made of plastic or enamelled sheet of metal.
- Heavy duty rulers
Each module with graduated scale and figures is made of one piece. This design guarantees perfect resistance of the inscriptions even after extreme cold weathers with ice on the ruler.
- Modular
The sets are supplied in 1 meter sections allowing replacement of a section that have been damaged (by ships for instance).
Applications
Direct reading of level in dams, reservoirs, basins, rivers, etc. Highly resistant to corrosion, sea water and climate strengths
Features
- Metallic rulers for level indication in basins, rivers, harbours
- Mounting: vertical, or 45° angle
- Easy reading on large scale
- Resistant to corrosion, climate strengths and seawater
Level gauge
Level gaugeThe gauge JAR is designed for large metal tanks installed outdoors.
JAR is custom made, delivered in several parts for easy transport and installation on site. The graduated ruler is subject to an approval (drawing is sent before manufacture).
This level indicator includes a float and a pointer linked together with a cable running on 2 pulleys. The pointer is used as a counter weight; it slides along a graduated ruler, following the height of the liquid inside the tank. The graduated scale is fixed on the tank by means of adjustable and sliding tees and can be equipped with level switches.
Note: In the case of a pulley system, the indication is the inverse image of the level in the tank.
Applications
Level indication for large metal tanks (water storage, lubricant oil, etc.)
Features
- Metallic level indicator
- Height up to 15 m
- Graduated ruler in %, m³ or volume
- Protected pulleys with no-jump system
- Modular equipment
Technical
Operating limits
- Tank at atmospheric pressure
- Operating temperature: From 0 °C to 80 °C
JAR kit, base 2980 mm high, includes:
- 1 float, Ø 200 mm, AISI 316
- 6 m long cable, AISI 316, Ø 1 mm
- 2 cable clamps, AISI 316
- 1 pulley AISI 316, ruler top mounting, with a no jump system, protected in aluminum casing
- 1 pulley AISI 316, tank top mounting, with a no jump system, protected in
aluminum casing
- 2 transfer tubes AISI 316, Ø 12 mm, each 1 m long
- 1 pointer with built-in magnet, AISI 316, red painted
- 1 graduated ruler in aluminum
- 1 set of 3 sliding tees, adjustable depth
Options:
- Additional section of 1490 mm with 1 fixing tee
- Level switches (change over contact) BSM 501/J
Level gauge, reduced path
Level gauge, reduced pathThe indicator shows the level inside a tank, a float drives the pointer through a cable, along the graduated scale.
The reduced-path JAR-CR has its counterweight equipped with a pulley which reduces the run to the half distance of float course.
This level indicator includes a float and a pointer linked together with a cable running on 2 pulleys.
The pointer is used as a counterweight; it slides along a metallic graduated ruler; it has a pulley in order to reduce the course distance.
The graduated scale is fixed on the tank by means of adjustable and sliding tees, distance to tank adjustment from 70 to 150 mm.
The BSM 501/J contacts can be used and adjusted on the ruler for high and/or low level detection.
Applications
Reduced graduated ruler to visualize easily a large measuring height which is adaptable to different tank configurations.
Its all-metal design allows its use where plastics are prohibited or when ambient conditions are not compatible with them.
Features
- Metallic level indicator
- Half course run for easiest reading
- Graduated ruler in % or volume
- Protected pulleys with no-jump system
- Customized modular equipment
Cable and pulleys level indicator
Cable and pulleys level indicatorSFA level indicator includes a float and a balance weight linked together by cable running on 2 pulleys.
The counterweight is guided inside a transparent PVC tube (Ø 63 x 57) that allows an easy level reading.
The guiding tube is fixed with PE collars; it is equipped in option with PVC graduated ruler and / or level switches.
The float, suspended to a cable supported with 2 pulleys, drives a counterweight in the external transparent tube, showing level of liquid inside the tank. The balance weight has a built in magnet to actuate the level switches.
Features
- Easy to install
- Convenient to viscous, aggressive, waste liquids
- Up to 6 m high tanks
- Adjustable level switches
- Kits for ordering
Cable and pulleys, gas tight level indicator
Cable and pulleys, gas tight level indicatorThe SFA/E shows the level in a sealed storage tank. The equipment is designed for
liquids that emit harmful or corrosive vapors, or to protect the stored liquid from
external atmosphere.
The float, suspended to a rope (or cable) supported by 2 pulleys, drives a counterweight inside the guide tube, showing the level of the liquid. The pulleys are enclosed in PVC elbows with a no-jump system, thus ensuring perfect guidance of the rope. Elbows are connected together with a PVC transfer tube. The counterweight is guided in a tube Ø 63, tightly closed. The equipment fits on the tank with a loose flange DN 100 in PVC.
The guide tube is fixed through collars, and can support a PVC graduated ruler and/or level switches actuated by the magnetic counter weight
Applications
- Liquid storage (neutral, acidic or basic)
Features
- For storage tanks
- Gas tight indicator
- Protection from emitted vapors
- Works without power supply
- Options: Level switches; Graduated ruler
Level indicator, reduced path
Level indicator, reduced pathThe float, suspended to a cable supported with 2 pulleys, drives a counterweight inside the ruler made of PVC
The counterweight is suspended to a third pulley in order to reduce at half the path.
The ruler accepts level switches BRK, actuated by the magnet inside the counterweight.
Applications
SFA/CR is convenient for any level indication indide open tanks, on very deep tanks or to reduce indicating ruler length on top of a tank.
Features
- Convenient to a wide range of liquids
- Easy to install; Simple to use
- Reduced graduated ruler
- Guided float
- Adjustable level switches
Sets and kits
Sets and kitsThis level-measuring unit consists of a float and an indicator linked together by a cable on pulleys. The counterweight acts as an indicator. It is guided by a transparent PVC tube and follows the float immersed in the tank.
The SFA indicator is available in 2 variants :
- the standard non-gastight SFA system (open tank)
- the gastight SFA/E system (closed tank)
Smaller modules for lower transport costs !
The modules are designed to facilitate logistics and reduce packaging and transport costs. To avoid handling tubes longer than 2 meters, BAMO has developed a modular system with PVC connecting sleeves.
The standard (base) modular kit consists of a total tube length of 3.2m, delivered in 2 parts with a joining sleeve.
The basic kit can be completed with one or more 1.6 m extension modules, each supplied with its own adapter.
Finally, the last tube is cut to exact length on site before gluing.
Modular kits may be associated to:
• Standard non-gastight indicator SFA sets
open-air cable and pulley indicator
• Gastight indicator SFA/E sets
The pulleys are enclosed in PVC elbows with an anti-derailment system, ensuring perfect PPH rope guidance. Elbows are interconnected by a PVC tube (for solvent welding). Fitting to the tank is made with a PVC loose flange ND 100 PN 10/16 (other flange dimension on request). The gasket is not supplied.
Options : magnetic level switch
- One or more magnetic level contacts BSM can be positioned at the user's convenience along the transparent guide tube.
See datasheet 585-06
Options : Graduated ruler
- Graduated ruler is made on request according to user's requirements. A drawing is sent for approval before production.
The graduated rule will be supplied in as many parts as the number of SFA parts requested by the user. For single-part lengths only, you can opt for our non-modular SFA model
Applications
A float located inside the tank is connected, via a set of cable + pulleys, to a counterweight running in a transparent vertical tube outside the tank, which indicates the liquid level inside the tank.
The counterweight also has a built-in magnet to actuate level switches that can be added in option along the transparent tube.
Features
- Level indicator with float, counterweight, cable and pulley system
- Adapts to all tank heights
- Modules with reduced dimensions for easy carriage
- Kept in stock for rapid dispatch
- Easy on-site assembly
Graduated rulers for level indicators
Graduated rulers for level indicatorsGraduated rulers are manufactured to customer specifications and are subject to approval of a drawing. We propose an optimal scale (marks and values) for an easy reading and feasibility.
Standard units are: %; volume in litres, m³; height in cm; mass.
Supports
For indicators SFA SFA/E or other indicators with transparent PVC tube Ø 63 mm, supports are of U-shaped 70 x 35 mm white PVC.
For direct reading indicators GNR5, FS4, supports are of L-shaped 30 mm width, white PVC.
Rulers longer than 2.3 m
Unless otherwise specified, equipment with height greater than 2.3 m is supplied in two interlocking parts.
However, the equipment may be supplied in a single part not exceeding 4.6 m .
Position of marks
Unless otherwise specified, the scale marks are positioned on the left side of the ruler to fix it on the right side of the tube.
Applications
To install on:
- Level indicators with transparent tube, cable and pulleys indicators
- Level indicators with transparent tube for direct reading
- Transparent containers
Features
- High readability
- Weather and UV resistance
- Thermal transfer printed
- Scale units: %, litre, m³, cm, feet, etc.
- Black marks on white background
- White PVC profile, U shape 70 mm or L shape 30 mm
Tank top level indicator
Tank top level indicatorA float at the bottom of a stem moves a pointer inside a transparent PVC tube, outside the tank. The reading is direct through the transparent tube.
- Model FS4 Standard
The standard model is designed for tanks. For the float, the guiding tube has an
O.D. of 63 mm. The mounting is on the top of the tank, with a loose flange ND 65.
- Model FS4 fût
Model "Fût" is designed for drums and tanks of height less than 1000 mm. There is no guiding tube for the float; fitting is threaded. Reading tube comes with a graduated scale (one mark each 1 cm).
Each indicator is designed according the density of the liquid and height to monitor.
Note: liquid surface is at 70 to 80% of float height.
Option: Level switches
The pointer with a built-in magnet allows actuation of level switches BSM 501 or BRK60/32
Applications
- Level of clear chemicals or wasted liquids in opaque tanks, drums or underground tanks.
- Direct control of pumps, valves, alarm signals, with the use of level switches.
Features
- Direct reading
- Materials PVC, PPH
- Magnetic pointer for level switches
- For tanks and drums
Level controller
Level controllerA float at the bottom of a stem moves a magnet inside the head housing.
The fluid maintains the equipment (float, stem and magnet) in highest position (normal status).
When the fluid level is going down, the equipment comes in lowest position, down to block on stopper.
The switch BSM changes from normal status to alarm status (BSM: data-sheet 585-01).
To test the complete system, it is sufficient to push down the float to the lowest position or by draining part of the container. For a safe operating condition it would be better to test regularly the complete system.
Applications
- Level drop detection in tanks of surface-treating process
- Protection against overheating following evaporation or tank leaking, or default on chemical refilling
Features
- Lack of liquid detection (drop of level)
- Positive active detection
- Compact
- Easy to test its integrity on site
- Material: Or PPH or PVDF
Level Switches
Vibrating rod level switch
Vibrating rod level switchThe resonance of the bar is ensured by an electronic circuit. When the bar is covered by a granule or powder, the damping is detected electronically, and the measuring circuit activates a relay output.
Applications
The R-500/R-600 switch is a robust, corrosion-resistant device designed for level control of granular materials and powders such as carbon black, sugar, grains, cement, metal shavings, etc., with densities ≥ 50 kg/m³.
Features
- For powders and granules
- Self-cleaning
- Programmable relay output
- ATEX version II 1/2 D ta/tb IIIC T90°C...T170°C Da/Db
Model selection
Standard version:
Contactor used as an alarm in hoppers and silos.
This contactor has a rigid probe measuring 207 mm and is designed specifically for side mounting.
Rigid extension version:
Used for detecting high and low points, with vertical mounting (Medium-sized or abrasive particles with significant internal friction due to their
movement can damage the probe).
Flexible extension version (via cable):
Used for detecting high and low points (not recommended on large granules that could damage the cable).
The Ex (ATEX) option available meets the requirements of environments where the presence of particles poses an explosion risk.
Limit value switch
Limit value switchThe device is suitable for use with electrically conductive liquid whose impedance is < 5 kΩ or whose coupling capacitance to earth is > 50 pF. The liquids must not form insulating or conductive deposits.
BAMOSWITCH has two operating modes:
- MAX:
The output contact remains closed as long as the sensor tip is free.
- MIN:
The output contact remains closed as long as the sensor tip is touched by the liquid.
Applications
BAMOSWITCH is a limit switch for use in containers and collection pans for electrically conductive liquids.
Features
- All-plastic version
- For electrically conductive media
- Compact design
- Insensitive to shocks
- Calibration free
Float switches
Float switchesNIVOSTOP SS2 float switches are designed for level control in tanks and basins.
The cigar-shaped type is for insertion in tank with a hole of diameter 30 mm, for instance through the wall or the top of the tank.
The float switch rotates on one fixed point on its cable.
The float follows the level of the liquid.
The built-in contact switches at about 5 to 15° of angle below or above the fixed point.
The height of switching point depends on the length of the cable between fixed point and float.
Applications
- Limit switch
- Sewage lifting plants
- Filling / draining control of tank
- Lliquid level control in all industries
Features
- Mercury-free
- Fair cost
- Easy to install
- Compatible with chemicals
- Switching current 1 mA ... 3 A
Float level controller
Float level controllerOperation of NIVOSTOP® / C is identical to other detectors NIVOSTOP® with a built-in counterweight.
When the level is rising up, the tilting of the float actuates an integrated switch (connected to a controller in a control cabinet). The built-in counterweight allows the float not to rise to the surface nor to wrap around objects. The detector therefore remains immersed and switches in a small space.
Applications
The float level detector NIVOSTOP® / C is designed for use in aggressive liquids such as acid and base solutions compatible with PP, FEP and FPM.
Features
- For aggressive liquid
- Cable in FEP, seal in FPM, body in PP
- Temperature max. 100 °C
- Built-in counterweight
- Standard cable lengths: 5, 10 & 20 m
ATEX Float Switch
ATEX Float SwitchThe integrated switch is activated when the fill level increases. The built-in tipping weight guarantees that the float remains in place and does not float up. The NIVOSTOP PR2-EX remains in the fluid and switches even in the tightest of spaces.
The NIVOSTOP PR2-EX is a robust float switch with a sturdy neoprene cable, even for harsh operating conditions.
The plastics used dissipate electrostatic charges via the cables earth conductor.
Important: For use in ATEX-zones 0, 1 or 2, the use of an intrinsically safe safety barrier is mandatory (e.g. RAC 531 B or RDN11, see accessories).
Applications
For level monitoring in lifting and pumping systems in hazardous areas (ATEX) as "simple electrical equipment" in accordance with EN 60079-11
Features
- For liquids in hazardous areas (ATEX)
- Built-in counterweight
- Robust floating body
- High quality neoprene cable
- Cable lengths: 10 or 20 meters
Float level regulator
Float level regulatorNIVOSTOP® ECO is suitable for neutral environment conditions (clear water, rain water, etc.
Against the movement of the liquid, tilting of the float actuates a contact (output cable to connect to a control cabinet).
Applications
Level control of non-aggressive liquids:
- Automatic start and stop of a pump
- High and low level alarms
- Opening or closing a valve
Features
- For clear, non-aggressive liquids
- Economic model, easy to install
- Switching angle: 45°
- Regulation between 2 levels
- PVC cable, 10 m long
Float level switch
Float level switchThe NIVOSTOP HP4 detector is specially designed for use on clean or waste water, in small spaces and/or at relatively great depths (up to 40 meters).
The operating principle remains similar to that of the other products in the NIVOSTOP range, except that the ballast is not integrated into the envelope. The latter is optional and its use will depend on the application and service conditions.
Under the thrust of the fluid, the tilting of the float activates a contact connected to a control panel. Its fixing point, the added counterweight and the length of the cable make it possible to adjust the ON-OFF for switching in a small space.
The Nivostop HP4-xx-H05 features a large-diameter cable and a reinforced sealing system (two envelopes) for maximum durability and reliability in harsh environmental conditions.
Applications
Pump or alarm start/stop control in lift stations and wastewater pumping stations. Its compact size makes it particularly suitable for small spaces.
Features
- For wastewater and clear water
- Pressure up to 4 bar
- Robust (double shell) and compact design
- High-quality neoprene cable
- With or without mounting counterweight
Two shells to protect the switch:
- First sealed chamber
- Second sealed chamber
- Final thermoplastic seal
- EPDM rubber cable gland: tested at 5 bar
Counterweight (230g) :
It allows the float switch to operate with the same cable length at all times, even in turbulent waters, avoiding damage to the cable. It also stabilizes the movement of the float switch and effectively tracks level changes.
ACS (drinkwater) certified float level switch
ACS (drinkwater) certified float level switchThe operating principle of the NIVOSTOP ACS remains identical to that of the other products in the NIVOSTOP® range with integrated ballast.
Under the thrust of the fluid, tilting the float activates a contact connected to a control panel. Its built-in ballast prevents it from rising to the surface or wrapping itself around nearby objects. The detector therefore remains submerged and operates in a very small space.
This model features a large-diameter cable and a reinforced sealing system (three shells) for maximum durability and reliability in rough environmental conditions.
Coating made from non-toxic materials, suitable for use in the food & beverage industry and permanent use in drinking water.
Applications
NIVOSTOP ACS can be used for drinking water and food applications (water towers, aqueducts, drinking water fountains, beverages and food products, aquariums, fish tanks, etc.).
Features
- For drinking water
- Built-in ballast
- Extremely robust
- Ø 8.8mm cable
- Lengths: 10 or 20 metres
Magnetic float level switch
Magnetic float level switchThe operating principle of the NIVOSTOP ACS remains identical to that of the other products in the NIVOSTOP® range with integrated ballast.
Under the thrust of the fluid, tilting the float activates a contact connected to a control panel. Its built-in ballast prevents it from rising to the surface or wrapping itself around nearby objects. The detector therefore remains submerged and operates in a very small space.
This model features a large-diameter cable and a reinforced sealing system (three shells) for maximum durability and reliability in rough environmental conditions.
Coating made from non-toxic materials, suitable for use in the food & beverage industry and permanent use in drinking water.
Applications
Magnetic float level switches are used for level detection of liquids in all types of tanks.
They are perfectly suitable for use in condensate tanks, base tanks, storage tanks or to provide an alarm for low levels of lubricating oils or fuels.
Features
- For level of liquid on any kind of tanks
- Versions for neutrals, alkali or acidic fluids
- Versions for side or top mounted
- Fluid temperature: 250 °C Max.
- Explosion proof version available
Magnetic tracking float level switch
Magnetic tracking float level switchThe operating principle of the NIVOSTOP ACS remains identical to that of the other products in the NIVOSTOP® range with integrated ballast.
Under the thrust of the fluid, tilting the float activates a contact connected to a control panel. Its built-in ballast prevents it from rising to the surface or wrapping itself around nearby objects. The detector therefore remains submerged and operates in a very small space.
This model features a large-diameter cable and a reinforced sealing system (three shells) for maximum durability and reliability in rough environmental conditions.
Coating made from non-toxic materials, suitable for use in the food & beverage industry and permanent use in drinking water.
Applications
The NIVOPOINT magnetic float level switch is used on liquids for switching level points (high and low) or for triggering alarms (emptying, filling).
The NIVOPOINT series is only recommended for non-viscous liquids that are not sticky and do not contain any magnetic particles or suspended solids.
Features
- Made from Stainless steel
- 1 to 5 NO or NC contacts
- Maximum pressure: 25 bar
- Measurement height: 0.25 to 3 meters
- Option: ATEX approvals
Rotating paddle level switch
Rotating paddle level switchAn electric motor drives a paddle that rotates freely when no material is present. When the paddle is slowed down by the presence of material, it causes the motor to rotate slightly, compressing a return spring and triggering two contacts. One of the electrical contacts is used for control and alarm functions, while the other disconnects the motor power supply.
When the product level drops, the return spring restores the motor to its original position, reactivating the unit.
Applications
This sensor is suitable for level detection of granules, dust, and other free-flowing solids.
Mounted on silos or tanks, the DF11 operates effectively for level control, filling/emptying operations, and provides protection against overfilling.
These applications are found in the following industries:
- Food: Sunflower seeds, ground coffee, cocoa powder, flour, sugar, etc.
- Chemical: Plastic powder, granules
- Building: Sand, Cement, Plaster
- Energetic: Active carbon, Charcoal powder, Fly ash
Features
- For powders and granules
- Threaded fittings
- Extension: Up to 2000 mm
- ATEX options: Dust
Rotating paddle level switch
Rotating paddle level switchAn electric motor drives a rotating paddle in the absence of material. When material is present, it slows down the paddle, causing the motor to pivot within its housing, engage a return spring, and trigger two contacts. One is a dry contact dedicated to control and alarm functions, while the other disconnects the motor power supply.
When the product level drops, the return spring resets the motor to its original position, reactivating the unit.
Applications
This sensor is suitable for level detection on granules, dust, and other free solids.
Mounted on silos or tanks, the DF21 operates effectively for level control, filling/emptying operations, and provides protection against overfilling.
These applications are found in the following industries:
- Food: Sunflower seeds, ground coffee, cocoa powder, flour, sugar, etc.
- Chemical: Plastic powder, granules
- Building: Sand, Cement, Plaster
- Energetic: Active carbon, Charcoal powder, Fly ash
Features
- For powders and granules
- Resistant to high temperatures
- High pressure resistant
- Extension shaft: up to 1000 mm
- Threaded fittings or flanges
- ATEX options: Dust and Gas
Level controller
A float at the bottom of a stem moves a magnet inside the head housing.
The fluid maintains the equipment (float, stem and magnet) in highest position (normal status).
When the fluid level is going down, the equipment comes in lowest position, down to block on stopper.
- Lack of liquid detection (drop of level)
- Positive active detection
- Compact
- Easy to test its integrity on site
- Material: Or PPH or PVDF
Bistable level switch (Reed)
Bistable level switch (Reed)A Float or a counterweight with a built-in magnet, drives a Reed contact integrated to a PCB inside a casing in ABS, IP55. Electric connections are on screw connectors.
In addition to the counterweights or floats in the BAMO range, the contact can be attached to Ø 32, Ø 40 and Ø 63 level indicator tubes using the stainless steel collar. See the table Codes & references for compatibilities with actuators.
The contact is bi-stable, change-over with a switching capacity of 60 VA. The contact remains in position after the actuator (float or counterweight) passes in front of the BRK/ BRT. The contact returns to its original position only when the actuator passes back in the other direction.
Accessories: Relay ES 2001
- Relay ES 2001 increases the switching power of equipment.
- Pump or valve for filling or draining with 2 level contacts BRK plus 1 relay ES 2001.
Applications
Compatible with BAMO counterweights and floats:
- Remote alarm signals: Rising or drop of liquid level
- Pump automation with 2 BRK and 1 Relay ES 2001
These devices must not be used on vibrating machines or where there is a risk of shocks or vibrations.
Features
- Bi-stable, change-over contact
- For Ø 32 to 63 mm tubes
- Switching power: 60 VA
- Max. temperature 80°C
Bistable level switch
Bistable level switchA magnetic float or counterweight actuates a microswitch in the unit without contact.
When the float or counterweight passes the bistable switch, the toggle switch changes its position and remains in this position until it is passed again. The switch works with all floats and counterweights available from us.
It is designed for mounting on string level indicators type Stringline SFA..., sight glass level indicators type GNR5 / KNR or overhang level indicators type FS4.
Applications
- Limit value monitoring on containers and tanks
- For min-/max- control
- Overfill and dry run protection
Features
- Vibration proof
- Operationally reliable
- Movable
- With switch position indicator
- Up to pipe diameter 100mm
For SFA, GNR 5 and MAGTOP series
For SFA, GNR 5 and MAGTOP seriesUnit: %, height, Volume, Mass/Weight
- Any ruler with a length over 4.6 m is delivered in 2 parts.
(the fitting for assemble is included).
A complete set for your level indicators
Floats, magnetic counterweights and pulleys
- Fit the SFA, GNR 5 series and MAGTOP systems
Level Detectors / Controllers / Leak Detectors
Vibrating fork level detector
Vibrating fork level detectorThese detectors apply the principle of the tuning fork vibrating at a predetermined resonance under piezoelectric excitation. When in contact with the product, the frequency varies and causes the output relay to switch.
This simple and robust measurement system NIVOSWITCH, operates independently of the chemical and physical properties of the liquid. It works in difficult operating conditions as it is not affected by conductivity, clogging, turbulences, flows and air bubbles.
The sensor does not require any adjustment even with the change of liquid, or maintenance; It is supplied with one or two contact outputs.
Applications
NIVOSWITCH is used for level detection, overfill protection, leak detection or dry run protection of pumps. It is suitable for most liquids such as lime milk, solvents, oil, wine, etc.
Features
- Compact models for liquids
- 1 or 2 changeover contacts
- Continuous auto-diagnostic
- Unaffected by liquid properties
- Unaffected by turbulences
Vibrating fork level detector
Vibrating fork level detectorNIVASWITCH is easy to use and can detect most liquids. It works independently of electric conductivity, clogging, turbulences, flow-rate and air bubbles. The trigger point depends of the immersion depth.
Robust and compact, NIVASWITCH may be mounted vertically or horizontally. Easy to install, it does not require maintenance. Status of output is indicated by a bi-color (LED) and a function test is performed with a magnet
The alternative current output or digital output (NPN or PNP) can be connected to a PLC. As an option, the relays PKK (data-sheet 251-02) or LC1, allow to convert the output as a potential free contact signal.
Applications
NIVASWITCH is a liquid level detector. It is mainly used for overfill protection, leak detection or dry run protection of pumps.
Features
- Detection of level for liquids
- Continuous monitoring
- Operating even with turbulences
- Unnecessary calibration routine
- Operating even with suspended solids
Float level detector
Float level detectorOperation of NIVOSTOP® PR2-H05 is identical to other detectors NIVOSTOP® with a built-in counterweight.
When the level is rising up, the tilting of the float actuates an integrated switch (output cable to connect to a control cabinet). The built-in counterweight allows the float not to rise to the surface nor to wrap around objects. The detector therefore remains immersed and it switches in a small space.
The cable PR2-H05 is of a large diameter, sealing system is reinforced (3 envelopes) which gives to the detector a great reliability and durability under severe operating conditions
Applications
Automation of pump or alarm level for sewage pumping and lifting stations of wastewater.
Features
- For wastewater
- Built-in counterweight
- Robust design
- High grade Neoprene cable
- Cable lengths: 6, 10, 15 or 20 m
Side level controller
Side level controllerThe lateral level controller CNL, consists of a float fixed to a shaft which end has: or a magnet on metal models, or a magnetic float on PPH models
The float is moved by the liquid and the magnet acts on a reed contact isolated from the liquid.
Applications
Automation of pump or alarm level for sewage pumping and lifting stations of wastewater.
Features
- Versions: Brass, AISI 316, PP
- Small size
- Tank side mounting
- 1 contact
Side level controller
Side level controllerThe VAFLO regulates automatically, the high level of water, without power supply.
The system is simply mechanical: When the level rises, the float causes the closure of the water inlet nozzle
The level adjustment is possible within 120 mm when mounting the system.
Applications
Regulation of water filling level in a tank.
Features
- Autonomous system
- Level controller
- Adjustable height
- Float in Polyester or in PPH
Technical
- Adjustable float stroke within 120 mm
- Standard flow rate: 1800 l/h with 1 bar – Pressure limit: 6 bar
- On request Q=3600 l/h with 1 bar – Pressure limit: 4 bar
Fittings
- Or male thread BSP 1/2''
- Or flange ND 15 /PN 10 (for flat gasket)
Level controller
Level controllerThe liquid, as it rises in the open tube at the bottom, increases the pressure of the trapped atmosphere. The pressure variation acts on a diaphragm that directly activates a contact. The level controller SNR 4, affords a dirt liquid as far as this one does not clog the measuring tube. Threshold is adjustable.
NOTE: The inner atmosphere can diffuse through the diaphragm; It is necessary to renew the atmosphere (fresh air) every three months.
Applications
RLevel control for open tanks or without pressure.
Features
- PVC or stainless steel versions
- Hydrostatic level detection
- Output: 1 contact
- For liquids (chemically compatible)
- Independent of conductivity, viscosity
Resistive level controller
Resistive level controllerThe ES2001 resistive level controller principle use the electrical conductivity of the liquids properties; The liquid provides an electrical bridge between the immersed electrodes.
Operating limits
Resistive level controls are not suitable for liquids that contain oil or grease or when electrically insulating deposits can occur on the electrodes.
Detection limits
ES2001 controller can be used with liquids whose resistance between the electrodes is less than 150 kΩ (consider also the resistance from cable length).
Features
- For electrically conductive liquids
- Settings for sensitivity, delay and operating modes
- Compatible with our resistive level probes
Applications
- Control of Min./Max. level of electrically conductive liquids
- Monitoring of a level point (overflow/dry run alarm) with double electrode.
- Fill or drain automated operation
- Level limit controller for water, waste water, acids, alkalis
- Level regulation (filling/draining) between 2 thresholds (3 rods)
Resistive level detector
Resistive level detectorThe RXM detects the difference of resistance between the detection electrode and the reference electrode when the liquid comes into contact. The reference can be the wall of the metal container or a second electrode.
To carry out this detection, a DC voltage of 12V is applied between the electrode and the reference.
The value of the resistor to detect varies according the liquid and distances to cover between the electrode and the reference.
Limit detection adjustment:
The detection limit of the RXM is defined as the maximum value of the resulting resistance of the product for which the detection can occur.
- The detection limit is adjustable between 4.7 to 100 MΩ.
- Take care to use the specific coaxial cable (Ref. CCA) to connect the electrodes to the relay RXM.
- The detection limit potentiometer is accessible after taking off the transparent plastic lid.
Resistive probes:
Choose the right probe according to operating conditions and the chemical compatibilities (liquid, pressure, temperature, etc.).
Features
- For liquids with low conductivity
- Detection range: 4.7 MΩ up to 100 MΩ
- Limit detection adjustment on the front
- Detection between 2 electrodes
- 100 % compatible with our level probes
Applications
Level control Min. or Max. of highly resistive liquids: Demineralized water (5 to 20 MΩ), Glycerine (≈ 1 MΩ), etc.
Floor leak detection
Floor leak detectionThe resistive level detector, associated to a resistive relay, detects the variation of resistor value caused by the presence of a conductive liquid between two electrodes. This variation generates an alarm signal via a resistive relay.
With the integrated resistor (680 kOhm), the ES5000 relay secures the detection loop by detecting any cable break or short circuit.
Applications
- Control of presence or not of conductive liquid on the floor
- Monitoring in technical room, computer room, etc.
- Detection in retention basins, underground cable trays, etc.
Features
- Static floor water detector
- Integrated resistor for detection loop monitoring, with ES5000 relay
Resistive level probes
Resistive level probesElectrical resistance variation, caused by the presence of a liquid between two electrodes, converted by level relay as ON/OFF signal.
Electrode length is adjusted according to distance of trigger point.
Each probe has three parts:
- Cast aluminum head (IP 55) with screw terminals and cable gland (Excepted on MINITEV)
- Fitting: AISI 316 L with PTFE insulator(s).
- Electrodes: AISI 316 L, 1 to 4 electrodes (according the model) at necessary length.
Electrical connection: with end tip to the terminal.
A ground connection is available inside the housing IP55.
Applications
- Level control or regulation, on open tanks or closed tanks, piping, open channels, etc.
- Detection of presence or lack of liquid (leaks, empty piping, dry run detection for pumps).
Features
- For all electrically conductive liquids
- 1 to 4 electrodes
- Materials: Metals - PTFE
- Pressure up to 200 bar
- Temperature up to 220 °C
- Fittings or BSP or NPT
- Connection head in aluminum
Resistive level with flexible probes
Resistive level with flexible probesProbes HE and HS, hanged electrodes, are to be in use with relays ES2001 for detection of liquid levels in storage tank.
Depending on the model, up to 5 levels can be detected (5 trigger points using the wall tank as a reference electrode). Provide a reference electrode if the tank is made of insulating material (i.e. up to 4 level detection + 1 reference).
This technical solution is not suitable for liquids with hydrocarbons or grease or for any other application where an insulating layer is liable to deposit on the electrodes.
Flexible probes are recommended for tanks with a height greater than 1000 mm.
Features
- For electrically conductive liquids
- Level detection probes to use with ES2001 control relay
- From 1 to 5 probes
| Fitting material | HE: PP |
| HS: PVC | |
| Cable | HE: Flexible PVC |
| HS: Special cable coated with PES | |
| Housing | PBT, glass fiber reinforced |
| HS probe body | PVC |
| Ambient temperature | -20 ... +60 °C |
| Liquid temperature | HE version: 0 ... +60 °C, |
| HS version: Depends of chemical resistance of PVC and PES | |
| Pressure | 0.5 bar (Immersion depth Max. 5 m with SG = 1) |
| Protection | IP 65 according EN 60 529 |
| Minimum for cable lengths L1 & L2: | HE: 0.3 m |
| HS: 0.2 m | |
| Maximum for cable lengths L1 ... L5: | 25 m |
Level electrodes for wells
Level electrodes for wellsA low current is sent into a so-called reference electrode. When the liquid is in contact with the reference and the level electrode (trigger point), the current passes through the conductive liquid. This short circuit is detected by a relay ES 2001 that activates a contact to trigger an alarm (remote signal).
EF 16 electrode is a single contact electrode.
EFC 16 electrode is a dual-contact electrode, the outer body is used as the reference. No needs to provide a special ground connection. Measuring current returns through the shield of the coaxial cable connected to the outer body.
Applications
Due to their designs and small dimensions, theses electrodes are suitable for the control of the presence of fluid in wells (pump protection) as well as for level control in large reservoirs, barrages, etc.
Features
- Compact electrodes
- All stainless steel
- For conductive liquids
- Supplied with or without cable
Water detector in diesel tank
Water detector in diesel tankThe detection is based on the variation of electrical resistance caused by the presence of water between the two electrodes of the probe. This variation is converted into a signal On/Off by the relay ES 2001.
The probe must be placed inside, at the bottom of the tank and connected to the ES 2001 relay.
Applications
Water detection at the bottom of diesel storage tanks
Features
- Water detection
- Small dimensions
- Cable, 5 m long
- To use with a relay ES 2001: 1 relay output (alarm)
Resistive level probes
Resistive level probesThe STS level probe with a relay ES 2001, detects a level of a conductive liquid.
The longest electrode is used as the reference. The electrical contact occurs when the reference electrode and another electrode are both in contact with the liquid. Then, the current in detection loop provoques through the relay ES2001, an amplified ON/OFF signal (see data-sheet 530-01).
Acid resistant materials:
With Hastelloy G30 electrode ends and PVC or PVDF stems, the STS probes are useful for level control of most acids.
Other electrode ends such as Tantalum, other stem materials (PTFE or PPH), are available on request.
Applications
Level control of electrically conductive and corrosive liquids:
- Metal finishing industry
- Control of presence or absence of liquid (leak detection, empty piping etc.)
- Pump automation (fill or drain) with ES 2001 relay
Features
- For aggressive and conductive chemicals
- PVC or PVDF
- Up to 5 electrodes
- Custom manufacturing
- Fixed alarming level
Liquid Intrusion Safe Alarming System
Liquid Intrusion Safe Alarming System- Detection of flood, leakage, presence of water or moisture in exposed area or special environment.
- LISA system combines a detector (linear or point) with a relay dedicated to this application, the ES 5000.
The ribbon detector consists of two metal wires connected at the end by a resistor and insulated by an absorbent fabric.
The special material used for the ribbon, contains ionic ingredients, which allow detection of demineralised water.
This flexible ribbon is placed in all positions and fits all shapes.
As soon as there is humidity somewhere on the ribbon, the relay detects the change of resistivty and switch on the alarm signal, even before a significant amount of water could be find out.
The relay ES 5000 includes a self diagnostic of the integrity of measuring loop (alarm in case of short circuit, or ribbon sensor break off) in order to warrant a positive safe detection system.
Applications
The LISA system is dedicated for leakage detection of water distribution (pipes, sprinklers) and alarming in case of water, condensates or humidity in areas where water is prejudicial for equipments (Computer rooms, machinery, power plants, medical equipments, HVAC, museum, stores, etc.).
Features
- Detection of water leaking (1 drop is sufficient)
- Alarm signal before flooding
- Self diagnostic of measuring loop integrity, LED display (Short circuit or ribbon sensor break off)
- Protection of equipment and exposed areas
- Suitable to any surface
Installation
The ribbon is applied on any horizontal or vertical surface/ support for monitoring an area, or, the one point detector is used for a local detection.
The ribbons is fixed on the ground with a special adhesive, or wrapped round a pipe or a valve.
An adequate grid of the area will allow to locate the leak.
Depending on the system and expected monitoring result, one or more detectors will be used with one or more relays.
After an alarm and repair of the leakage, the ribbon sensor is easily dried out without dismantling it.
Relay for resistive level detection
Relay for resistive level detectionThe relay ES 5000 operates on the conductive principle; The electrical conductivity liquid is used as an electrical bridge between the wet electrodes/ sensor.
Restrictions
Conductive level controllers are not suitable for liquids that are oily or greasy, or where electrically insulating deposits stick on the electrodes.
Detection ranges
The system can be used for liquids whose resistor value between the electrodes is less than 150 kΩ, or whose conductivity is greater than 6.6 μS/cm
Level control
Pump automation with 3 electrodes.
Monitoring of a level and/ or overflow, dry-running alarm, with 2 electrodes (Metal container structure may be used as the reference electrode).
Leakage detection
In use with a LISA ribbon sensor or BES detector, the relay ES 5000 allows a leakage detection on floor or piping.
This function is fail safe: The relay has an auto-diagnostic which signals any cable break or short circuit.
The diagnostic function of detection loop can be disabled through a DIP switch.
Note:
The diagnostic function is not available for pump automation with 3 electrodes.
Applications
Remote signal, with corresponding electrodes/ sensor, for monitoring:
- Levels of water, sewage, acids, alkalis
- Leak detector
Features
- For electrical conductive liquids
- Level control or leakage detection
- With integrity detection loop diagnostic
- Adjustable sensitivity, hysteresis and delay
Floor leak detector
WM25 leak detectors are used for monitoring water leaks in rooms and retention basins
The sensor detects non-aggressive and electricaly conductive liquids such as water.
Installed on the floor, WM25 triggers the alarm as soon as the liquid reaches the electrodes.
The adjustment screws allow to adjust the detection height.
Applications
Leak detection of water in:
- Retention basin
- Sub-floor
- Double ceiling
- Under cooling piping, etc
Features
- Easy installation
- Robust and economical
- Built-in relay 60 V / 0.5A
- Power supply 24 V DC
- Adjustable height of detection
Leak localizer and detector
BAMOLEAK allows to secure work areas where leaks are prejudicial for equipments, by detecting and precisely locating leaks of conductive liquids.
The sensor (cable) is laid along the monitored area or pipeline, and, connected to the evaluation unit.
Leakage is detected by the converter, which determines, records and reports information via the analog output, relays and the RS485 Modbus interface.
Two complementary detectors can be connected to the converter such as MAXITOP LWC (Detection in double-walled tank) or LWC-B (Local floor detector).
Note: BAMOLEAK can locate one leak at a time.
Applications
- Building automation
- Datacenters
- Semiconductor Industry
- Clean rooms
- Archives storage / Libraries / Museums
- Heating and air conditioning systems
- Switching centers, computers room
Features
- Leak localization
- Length up to 3,000 metres (12 areas)
- Automatic recognition of loop parameters
- Event recording (date / time)
- Outputs: 4-20 mA, MODBUS RTU, relays

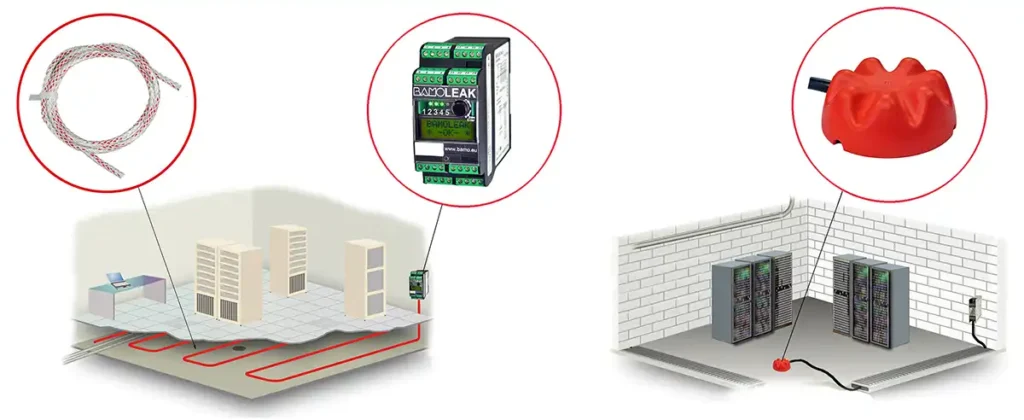

Illustration of installations below
Magnetic Level Controllers
Magnetic Level ControllersThe Reed contacts (up to 4) inside the stem, are actuated directly by the magnet float. Wet parts (stem and float) to choose between: or PVC & PP, or PP, or PVDF
Quick commissioning:
- Distance of each contact from sealing surface is fixed (requested on P.O.): No adjustment requested on site to guarantee the exact positioning of contacts.
- The PP float passes through the BSP 2'' fitting without dismantling the MNR.
- At the stem bottom a nut limits the float movement: By unscrewing it, the float may be removed.
Note: It is recommended to provide the optionnal flange ND100 to allow the PVDF float to pass through the fitting.
Recommendations:
The use of a relay ES2001 (data-sheet 250-02) will protect the Reed contact and increase its switching power and lifetime.
Applications
- Level controllers for liquids, even aggressive ones, not viscous, not clogging and free of suspended solid particles.
Features
- Versions in: PVC, PP or PVDF
- 1 to 4 level changeover contacts
- Fitting 2'' for standard models
- No effects of foam, neither of vapours
- Measuring height: up to 2500 mm
Version with float Ø 91 and option flange DN 100
Magnetic Level Controllers in stainless steel
The Reed contacts inside the stem are actuated when the magnetic float passes in front of; Detection of up to 4 thresholds.
The contacts are changeover and bistable: status reverses only when the float passes again in front of.
Terminals are in an aluminium housing, IP 65 (cable gland M20 x1.5); Wiring diagram is shown on the board inside. A nut limits the float movement at the stem end: by unscrewing the nut, the float is easily removed.
Tip: The 2 "connection model with Ø 52 mm float and the DN 100 flange option, allow direct installation without removing the float.
Recommendations:
The use of a relay ES2001 (data-sheet 250-02) will protect the Reed contact and increase its switching power and lifetime.
Applications
- Level detection on liquids compatible with stainless steel (MNR 7-I is suitable for liquids, not viscous, not clogging and free of suspended solid particles).
Features
- AISI 316 L version
- 1 to 4 changeover bistable contacts
- Insensitive to foams and vapors
- Continuous output version with magnetic transmission
Magnetic level controllers
Magnetic level controllersReed contacts are adjusted at factory according requested trigger points on purchase order; They are actuated by the magnetic float.
Wet parts are in PVC, PPH, PVDF or stainless steel (see further on detailed versions).
Quick commissioning:
Trigger point distances are determined prior to manufacture in relation to the sealing surface, in order to ensure the correct position of the contacts. The float can be removed from the bottom of the MNR6 controller (end stop ring removed). it is usefull to order the option 2'' coupler or a flange NB 50 to allow the float introduction from the tank top when possible.
Recommendations:
The use of a relay ES2001 is recommended to protect the Reed contact by a low intensity current in the loop and to procure a great longevity to the device.
Applications
- Pumps and solenoid valves automation, low and high alarm signals, overfill detection, etc.
- The MNR 6 series is recommended for non-viscous, non-sticky liquids and without magnetic particles or suspended solids.
Features
- Versions: PVC, PPH, PVDF or AISI 316
- 1 or 2 changeover contacts
- Reduced dimensions
- No effects of foam and vapours
- Measuring height: Up to 1500 mm
Compact overfill sensor
Compact overfill sensorThe MAXIMAT VK C are level limit switches which are used for containers of water-polluting liquids to prevent an overfilling; When liquid lift up, the integrated electronics reacts to the float rising and its permanently output signal is interrupted.
By interrupting the signal once the permissible limit of filling is exceeded, the associated system control may interrupt the filling process and acoustically and visually trigger an alarm.
The alarm is triggered from an immersion depth of 50mm (dependent of density).
Applications
Overfill protection according to the Water Resources Act (WHG) on containers for storage, Filling and handling of water-polluting liquids.
Features
- General building authority approval from DIBt: Z-65.11-355
- Integrated transmitte
- Float actuator
- Wide chemical compatibility
- Wide choice of signal interfaces:
- Signaling device MAXIMAT TC4
- PLC digital or analogue
- Coupling relays KRC or CST
- Transmitter MAXIMAT SHR
- Suitable for non-flammable liquids with a density of at least 0.7 kg/dm³
Measuring transducer
Measuring transducerThe MAXIMAT SHR CS measuring transducer is used as power supply, current band monitor and alarm relay.
It serves in combination with the overfill sensors and leakage sensors included in the MAXIMAT VK..., MAXIMAT LW... and MAXIMAT C... series, as well as MAXITOP... limit switches, as part of overfill inhibitors and leakage detection systems.
Applications
For connecting
Overfill sensor per German Water Resources Act (WHG):
- MAXIMAT C...
- MAXIMAT VK...,
Leakage sensor (WHG):
- MAXIMAT LW C…, LW...
Safety probe:
- CAPSYTRON SFL...
Limit switch:
- MAXITOP…
Features
- Measuring transducer for overfill inhibitors and leakage detection systems
- 2-wire measuring circuit
- Relay output with potential-free double changeover contact
Alarming unit for MAXIMAT and MAXITOP
Alarming unit for MAXIMAT and MAXITOPMAXIMAT TC4 is a signaling device for up to 4 overfill prevention devices or leakage detectors of MAXIMAT C ... series, with optical and acoustic signals according to the approval principles for overfill prevention devices (ZG-ÜS).
If an alarm signal is issued by one of the MAXIMAT C ..., it is signaled optically and acoustically by the MAXIMAT TC4.
Applications
Signaling of alarms at:
- Storage tanks
- Up to 4 monitored tanks
- Etc.
Features
- Up to 4 detectors MAXIMAT C... Series
- Optical and acoustic signals, in conformity with overfill prevention devices (ZG-ÜS)
- Automatic probe detection and testing
- Wire break monitoring
- Function ''Test'' of the entire system
Compact Leak Detection Probe
Compact Leak Detection ProbeThe MAXIMAT compact leak detector probes are designed to signal leaks in tanks containing water-hazardous liquids. When the float rises in a liquid, the integrated electronics respond and output a signal.
This signal is suitable for interrupting the filling process in due time before the permissible fill level is reached and for triggering audible and visual alarms.
An alarm is triggered at the latest at an immersion depth of 50 mm (depending on the liquid density).
Applications
Leak detector probe in accordance with the Water Resources Act (WHG) for installations used to store, fill, and handle water-hazardous liquids.
Features
- Suitable for liquids with a density of at least 0.7kg/dm³
- May be used in Category 3 (Ex Zone 2) when combined with a Zener barrier or Ex galvanic isolator
- Also suitable for electrically non-conductive media
- Float principle
- For connection to the MAXIMAT SHR C transmitter
Relay for MAXIMAT
Relay for MAXIMATThe MAXIMAT CST is used for delivering power supply to the:
- MAXIMAT C ...,
- MAXIMAT LW ...,
- CAPSYTRON series.
A signalling, control and/or actuating device can be activated with the relay output.
Applications
To connect with:
- Overfill detector: MAXIMAT C
- Leak detector: MAXIMAT LW...
- Level limit switch: CAPSYTRON
Features
- Power supply to a MAXIMAT
- Output: Changeover relay
1 Channel alarm unit
1 Channel alarm unitMAXIMAT TC1 is a signaling unit for overfill and leakage detectors MAXIMAT (X series) and MAXITOP. The detector is powered directly by TC1 unit.
The built-in buzzer provides local alarm to the operator, and the LEDs inforrm visually about the alarm status. The audible alarm is acknowledged through the push-button on the right side.
Applications
Alarm signalling device for:
- Containers for storage of liquids, in safe area
- Retention basins, piping
- Tanks and collecting basins
Features
- Alarm unit, 1 channel, for: MAXIMAT CX & and MAXITOP series, overfil and leak detectors
- Optical and acoustic alarms (> 75 dB)
- Diagnostic of detection loop
- Relay output, changeover contact
- Robust and inexpensive
1 Channel alarm unit
1 Channel alarm unitMAXIMAT TC1-B is an optical and audible alarm unit for dry-contact detectors.
The built-in buzzer provides local alarm to the operator and the LED inforrm visually on the alarm status. The audible alarm is acknowledged with the push-button on the right side.
Applications
Alarm signalling device for:
- Containers for storage of liquids, in safe area
- Retention basins
- Tanks and collecting basins
Features
- Alarm unit, for 1 dry-contact detector
- Optical and acoustic alarms
- Alarming until acknowledgement
- Output relay : Changeover contact
- Robust and inexpensive
Compact overfill detector
Compact overfill detectorThe detector MAXITOP is designed to prevent overfilling of tanks. It detects conductive liquids (acids, alkalis) with a reactance below 5 kOhm and a coupling capacitance towards ground of more than 50 pF. In no case should liquids form insulating or conductive deposits.
The MAXITOP has 4 different possible interfacing connections:
- Direct connection to a 4 channels alarm unit MAXIMAT TC4
or 1 channel unit MAXIMAT TC1 - Direct connection to a PLC
- For relay output and loop diagnostic with a MAXIMAT SHR
- For relay output with a MAXIMAT CST
Applications
The MAXITOP monitors the overfilling of a tank with electrically conductive, non-flammable liquids, even highly aggressive liquids.
Example : Storage tanks for caustic soda (NaOH), hydrochloric acid (HCl), etc.
Features
- Wet parts in plastic materials
- For aggressive and conductive liquids
- Fail safe; Auto-diagnostic with SHR relay
- Fitting: Adjustable depth
Leak detector
Leak detectorThe detector MAXITOP is designed to detect the presence of liquids (acids, alkalis) with a reactance below 5 kOhm and a coupling capacitance towards ground of more than 50 pF.
In no case should liquids form insulating or conductive deposits.
The MAXITOP LW C has 4 different possible interfacing connections:
- Direct connection to a 4 channels alarm unit MAXIMAT TC4
or 1 channel unit MAXIMAT TC1 - Direct connection to a PLC
- For relay output and loop diagnostic with a MAXIMAT SHR
- For relay output with a MAXIMAT CST
Applications
With its integrated positive safety converter, the MAXITOP is ideal to give an alarm when a leakage occurs from storage tank for electrically conductive, non-flammable liquids, even highly aggressive liquids.
Features
- Capacitance detection loop
- For aggressive and conductive liquids
- Fail safe; Auto-diagnostic with SHR relay
- Wet parts in plastic materials
- Safe: no electrode touching the fluid
On-line leak detector in double-walled piping
On-line leak detector in double-walled pipingThe MAXIMAT LW CX SDR compact leakage sensor are designed to detect leaks in double-walled pipings with water-polluting liquids.
When an electrically conductive liquid comes into contact with the detection sensor, the integrated electronics respond by interrupting the continuous output signal. This signal can be read out from the system controller as acoustic and optical alarm.
Applications
Leakage sensor in accordance with the German Water Resources Act (WHG) for double-walled pipings to store, bottle and turn over water-polluting, electrically conductive, non-flammable liquids.
Features
- All-plastic versions
- Integrated transmitter and connection for test button
- No moving parts
- For aggressive and conductive liquids
- NPN / PNP interface
Leak detector on floor
Leak detector on floorMAXITOP LWC-B is designed to detect conductive liquids with a reactance of up to 5 kOhm/cm and when the coupling capacitance towards ground is more than 50 pF. The liquids may not generate electrical insulating or conductive deposit.
MAXITOP LWC-B has 5 different types of connections:
- Contact output, low voltage (Max. 50 V AC/DC; Max. 0.5 A; Max. 10 VA)
- Relay output, adding a relay converter CST
- Output relay, adding a relay converter SHR
- Direct connections to a PLC
- Signalling events on site, with devices TC4 or TC1
Applications
The MAXITOP LWC-B is ideal to give an alarm when a leakage occurs on the floor of retentions or collecting areas. With its fail safe detection loop, it is permanently operational.
Features
- Capacitance detection loop
- For aggressive and conductive liquids
- Fail safe; Self diagnostic of loop integrity with SHR or TC4 or TC1
- Wet parts in plastic materials
Compact overfill detector
Compact overfill detectorMAXIMAT CX compact overfill detectors are level limit switches which are used to prevent overfilling of containers with water polluting liquids. When an electrically conductive liquid comes into contact with the detector stem, the integrated electronics respond by interrupting the continuous output signal.
This signal can be read out from the system controller as an acoustic and optical alarms and, if required, can be used to cause en emergency shutdown of the filling process.
Applications
Overfill detector in accordance with the German Water Resources Act (WHG) for containers used for storing, filling and handling water-polluting, electrically conductive, non-flammable liquids.
Features
- All-plastic versions
- Integrated transmitter and connection for test button
- No moving parts
- For storage tanks
- NPN / PNP interface
Compact leak detector
Compact leak detectorMAXIMAT LW CX compact leak detectors are used to detects leakage of containers, outside the container, leaks of water polluting liquids. When an electrically conductive liquid comes into contact with the detector probe, the integrated electronics respond by interrupting the continuous output signal. By interrupting the signal, audible and visual alarms are triggered.
Applications
Leak detection in accordance with the German Water Resources Act (WHG) for double-walled containers and retention in use for water-polluting, electrically conductive, non-flammable liquids.
Features
- All-plastic versions
- Integrated transmitter and connection for test button
- No moving parts
- For retention on storage tanks
- NPN / PNP interfaces
On-floor leak detector
On-floor leak detectorMAXIMAT LWC BX compact leak detectors are used to detect leakage or spread water polluting liquids. Due to the short detection height of liquid, about 1mm, even a smal leakage quantity is reliably detected.
The device is used for leakage detection of water polluting media.
Applications
Leak detection in accordance with the German Water Resources Act (WHG) for retention basins and floors where are in use water-polluting, electrically conductive, non-flammable liquids.
Features
- All-plastic versions
- Integrated transmitter and connection for test button
- No moving parts
- Floor leak detection
- NPN / PNP interfaces
Dry run protection
Dry run protectionThe CAPSYTRON TLS is designed for empty tube detection. It avoids hammer effects when filling a tank.
It is designed to detect the presence of liquids whose reactance is even whose coupling capacity to earth is > 50 pF. In no case should liquids form insulating or conductive deposits.
Applications
- Protection against dry run; Detection of empty pipe
- Prevents hammer effects when air is compressed in the pipe.
Features
- Wet parts in plastic materials
- Compact probe
- Plug for function test
- Switches when pipe is empty
- No moving parts
Electronic gauge for diesel
Electronic gauge for dieselThe gauge INTERNIV 590, is in immersion in the liquid. The hydrostatic pressure is proportional to the depth of immersion.
Pressure is measured on the diaphragm, differential with atmospheric pressure is assumed through a capillary tube all along the cable. A built-in amplifier convert the measurement in a 4-20 mA signal.
This amplifier is protected against short circuits and reverse polarity for a safe installation.
Precautions:
Installation of gauge INTERNIV 590 is simplest by use of a fitting on tank and/or a junction box BJSC.
The probe may be freely suspended.
It is recommended not to let the probe laying down on the tank bottom to avoid deposits on the diaphragm.
Junction box BJSC, pressure compensated, hold the gauge (cable is secured) and a vent filter allows the balance with atmospheric pressure.
BJSC is highly recommended to protect the gauge cable.
A complete measuring system includes:
- 1 Gauge INTERNIV
- 1 Display module:
BAMOWIZ: Digital and graphical display (data-sheet 217-01)
ITU: Versatile indicator (data-sheet 222-04)
BMG 72: Galvanometric indicator (data-sheet 206-01)
- 1 Tank fitting, and, 1 holder
Applications
The level gauge INTERNIV is dedicated for continuous level measurement of fluids in storage tanks, opened to atmosphere and with a fill height up to 3 m.
The gauge is perfectly adapted for monitoring and control of diesel level in storage tanks.
The optional display module allows the operator to read instant level and to set up level alarm thresholds.
Features
- For storage tanks of diesel (fuel oils)
- Measuring ranges: Up to 3 m
- Output signal: 4-20 mA, power 8 ... 32 V DC
- Compact, robust probe (stainless steel)
- PVC cable compatible with diesel
Level Transmitters
Continuous level transmitter
Continuous level transmitterThe RTM transmitter consists of a Reed chain (REED contacts connected by resistors) switching when magnetic float passes in front. The resulting resistor value is directly in correspondence with the level. The necessary magnetic field is created by the MNR 6/7, MAGTOP floats or SFA counterweight.
The T2F transmitter in the head converts the resitor value into a 4-20 mA signal.
Manufactured according to your application; Installation and commissioning are simplified on site (factory calibration).
Measurement display: The RTM may be connected to a BAMOWIZ or to an ITU unit.
Applications
- Continuous level measurement on containers
Features
- Output signal: or 4-20 mA or resistor
- Customized models
- Direct mounting on top of a tank
- Direct mounting on MAGTOP and SFA series
2 Channels, 4 thresholds, Relay
2 Channels, 4 thresholds, RelayThe two-channel measuring amplifier EVEREST 214S is a processor-controlled display device for DIN rail mounting. It has a built-in timer; It supplies 2-wire sensors with 24 V DC voltage. It allows a simple conversion of analog signals to limit values remote controls. Free scalable inputs and relays allows a wide domain of application.
- 4 adjustable thresholds, one is available as a timer
- Adjustable hysteresis
- 24 V DC power supply to 2 sensors
- 2 Inputs 4-20 mA
- Built-in timer: 1 s up to 24 h, e.g. for venting operation on MEMPRO
Ultrasonic level transmitter for liquids
Ultrasonic level transmitter for liquidsBAMOSONIC is a high performance ultrasonic compact sensor with integrated transducer. This high reliable sensor is supplied by the 4-20 mA loop.
Installed on the tank roof, or above the liquid surface to be measured, the transmitters give analogue output proportional to liquid level BAMOSONIC is recommended for liquid level measurement in sumps or tanks, for tank contents measurement, or open channel flow measurement.
Four keys provide for programming.
With the help of the N-DIS plug-in display a full-parameter programming can be accomplished, the parameters of measurement and output can be set using the alphanumeric display module.
Applications
BAMOSONIC measures continuously the level of liquid in a tank, without contact with the liquid.
- Storage tanks
- Weirs and open channels
- Waste water lifting units
Features
- Measuring range from 0.2 to 8 m (liquids)
- Non-contact level measurement
- Power supply by 4-20 mA Loop
- IP67 Ingress protection
- Option : Plug-in display
Hydrostatic level transmitter
Hydrostatic level transmitterThe MEMPRO works according to the hydrostatic pressure measuring principle.
The output signal corresponds to the pressure of the atmosphere inside the measuring tube; The ceramic sensor is not touched by the liquid.
Applications
Continuous level measurement for:
- Pressure-free containers
- Aggressive liquids
- Storage tanks
- And more
Features
- Continuous level measurement
- The sensor is not in contact with liquid
- Reliable even with aggressive, viscous, dirty or crystallizing liquids
- Stable measurement with a venting module
- High measuring accuracy
Hydrostatic level controller, 4 switching points
Hydrostatic level controller, 4 switching pointsThe MEMPRO S6.6 works according to the hydrostatic pressure measuring principle. The output signal corresponds to the pressure of the atmosphere inside the measuring tube.
The ceramic sensor is not touched by the liquid. On site, with the automatic calibration function, the instrumend is paired to the tank size in a matter of minutes. Four trigger points can be assigned to level heights through the setting menu. All switching points have an adjustable delay time, an adjustable hysteresis and a switchable N.C./ N.O. function.
For a clogging or degassing liquid, or when the temperature fluctuates, the MEMPRO must be connected to a venting device (MEMPRO BL). The timer for venting function is integrated in the MEMPRO.
Applications
- Universal level control for pressureless containers
- For aggressive fluids
- Storage container monitoring
- Batching operations
- And more
Features
- 4 Adjustable relay outputs, N.O. or N.C.
- The sensor is not in contact with liquid
- Adjustable hysteresis and delay time for each channel
- Automatic calibration for max. level
- Integrated timer for the venting function
Hydrostatic level transmitter
Hydrostatic level transmitterThe NIVAPRESS SGE25 probe is immersed in the liquid. The pressure on the sensor increases proportionally with the depth of immersion.
The pressure is measured at the immersion depth of diaphragm, connected to atmosphere through a capillary inside the cable. The active sensing element is a piezoresistive type isolated by a very strong hastelloy diaphragm. An electronic amplifier operating in connection with the sensor, converts the measurement into a 4-20 mA or 0-10 V analog signal.
The anti-surge circuit protects the instrument from damages caused by atmospheric disturbances or high power devices.
Applications
The NIVAPRESS SGE-25 hydrostatic level probe can be used to measure the level of clear liquids and wastewater stored in tanks, deep wells, or piezometers.
This sensor is especially recommended for monitoring and controlling submersible pumps and wastewater lifting stations.
Features
- Measuring ranges up to 500 m H₂O
- Probe: AISI 316 L
- Diaphragm: Hastelloy
- Protection against overloads
- ATEX or DNV certification
Installation diagram (Non-ATEX)
Once lowered to the reference level, the probe can either hang freely from the cable or rest at the bottom of the tank.
Installation precautions:
The junction box BJSC with pressure compensation, allows to fix the sensor and ensures the balancing of atmospheric pressure through an integrated vent on the front of the housing. It significantly reduces the risk of dust and moisture entering the device. It is also recommended to extend the life of the probe cable.
The cable can be extended using a standard signal cable. For connecting longer cables, we recommend using the additional wall-mounted surge protection box, BPS 102.
Junction box, atmospheric pressure balanced
Junction box, atmospheric pressure balancedThe fixing of the suspended sensors is carried out by means of the cable gland, centered below the fitting. For aggressive chemicals, it is recommended to use the model BJSC-A with a PVDF cable gland.
A vent filter on the front of housing, insures a good balance with atmospheric pressure for hydrostatic level sensors.
BJSC includes inside the head:
- A cable tie to secure the cable.
- A terminal with screw connectors on a PCB to connect the sensor cable and the extension cable to PLC
Applications
BJSC is designed to hold cable suspended sensors.
With its integrated atmospheric pressure balanced housing, it is convenient for hydrostatic level sensors NIVAPRESS, INTERNIV and BAMONIV.
Features
- Head housing in PBT
- Screwed tap
- Protection IP 65
- Filtering aerator for atmospheric pressure balance
- Fitting BSP 2''
TDR Level transmitter
TDR Level transmitterA TDR transmitter is working as a Time Domain Reflectrometry application. Electromagnetic micro-pulses emitted along the stem and moving at the speed of light
These micro-pulses are reflected by the surface of the stored liquid. The electronics then measures the traveling time and converts it into distance. Micro pulses are moving only in the tank atmosphere; gaseous atmosphere or vacuum do not interfere on the measurement.
Features
- Transmitter ''TDR'' 4-wire
- Continuous measurement (output 4-20 mA)
- Scalable ranges:
- Rigid stem version: up to 3 m
- Flexible stem: Cable from 1 to 20 m
- Coaxial stem: Up to 6 m
- Pressure: -1 to 40 bar
- Accuracy: ± 3 mm
- ATEX versions: II 1/2 G – II 1/2 D ou II 2 G – II 2 D
Operating Features
BAMOFLEX probe must be mounted vertically and fixed on tank with its fitting. A BSP ¾'' is supplied with a KLINGERSIL® seal.
Rigid stem and flexible cable versions:
These versions are applicable to a very wide range of applications on liquids.
Probes must not touch or come into contact with objects inside the tank, or tank walls.
Flexible cable version is recommended for length over 2 m, limiting the cost of transport or when free space above tank is limited for the installation.
Its performance characteristics and mounting are similar to the rigid stem version.
Coaxial stem version:
This probe is without installation restrictions regarding its mounting position/ fitting and the possible presence of nearby wall or other objects located inside the tank.
This version is recommended for installation in non-metallic tank, or open tank.
Commissioning:
The basic configuration can be done directly on the device via DIP switches, a push button and a LED.
All the settings required to make it operational can be made directly on it.
The electronics are galvanically insulated between their inputs/ outputs and the potential of the tank, thus avoiding any problem of electrochemical corrosion on the tank.
ATEX AGREEMENTS:
These TDR transmitters are available for hazardous areas:
- categories 1/2 G, 1/2 D or 2 G, 2 D
Hydrostatic level transmitter, PVDF
Hydrostatic level transmitter, PVDFBAMONIV is designed for level measurement on aggressive, viscous or contaminated liquids in non-pressurized tanks.
It operates according to the principle of hydrostatic pressure measurement. The pressure on the sensor increases proportionally with the height of liquid. BAMONIV integrates ceramic cell and delivers a 4-20 mA signal proportional to the level.
To be mounted at the bottom of a non-pressurized tank; BAMONIV to be ordered or with a connector or with a cable output (PVC cable).
Applications
- Diesel, lubricating oils
- Viscous, pasty liquids
- Corrosive, acids and bases liquids
Features
- Level measurement on aggressive fluids
- Measuring cell: ceramic (96 %)
- Accuracy: 0.35 % F.S.
- Ranges from 0..0,6 mWC up to 0..10 mWC (Water Column)
- Fitting 1 ½" in PVDF
Hydrostatic level transmitter
Hydrostatic level transmitterBAMONIV-TPS is designed for hydrostatic level measurement in aggressive media that is clear or slightly contaminated. Wet parts are of PVDF or PP, the seal of FPM and the cable of FEP.
It measures the level according to the principle of hydrostatic pressure measurement. The probe is suspended with its cable, down to the tank bottom. The probe is in immersion in the liquid and delivers a 4-20 mA signal proportional to the immersion depth.
Applications
- Chemical industry
- Electroplating plants
- Waste water plants
- Neutralization process
Features
- Level measurement of aggressive liquids
- Measuring cell: ceramic (99.9 %)
- Accuracy: 0.35 % (option: 0.25 %)
- Measuring ranges up to 50 m Water Column
- Body: PVDF or PP
Air bubbling level transmitter
Air bubbling level transmitterBAMOBUL level sensor is wall mounting; housing protection IP 55, including a pressure sensor, an electronic amplifier and an air generator.
Pneumatic connections are of quick coupling type for 6 x 4 mm RISLAN tubing.
- Level measurements on open channel flumes
- Flow rate and totalization on effluents
- For foaming and charged fluids
- Directly link with the BAMOPHOX 759
- Range from 0 500 mm WC
- Air generator with flow rate regulation
- Accuracy ± 1 %
- 4-20 mA analogical output
Ultrasonic level transmitter
Ultrasonic level transmitterEasyTREK is a high performance ultrasonic transmitter with integrated electronics into the housing.
Positioned above the surface of the liquid to measure, the transmitter provides a signal proportional to the liquid level. The sensor is set up via the HART protocole.
For multiple tank applications, EasyTREK may be operated via ancillary control systems compatible with this protocol HART 7 (examples: multichannel MultiCONT or PC or PLC). The MULTICONT can manage up to 15 transmitters EasyTREK. Data transmission is then possible through the RS485 interface of display unit (data-sheet 225-01).
Setting features with HART modem:
- Range scaling (4-20 mA and default error current)
- Measurement settings (Unit, function, echo(es)
- Measuring sequence optimization (delay, speed ...)
- Choice between 14 shapes of tanks and containers
- Choice between 21 types of open channels
- Linearization through 32 points
- Information and diagnostics on signal status
Applications
The EasyTREK allows continuous measurement of a liquid level (storage tanks, Venturi channels, weirs, sewage pumping stations, storm receivers, etc.).
Features
- Height range 0.15 to 18 m, for liquids
- Non-contact level measurement
- HART® 7 protocole
- Output signal 4-20 mA
- IP 68 (allows accidental immersion)
Safety systems for oil-water / grease-water separators
Oil/Light liquid separator monitoring
Oil/Light liquid separator monitoringThe NivOil monitoring system is used with oil/light liquid separators. It is used to monitor the level of the accumulating oil/light liquid layer, the maximum accumulation level in case of blockage of the drainage system and, if applicable, the sludge layer settling on the bottom.
Up to a maximum of three monitoring probes can be connected to the sensor power supply unit - type: NivOil CU (BVS 07 ATEX E 090).
The oil probe - type: NivOil OP (BVS 07 ATEX E 091 X) detects the oil/light liquid layer floating on the water.
The high level probe - type: NivOil HP (BVS 07 ATEX E 092 X) detects a blockage of the drainage system.
This alarm can inform that drainage is blocked.
The alternative high level probe - type: NivOil HPS (BVS 09 ATEX E 021 X) detects a blockage of the drainage system. An alarm signal is triggered as soon as the inflowing water has reached a level that is to high.
The sludge level probe - type: NivOil SP (BVS 09 ATEX E 021 X) detects whether a sludge layer has grown on the bottom of the separator. As soon as the sludge level has reached the too high level an alarm signal is triggered.
All probe inputs are self-configuring.
Therefore, one of the three different intrinsically safe probe types can be connected to each of the three intrinsically safe channels of the power supply unit (NivOil CU). The unit detects which intrinsically safe probe type is connected to which channel and activates the corresponding LED on the front panel.
If a channel is not assigned, its LEDs also remain switched off during operation. The unit has a built-in horn. If necessary, it can be deactivated with DIP switch 1.
Applications
Monitoring of oil/light liquid separators.
Features
- Status and alarm signalling
- Automatic probe recognition
- 3x alarm relay output
- Audible alarm signalling
- EU type-examination tested
Solar powered, autonomous alarm unit for oil-water separators
Solar powered, autonomous alarm unit for oil-water separatorsA BBS system includes alarm unit NivOil CU/12 and a Solar panel to charge a battery, protected against excessive discharge or overload. NivOil is powered hourly, for 3 minutes, to check for a fault and alarm condition. In case of occuring an alarm, signal is emitted or through a flashing light or through a GSM module.
The working time without sunlight is about 12 days at any period of the year for a reliable monitoring even without sun shining days (referring to Greenwich latitude).
Option: Flashing light
With the option flashing light, an alarm corresponds to an intermittent light emission (of a Xenon bulb) on the outside of the cabinet. This option is recommended to avoid connecting the NivOIL contact outputs far-away minimizing the cost of installation.
Option: GSM
With the option GSM, the alarm is transmitted on long distance through a SMS message: idoneous when the system is installed in a remote location. The message SMS sent, indicates the BBS identification, the alarming channel (probe) and a pre-recorded message.
Installation:
The cabinet may be mounted on a wall or on a poll (Yoke U-Bolt Kit provided). The solar panel, with its own fixing system, is adjustable regardless of the position of the cabinet.
The BBS must always be mounted outside the hazardous area. Only NivOiL probes can be installed in the hazardous area.
Applications
Autonomous alarm unit for monitoring oil-water separators according to EN 858.
Features
- Monitoring of oil-water separators
- Autonomous complete system
- Field installation
- Alarm signal: or flashing light or GSM
- Battery protection against discharge and overload
Level detection for oil-water separators
Level detection for oil-water separatorsThe RAC 531 A monitoring system is used for oil/light liquid separators. It is used to monitor the level of the accumulating oil/light liquid layer
An oil probe of type NivOil OP (BVS 07 ATEX E 091 X) is connected to the RAC 531 A control unit. The probe detects the layer of oil/light liquid floating on the water.
The device signals the respective alarm new/old and OK status with three LEDs and has built-in cable break and short-circuit monitoring. RAC 531 A has a built-in horn. The buzzer can be disabled by the user.
Applications
Level monitoring of hydrocarbon liquids in oil-water separators.
Features
- Level monitoring of the accumulating oil/light liquid layer
- Relay output, change-over contact
- Acoustic and visual alarm
- Easy installation
- Cost-effective solution
Acoustic and visual alarmLevel detection for grease-water separators
Level detection for grease-water separatorsGAD 531 and probe GP/10 are designed for monitoring grease-water separators. The probe GP/10 detects when the thickness of floating grease is overpassed.The GAD 531 signals the status of the system with 3 LEDs:
Normal operating - Current alarm - Alarm occured; Still not reset
The alarm device has an auto-diagnostic of the probe, detection loop and of device integrity.
An audible alarm is built-in the unit. The buzzer may be disabled through a jumper if necessary.
Components of one system:
- Alarm unit GAD 531
- Detection probe GP/10 (cable output, 10 m long)
Caution: Not suitable for greases in emulsion neither semi-solid / solid aggregates !
Applications
For monitoring the grease layer thickness in separators according to EN 1825-1, EN 1825-2 and 4040-100.
Features
- Compact and economical model
- Monitoring of grease-water separators
- Relay output; Changeover contact
- Audible and lighting LED alarms
- Cable break and short circuit monitoring
Flow Controllers
Paddle flow controllers
Paddle flow controllersThe CDP operates a switch outside the liquid: The flow drives the paddle. A magnet on top of paddle actuates a Reed contact, located outside the fluid. The reverse movement of the paddle is generated by a leaf-spring.
These controllers offer a simple, reliable and inexpensive solution for flow monitoring in pipelines.
CDP controllers are mounted in-line, pipes up to ND 50 with a Tee, BSPF threads. For larger diameters, CDP must be mounted on-line, on an adaptor BSP ½'' female thread.
Applications
Detection of presence or absence of flow of a liquid in a pipe under pressure.
The liquid must be free of magnetic particles.
Features
- 1 Reed contact N.O. / N.C.
- Stainless steel or brass versions
- Low pressure drop
- Fittings: On tee up to ND50 or BSP ½''
Paddle flow controllers
Paddle flow controllersThe flow of liquid drives the paddle which actuates a Reed contact via a magnet mounted on top of the paddle.
A second magnet in opposition, pushes back the paddle when flow is decreasing.
This design allows the controller to be mounted in any position.
Mounting precautions:
Mounting could be on a vertical pipe with ascending flow; Then, threshold value will be greater than the one of table.
The pipe slope of a flowing down piping must be less than 40 %.
Applications
Detection of the presence or not of flow in a pipe under pressure. The liquid must be free of magnetic particles.
Features
- For clear liquids
- Stainless steel or brass versions
- For pipes from ND 50 up to ND 200
- Mounting on-line, fitting with loose nut BSPF ½''
Paddle flow controller
Paddle flow controllerA pallet mounted perpendicular to the flow, actuates a changeover switch.
Applications
The CDP-P is designed to control a flow-rate in water piping.
Mounting
The threshold ranges listed are for water at 20 ° C with horizontal pipe.
Mounting could be on a vertical pipe with ascending flow; Then, threshold value will be greater than the one of table.
The pipe slope of a flowing down piping must be less than 40 %.
Adjustable paddle flow controllers
Adjustable paddle flow controllersThe CDSP 25 operates with a combination of a paddle and a diaphragm.
The flow pushes the paddle, which actuates a switch.
It is easy to change the length of the paddle to adapt the controller to a flow range for a specific diameter.
The trigger point as well is adjustable.
The electrical part is encapsulated and is thus isolated from the liquid.
Models CDSP 25 - FI or FL are designed for the low flow-rates.
Mounting
CDSP 25 operates in all positions.
The flow direction is engraved on the body.
CDSP's fitting is NPT 1'' male thread.
It comes with 4 paddles to use according the pipe diameter.
When mounting on vertical piping, the mass of the paddle must be compensated by acting on an internal adjusting screw.
When mounting upside down, the liquid may not contain impurities that could concentrate around the protection of the axis.
Upstream and downstream straight distances must be equal to 5 times the inner diameter of the pipe.
Adjustment
The number of paddle is related to the diameter of the pipe; Adjustment by adding a paddle on the first one, and so on.
The controller is set at the factory at the minimum flow rate; the trigger point is increased by adjusting screw, clockwise.
Applications
Flow-rate control for piping systems where a minimum flow rate is necessary, maximum safety (chillers, coolers, lubrication, pump protection, etc.)
Features
- For clear liquids
- On-line mounting; ND 25 to ND 200
- Stainless steel or brass versions
- Up to 11 bar: brass; Up to 30 bar: AISI 316
- Adjustable trigger point
- Liquid temperature: -40 ... +120 °C
- Ambient temperature: Max. 85 °C
- Potential free contact
Flow controller
Flow controllerThe BV series controls the flow-rate in a vertical pipe with ascending flow; Liquid must be free of particles.
The fluid passing through the controller, from bottom to top, drives a diver with built-in magnet which actuates an external Reed contact, adjustable all along the body. The cylindrical diver moves inside a tube perforated with conical slots.
The upper edge of the float indicate the flow rate.
- The scale is graduated in l/min of water.
- The setting of trigger point is possible over the entire measuring range.
- The actual flow-rate can be greater than the high range without damaging the device (it results in a higher pressure drop).
These controllers must be installed far from any magnetic induction.
Applications
Control and indication of flow-rate in pipings (cooling, lubricating, etc.) or in any compatible skids.
Features
- Vertical mounting
- 1 Indicator + 1 adjustable contact
- Material: stainless steel or brass
- Pressure limit 10 bar
- Temperature limit 100°C
- Flow ranges within 0.1 ... 50 l/min
Flow controller
Flow controllerThe BR series controls the flow-rate in a vertical pipe with ascending flow; Liquid must be free of particles.
These blind-type controllers accept high operating pressures. The fluid passing through the controller, from bottom to top, drives a diver with a built-in magnet which actuates an external Reed contact, adjustable all along the body. The cylindrical diver moves inside a tube perforated with conical slots. The setting of trigger point is possible over the entire measuring range.
The actual flow-rate can be greater than the high range without damaging the device (it results in a higher pressure drop).
These controllers must be installed far from any magnetic induction.
Applications
Control of flow in cooling, lubricating piping systems or in any compatible skids.
Features
- Vertical mounting
- 1 adjustable contact
- Material: stainless steel or brass
- Pressure limit: up to 300 bar
- Temperature limit 100°C
- Flow ranges within 0.1 ... 50 l/min
Flow controller
Flow controllerThe analogue transmitter ''SIG 4.0'' works on the principle of Hall effect. It detects the position of the magnetic diver or orifice plate of the controller and delivers a signal proportional to the flow rate. The ''SIG 4.0'' is supplied fitted and secured onthe flow controller, already set up.
Note:
Refer to flow controller specifications for mounting recommendations. The transmitter '' SIG 4.0 '' must not be removed from the flow controller.
Available with following flow controllers:
- BR
- CDA
- DUM
- DKM
Applications
Continuous monitoring of flow rates on cooling, lubricating systems, and more.
Features
- For flow controllers
- Output: 4 ... 20 mA or 0 ... 10 V
- Accuracy: ±10 % FS
- Already set in factory
Flow controller
Flow controllerBMV series: to control and indicate the flow-rate in a vertical pipe with ascendiong flow; The liquid must be free of particles.
The solid-state body accepts high operating pressures. The liquid drives a magnetic diver inside a perforated tube (conical slots) which actuates an external analogue display on the side of device.
The magnetic coupling insures that indication can not be lost whatever the speed of rise of the diver.
At the same time, the magnetic diver actuates a N.O. contact (open without flow).
Applications
Control and indication of flow-rate in pipings (cooling, lubricating, etc.) or in any compatible skids.
Features
- Vertical mounting
- Flow indicator with 1 adjustable contact
- Material: Brass or AISI
- Pressure limit up to 300 bar
- Temperature limit 100°C
- Flow ranges within 0.1 ... 50 l/min
Flow controller
Flow controllerThe CDA controls the flow, on a vertical or horizontal pipe, of a liquid free of particles.
Operation
An orifice plate with a magnet is pushed by the fluid to monitor, in a cylindrical tube.
A compensating spring insures the equilibrium of plate and allows the mounting in any position. A Reed contact is adjustable all along the scale, its status changes with the passage of the magnet. With these equipments, the CDA operates independently of the pressure, even in low flow rates.
Applications
Cooling circuit monitoring, high pressure washing piping, dry-run pump prevention, etc.
Features
- Operates in all positions
- With 1 adjustable contact
- Versions: Stainless steel or brass
- Pressure: Up to 350 bar
- Ranges: between 0.005 ...150 l/min
- Temperature limit 100°C
Flow controller
Flow controllerThe CDV flow indicator is used to monitor and visualize the flow-rate of a fluid free of suspended particles.
Operation: The fluid drives a magnetic orifice plate inside the cylindrical measuring tube. A spring balances its movement and allows to operate in all positions. The upper edge of the diver corresponds to the flow-rate on the graduated scale (in ml/min or l/min). A Reed contact, N.O. with no flow, is adjustable all along the scale, its status changes with the passage of the plate.
With these equipments, the CDV operates independently of the pressure, even in low flow rates.
Applications
Control and indication of flow-rate in cooling, high pressure pipings, dry-run pump prevention, etc.
Features
- Operates in all positions
- Flow indicators, plus 1 flow contact
- Versions: Stainless steel or brass
- Pressure max. 16 bar
- Flow ranges from 0.005 up to 150 l/min
- Temperature limit 100°C
Flow controller
Flow controllerAn orifice plate equipped with a magnet (piston with magnet) is subjected to the pressure of the fluid to be monitored within a cylindrical tube. A compensated spring balances the movement of the piston and allows operation in any mounting position. The piston is visible through a graduated glass tube. A bistable reed switch, normally open when there is no flow, is mounted on an external sliding rail and is actuated by the passing of the magnetic piston.
- The top edge of the float serves as the reading reference point.
- The scale is graduated in l/min of water (20°C)
- The switch setting can be adjusted throughout the entire measuring range thanks to the sliding guide.
- The actual flow rate may exceed the calibrated range without damaging the device, though it will result in higher pressure loss.
These devices must be installed on fluids free of suspended particles and away from any magnetic induction sources.
Applications
The SKM is designed for monitoring cooling circuits, high-pressure washing circuits, pump safety, etc.
It can measure water, oils or other liquids flowrate independently from the alignment of the device.
Features
- Operates in any position
- 1 Switch plus flow-rate indicator
- Connections : 1.4571 stainless steel or nickel-plated brass
- Pressure up to 10 bar
- Ranges: From 1.5 ... 4.5 up to 30 ... 90 l/min
Flow controller
Flow controllerThe DKM controls the flow of a liquid, free of suspended particles, having a viscosity between 30 and 600 cSt.
Operation:
The fluid drives a magnetic orifice plate inside the cylindrical measuring tube. A spring balances its movement and allows to operate in all positions. A Reed contact, N.O. without flow, changes of status with the passage of the magnetic orifice plate.
With these equipments, the DKM operates independently of the pressure, even with low flow-rates.
Applications
Control of flow-rate in lubrication pipings or in any compatible skids.
Features
- Operates in all positions
- Blind controller, 1 contact
- Versions: Stainless steel and brass
- Pressure up to 350 bar
- Temperature limit 120°C
- Viscosity: 30 ... 600 cSt
- Flow ranges from 0.5 up to 90 l/min
Flow controller
Flow controllerThe DKM/A monitors and indicates the flow in piping of a fluid free of suspended particles and with a viscosity between 30 and 600 cSt.
Operation: The liquid drives a magnetic orifice plate inside the cylindrical measuring tube. A spring balances its movement and allows to operate in all positions. An adjustable Reed contact changes of status with the passage of the magnetic orifice plate and drives the indicator pointer. The magnetic torque coupling performs in such a way that the indication can not be lost even with fast changing of flow speed.
With these equipments, the DKM/A operates independently of the pressure, even with low flow-rates.
Applications
Control and reading of flow-rate in lubrication pipings or in any compatible skids.
Features
- Operates in all positions
- Indicator, plus 1 adjustable contact
- Versions: Stainless steel and brass
- Pressure up to 300 bar
- Viscosity: 30 ... 600 cSt
- Flow ranges from 0.5 up to 90 l/min
- Temperature limit 120°C
Flow controller
Flow controllerThe DKG monitors and visualizes the flow in pipe of a fluid free of suspended particles, having a viscosity of between 30 and 600 cSt.
Operation: The liquid drives a magnetic orifice plate inside the cylindrical measuring tube. A spring balances its movement and allows to operate in all positions. The plate is visible through the glass tube graduated in litre per minute. An adjustable Reed contact changes of status with the passage of the magnetic orifice plate.
With these equipments, the DKG operates independently of the pressure, even with low flow-rates.
Applications
Control and reading of flow-rate in lubrication pipings or in any compatible skids.
Features
- Operates in all positions
- Indicator, plus 1 adjustable contact
- Stainless steel and brass versions
- Pressure up to 16 bar
- Viscosity: 30 ... 600 cSt
- Flow ranges from 0.1 up to 90 l/min
- Temperature limit 120°C
Flow controller
Flow controllerThe DUM controls the flow of a liquid, free of suspended particles, having a viscosity substantially equal to water.
Operation: The fluid drives a magnetic orifice plate inside the cylindrical measuring tube. A spring balances its movement and allows to operate in all positions. A Reed contact, N.O. with no flow, changes of status with the passage of the magnetic orifice plate.
With these equipments, the DUM operates independently of the pressure, even with low flow-rates.
Applications
Control of flow-rate in cooling systems, high pressure washing circuit, pump safety, etc.
Features
- Operates in all positions
- Blind controller, 1 contact
- Independent of pressure
- Pressure up to 300 bar
- Flow ranges from 0.2 up to 250 l/min
- Temperature limit 100°C
Flow controller
Flow controllerThe DUG controls and visualizes the flow in a pipe of a fluid free of suspended particles.
Operation: The liquid drives a magnetic diver inside the cylindrical measuring tube. A spring balances its movement and allows to operate in all positions; The DUG series is convenient for fluids with a viscosity similar to water one. The flow-rate is directly read on the graduated glass tube.
Applications
For flow monitoring in cooling circuit, pump protection, etc.
Features
- Operates in all positions
- Indicator, plus 1 adjustable contact
- Versions: Stainless steel or brass
- Pressure up to 10 bar
- Flow range: 0.2 ... 250 l/min
- Temperature limit 100°C
Flow controller
Flow controllerThe DUM/A controls and visualizes the flow in a pipe of a liquid free of suspended particles.
Operation: The liquid drives a magnetic orifice plate inside the cylindrical measuring tube. A spring balances its movement and allows to operate in all positions. An adjustable Reed contact changes of status with the passage of the magnetic orifice plate; which drives the pointer on indicator.
With these equipments, DKM/A operates independently of the pressure, even with low flow-rates.
The magnetic coupling insures that indication can not be lost whatever the speed of rise of the diver.
Applications
The DUM/A is designed for cooling piping monitoring, high pressure washing systems, dry run pump protection, etc.
Features
- Operates in all positions
- Indicator, plus 1 adjustable contact
- Versions: Stainless steel or brass
- Pressure: up to 300 bar
- Flow ranges: 0.2 ... 250 l/min
- Temperature limit 100°C
Piston flow monitor
Piston flow monitorThe devices are equipped with a spring-loaded piston located in a cylindrical measuring tube.
When the liquid passes through the STAN-K, the piston changes its position in proportion to the flow rate. The flow rate to be monitored is set using the adjustable limit switch on an external scale. The flow rate to be monitored is set using the adjustable limit switch on an externally applied scale.
Type series:
STAN-K Brass body
STAN-K-VA Stainless steel/Inox body (1.4571)
Applications
The piston flow monitor STAN-K is used to monitor the volumetric flow of water, oils or other liquids independently from the alignment of the device.
Features
- Vertical or horizontal installation
- With adjustable limit switch
- Stainless steel or brass version
- Compact design
- Measuring range 0,1 ... 150 l/min
- For water, oils and liquids
Piston flow indicator
Piston flow indicatorThe device is equipped with an orifice plate containing a magnetized piston, placed in a cylindrical tube. The piston is driven by the fluid to be measured and balanced by a compensated spring, enabling reliable operation in all positions.
A magnet integrated into the piston transmits its movement to a remote mechanical needle indicator, providing instant visualization of the flow rate on the scale.
A bistable reed contact, normally open when there is no flow, is mounted on an external slide and closes when the magnetic piston passes. The contact trigger point can be set across the entire measuring range.
The actual flow rate may exceed the set measuring range without damaging the device, but this will increase the pressure loss.
These devices must only be used with fluids that are free of particles and away from any magnetic influence.
Applications
STAN-P piston flow meters are used to measure and control the flow of water, oils, or other liquids.
Their operation is independent of their mounting position.
Features
- Horizontal or vertical mounting
- Instantaneous flow rate reading
- With adjustable contact
- Stainless steel or brass version
- Operating pressure up to 50 bar
- Measuring range: 0.2...150 l/min
| Medium temperature | -20 ... +90 °C |
| Measuring unit | l/min |
| Measuring accuracy | 10 % FS (full scale) |
| Pressure loss | 0,02 ... 0,4 bar (G1") |
| 0,02 ... 0,3 bar (G½") | |
| Brass version: STAN-P-K | |
| Max. operating pressure | 50 bar |
| Display | Stainless steel 1.4301 (304) and flat glass |
| Body, connections, piston | Brass |
| Spring | Inox 1.4571 (316Ti) |
| Magnet | Ferrite |
| Stainless steel version 1.4571: STAN-P-K-VA | |
| Max. operating pressure | 50 bar |
| Indicator | Stainless steel 1.4301 (304) and flat glass |
| Body, connections, piston | Inox 1.4571 (316Ti) |
| Spring | Inox 1.4571 (316Ti) |
| Magnet | Ferrite |
| Other designs available on request | |
Orifice plate flow controller
Orifice plate flow controllerThe device works according to the principle of differential pressure which is proportional to the square of the volume rate of flow through the pipeline. The series DDW integrates an orifice plate inside an armature for wafer mounting or with threaded fittings. The DS31 controller contains a rugged and uncomplicated diaphragm system. The differential pressure generates a force which moves the diaphragm system against the measuring spring. The resulting displacement activates a micro switch. The user sets the switch point within 30 to 100 % of the flow scale.
The reliability of the measurement depends of the flow behaviour at the measuring point.
The region of steady flow should covers piping distances of 6 DN upstream and 4 DN downstream of the device.
Several versions in steel, stainless steel or brass are available: DDW-DN Wafer mounting for flanges acc. DIN EN 1092-1
DDW-Gi Female threads acc. DIN EN ISO 228
DDW-Ga Male threads acc. DIN EN ISO 228
DDW-Rp Unions acc. DIN EN 10226-1 (ISO 7-1)
Applications
These orifice plate flow controllers are designed for flow monitoring of water, lubricating oils, neutral liquids. They cover a large range of piping diameters
Features
- For liquids
- From ND 40 to 200, or ¼'' to 2''
- Horizontal or vertical installation
- Liquids flow monitoring of water, lubricating oils, neutral liquids
- Microswitch, changeover
Flow Indicators, Flowmeters, Open Channel Flowrate
Flap spring-loaded type flowmeters
Flap spring-loaded type flowmetersThe flow indicator KFS is used to evaluate flows in piping from DN25 up to DN600.
Each flow indicator is calibrated according to customer requirements and equipped with a scale specific to the medium.
The measuring cell includes a flap spring-loaded moved by the medium. The angle of rotation of the flap changes according to the flow. A magnetic coupling transfers the movement to a pointer on a dial (Fig. A).
The KFS series proposes two types of local indicators.
- KFS Standard: Stainless steel case with bayonet lock.
- KFS-M40: M40 case with output: 4-20 mA and Totalizer
Options: Contact outputs
For process control purposes, the measuring device can be equipped with contacts, inductive or Reed type. Each contact (max. 2) is adjustable over the entire measurement range.
Option: Analogue output 4-20 mA
A transmitter is added: 4-20 mA; 2-wire; Signal is proportional to the flow-rate.
It is factory calibrated; no calibration needed on site.
The calibration values are stored in a memory chip.
The transmitter is protected against reverse polarity.
Applications
On-line visualization of the instantaneous flow rate in multiple fields: Watertreatment, chemical industry, industrial processes, etc.
The measurement is independent of viscosity and is suitable for indicating the flow of water, alkaline solutions and gases.
Features
- For gases and liquids
- DN 25 to DN 600
- Carbon steel, Stainless steel, PVC, PPH, PVDF
- Horizontal or vertical mounting
- Independent of viscosity
- Outputs: 4-20 mA, contacts, totalizer, ATEX version
Flap-type flow-meters
Flap-type flow-metersThe KLA series flow-meter is based on the same operating principle as the KFS series. Inside the meter a flap moves up and down in analogy to the amount of liquid flowing through.
In the KLA-GS version the quantity is directly indicated by the flap; The flow meter is equipped with hard glass screens at the front and at the back. The flow-rate reading is done on an integrated scale into the front hard glass screen.
The economical version KLA Standard provides a direct visual display.
In both versions a magnet transmits the movement of the flap to a pointer in the
case.
For process control, the measuring device can be equipped with:
- 1 or 2 inductive contacts
- 1 analogue transmitter, 4-20 mA output: angular position transducer (The signal must be linearized).
Applications
A flap-type flow-meter is ideal wherever a rugged, reliable and economical device is required for visualization and monitoring of flows.
Features
- For liquids
- From ND 15 up to ND 200
- Horizontal or vertical mounting
- Independent of viscosity
- Outputs: 4-20 mA, contacts; ATEX versions
Flow indicator
Flow indicatorWith its turbine, OPTIFLUX ECFV shows the circulation of a liquid through the transparent glass tube.
For flow rates above the last half of the range, the indicator can be mounted either horizontally or vertically.
For lower flow rates (first half of range) vertical mounting is recommended with rising fluid.
Applications
- Checking directly the circulation of a liquid
- Well adapted to piping with clean liquids, lubricating fluids, in heating and cooling systems, industrial water plants.
Features
- Direct view of the flow of a liquid
- Vertical or horizontal mounting
- Ranges up to 60 I/min
- Fittings: ¼"... 1" BSP F.
- Body: Nickel-plated brass
In-line sight glass
In-line sight glassThe transparent tube is made of borosilicate glass, plus four spacers and two flanged fittings. Due to its simple design, the service is maintenance-free.
With the external radial seals, there is no change in cross-section and thus, no pressure loss.
The Visioflux SGL exists in two standard versions (Steel or stainless steel) and may be supplied with a plastique frame (PVC, PPH or PVDF ).
We also carry out special manufacturing, on specifications.
Applications
The devices Visioflux SGL are used for the direct viewing of liquid in piping.
SGL is useful for water, lubricating oil, alkaline or acid liquids.
By selecting the appropriate material, the sight glass can be used with aggressive liquids.
Features
- Direct visualization of flows
- ND 50 to ND 250
- Borosilicate glass tube
- Pressure drop free
- Simple - Reliable - Maintenance free
Variable Area Flowmeters
Variable Area FlowmetersThe measuring principle is that of the variable area flowmeter, the float is moved by the fluid inside a calibrated conical glass tube. The borosilicate glass conical tube is inside a steel case with a transparent reading window.
Versions:
RA 60 Fittings: Unions BSP-F: ¼'' to G 3''
FA 60 Fittings: Flange ND 10 to ND 200
RA/ FA 60-MSK1 With N.C. bistable contact
RA/ FA 60-MSK2 With N.O. bistable contact
RA / FA 60-MSKW With bistable changeover contact
RA / FA 60-EM * With analogue output 4-20 mA or 0-10 Volt
(Only on model sizes 100 and 110)
RA / FA 60... Ex ATEX, explosion-proof versions
Contacts:
These flowmeters can be equipped with a magnetic float and Reed contacts, trigger points adjustable over the entire measuring range.
Analog output: or 4-20 mA, or 0-10 Volt
The transmitter is connected to a Hall effect, linear signal ruler. The analogue signal is the image of the float position. The transmitter is connected via an M12 connector. This output is useful for applications using a PLC. The device is compact with a high level of repeatability.
Applications
Direct reading of flow-rate on gases or on liquids:
- Water treatment, Industrial process (paper mill, textiles etc.), Chemical and pharmaceutical industries, Heating and cooling plants
Features
- Direct reading on calibrated tube
- Range: From 0.1 l/h up to 1,500 m³/h
- Accuracy ±2 %
- For liquid or for gas
- Materials: Glass, Steel or Stainless Steel
- Adjustable contacts
- Analogue output 4-20 mA or 0-10 Volt
- ATEX version
Variable Area Flowmeters
Variable Area FlowmetersThe measuring principle is that of the variable area flowmeter, the float is moved by the fluid inside a calibrated conical glass tube. The borosilicate glass conical tube is inside a steel case with a transparent reading window.
Standard versions:
RA 65 Fittings: Unions, BSP-F from ¼'' up to 3''
FA 65 Flanges from ND10 up to ND65
RA/ FA 65-MSK1 With bistable contact N.C.
RA/ FA 65-MSK2 With bistable contact N.O.
RA / FA 65-MSKW With bistable changeover contact
RA / FA 65-EM With analogue output 4-20 mA
RA / FA 65. Ex Explosion proof ATEX version
Limit switches:
These flowmeters can be equipped with a magnetic float and Reed contacts, triggerpoints adjustable over the entire measuring range.
Analogue output 4-20 mA or 0-10 V:
The transmitter is connected to a Hall effect linear signal ruler. The analogue signal is the image of the float position. The transmitter is connected via an M12 connector. This output is useful for applications using a PLC. The device is compact with a high level of repeatability.
Applications
Direct reading and measuring of flow-rate on liquids and gases:
- Water treatment, Industrial process (paper mill, textiles etc.), chemical and pharmaceutical industries, heating and cooling plants.
Features
- For liquids and gases
- Direct reading on a calibrated tube
- Ranges from 0.5 l/h up to 160 m³/h
- Materials: Glass, steel or stainless steel
- Adjustable limit value switches
- Analogue output: 4-20 mA or 0-10 V
- ATEX version on request
Variable Area Flowmeters
Variable Area FlowmetersTheir design, plastic body and glass tube, makes them particularly suitable for aggressive fluids and corrosive environment.
The measuring principle is that of the variable area flowmeter, the float is moved by the fluid inside a calibrated conical glass tube. The borosilicate glass conical tube is inside a plastic protection case with a transparent reading window.
Standard versions:
RA 77 Unions for solvent welding, ND10 to 80
FA 77 Flanges ND 10 to 80
RA / FA 77-MSK1 With bistable switch N.C.
RA / FA 77-MSK2 With bistable switch N.O.
RA / FA 77-MSKW With bistable changeover switch
Limit values switches
These flowmeters can be equipped with a magnetic float and Reed contacts, trigger points adjustable over the entire measuring range.
Applications
Water treatment, Industrial process (paper mill, textiles etc.), chemical and pharmaceutical industries, heating and cooling plants.
Features
- Direct reading on a calibrated tube
- Body: PVC / Reading tube: Glass
- For agressive fluids
- Fittings: Unions or flanges
- Adjustable limit value switches
Variable Area Flowmeters
Variable Area FlowmetersThe measuring principle is that of the variable area flowmeter, the float is moved by
the fluid inside a calibrated conical glass tube. The borosilicate glass conical tube is
inside a stainles steel protection case with a transparent reading window. These
flowmeters can be calibrated for each fluid, depending on the operating conditions.
Standard versions:
RA 87 G Fittings: BSP-F ¼'' ... 2''
RA 87 Rp Fittings: Unions
FA 87 Fittings: Flanges ND 10 ... 65
RA / FA 87-MSK1 With bistable contact N.C.
RA / FA 87-MSK2 With bistable contact N.O.
RA / FA 87-MSKW With bistable changeover contact
RA / FA 87-EM With analogue output 4-20 mA or 0-10 V
RA / FA 87.Ex ATEX, explosion-proof version
Limit value switches
These flowmeters can be equipped with a magnetic float and Reed contacts, triggerpoints adjustable over the entire measuring range.
Analogue output 4-20 mA or 0-10 V
The transmitter is connected to a Hall effect linear signal ruler. The analogue signal (4-20 mA or 0-10 V) is the image of the float position; The transmitter is connected via a connector M12. This output is useful for applications using a PLC. The device is compact with a high level of repeatability.
Applications
Direct reading of flow rates of liquids and gases:
- Water treatment, Industrial process (paper mill, textiles etc.), chemical and pharmaceutical industries
Features
- Direct reading on a calibrated tube
- Water: Up to 16 m³/h ; Air: Up to 160 m³/h
- Body: Stainless steel
- Adjustable limit value switches
- Analogue output: 4-20 mA or 0-10 V
- ATEX version
Variable Area Flowmeters
Variable Area FlowmetersThe measuring principle is that of the variable area flowmeter, the float is moved by the fluid inside a calibrated conical glass tube.
The borosilicate glass conical tube is inside a cast iron protection case with a transparent reading window.
These flowmeters can be calibrated specificaly for a fluid (gas or liquid).
Applications
Water treatment, Industrial process (paper mill, textiles etc.), chemical, oil, mining industries.
Features
- Heavy duty model
- ND 15 to 150
- Ranges in Air or Water
- Coated versions for acids and bases
- Limits 10 bar or 150 °C
Limit value switches
Limit value switchesThe M8x1 threaded sleeve with its right angle connector includes a Reed contact. The switching behavior is made bistable by the built-in holding magnet. The contact is actuated when the magnetic float passes. The connection is done by a right angle plug in plastique PA/ PBT, with a 4-pin connector M12x1.
Depending on the type of device, the contacts are positioned in a guiding groove or on a guiding rod.
The contacts are adjustable over the entire measuring range.Flowmeters and level indicators can accommodate multiple contacts for monitoring the measuring points.
Different models:
MSK1 Bistable contact, Normally Closed
MSK2 Bistable contact, Normally Open
MSKW Changeover contact
Applications
Limit value switches MSK1, MSK12 and MSKW allows the monitoring of measuring
points all along the measuring range. Compatibilities with:
• Variable area flowmeters: RA60 / FA60; RA65 /FA65; RA77 / FA77; RA87 / FA87 and SGK 1 - 3
• Bypass flowmeters: DST series
• Level indicators: NA and NA-V4A series
Features
- Bistable contacts N.C., N.O. or changeover
- Adjustable, easily
- Long lifetime
- Available for Hazardous Areas
Variable area flowmeters - Low flow-rates
Variable area flowmeters - Low flow-ratesThe measuring principle is that of the variable area flowmeter, the float is moved by the fluid inside a calibrated conical glass tube. The glass tube (3) is sealed at each end by an O-ring protected against damaged by a flat gasket (inserted in the parts 1 and 2).
These flowmeters can be equipped with an adjustment valve and they receive limit value switches. The signal output from limit value switches are easily connected to a PLC or monitoring device. The GK2 version can be fitted with a ruler with a 4-20 mA transmitter (Hall effect sensors).
Standard versions:
- SGK-1 For smallest flows of air and water
- SGK-2 For medium flows of air and water
- SGK-3 Low flows of air and water
- ...-MSK1 With bistable Reed contact N.C.
- ...-MSK12 With bistable Reed contact N.O.
- ...-MSKW With changeover Reed contact
- ...-RC ¹⁾ With inductive limit value switch
- ...-EM ²⁾ With analogue output 4-20 mA or 10 V
¹⁾ Flow-rates < 2 l/h of water; < 80 l/h of air
²⁾ Available only with SGK-2 version (other ranges on request)
Limit value switches:
These flowmeters can be equipped with a magnetic float and Reed contacts, triggerpoints adjustable over the entire measuring range. For small flows up to 30 l/h, detection by inductive contact series RC will be used.
Analogue output 4-20 mA or 0-10 V:
The output signal is obtained by using a linear Hall effect displacement sensor. The output signal is proportional to the height of the magnetic float position. The sensor is plugged through a connector M12.
This output is useful for applications using a PLC. The device is compact with a high level of repeatability.
Different models:
MSK1 Bistable contact, Normally Closed
MSK2 Bistable contact, Normally Open
MSKW Changeover contact
Applications
Flowmeters SGK 1-3 are used for direct reading and measuring of low flow-rates on liquids and gases. They are designed for reduced space, in laboratory, in technical rooms.
Features
- Direct reading on a calibrated tube
- Water: 0.1 – 1 l/h ... 1.2 m³/h
- Air: 0.3 – 3 l/h ... 16 m³/h
- Maximum: 10 bar or 100 °C
- Measuring glass tube: Conical (Pyrex®)
- Fittings: BSP ¼'' or ½''
- OPTIONS :
- Pressure regulator
- Limit value switches
- Analogue output 4-20 mA
- ATEX version available
Variable area flowmeters - Low flow-rates
Variable area flowmeters - Low flow-ratesIDP or PDP indicators use the principle of variable area flow-meter: the fluid flow raises a diver in a conical tube, expanding the cross section of the passage of fluid. The diver moves up proportionally to the flow-rate.
Standard equipment includes a graduated scale in l/h of water at 20 °C. In options there are specific scales; Air in Nm3/h (1 to 9 bar ABS); HCl at 30 / 33 %; NaOH at 30 % and at 50 %.
With magnetic diver versions, the Z60 transmission ruler converts the diver position into a 4-20 mA signal.
Mounting precautions:
Flow indicators must be installed vertically with rising fluid. It is recommended to have a length upstream of 10 x ND and a length downstream of 5 x DN.
Applications
IDP series, flow-rate indicators are ideally suited for continuous measurement of flow for air and neutral, basic or acid liquids.
Features
- Direct reading
- All wet parts in plastics
- Measuring tubes: PVC or Polysulfone
- Ranges: Up to 60 m³/h
- Specific scales for Air, HCl, NaOH, etc.
- Options:
- Adjustable contacts
- 4-20 mA transmitter
Special scales for IDP
Special scales for IDP- AIR
- HCl 30 – 33 %
- NaOH 30 %
- NaOH 50 %
Features
AIR
- Measuring tube must be in Polysulfon
- Graduated scales in Nm3/h, absolute pressure, temperature 20 °C
HCl 30 – 33 %
- Measuring tube may be in PVC or Polysulfon
NaOH 30 %
- Measuring tube must be in Polysulfon
NaOH 50 %
- Measuring tube must be in Polysulfon
Flow transmitter for IDP-A
Flow transmitter for IDP-AThe transmitter Z60 is designed for IDP-A (with magnet diver) 730... series. It
converts the float position into a 4-20 mA signal.
The transmitter does not require any adjustment on site. Each model is specific to a
measuring scale of IDP-A.
Mandatory:
The flow indicator must integrate a magnetic diver (IDP-A series only).
Installation:
The transmitter is fixed directly to the flow indicator.
Caution:
- Output signal 4 mA corresponds to 10% of full scale
- Output signal 20 mA corresponds to 100% of full scale.
Applications
For remote indication of flow-rate as indicated by the diver of IDP-A.
Features
- Flow-rate transmitter
- For IDP-A, with magnetic diver
- Output signal: 4-20 mA (3-wire)
- Already set in factory
- Plug in connector
Small plastic flow indicator
Small plastic flow indicatorPDP indicator applies the principle of variable area flow-meter: the flow raises a diver in a conical tube expanding the cross section of fluid passage. The diver moves up proportionnaly to the flow-rate (diver is commonly named ''float'').
Standard equipment includes a graduated scale in l/h of water at 20 °C. In options there are specific scales: Air in Nm³/h; HCl at 30...33 %; NaOH at 30 % & 50 %. See data -sheet 731-04
Precautions for mounting:
Flow indicators must be installed vertically with rising fluid. It is recommended to have a length upstream of 10 x ND and downstream of 5 x ND.
Applications
PDP series are ideally suited for continuous measurement of flow for air and neutral, basic or acidic liquids.
Features
- Direct reading
- All wet parts in plastics
- Materials: PVC, PSU, PVDF, EPDM
- Scales from 2.5 up to 1,000 l/h of water
Other scales: Air in Nm³/h, HCl and NaOH. - Option: Adjustable contacts
Graduated scales: Air
- Measuring tube must be in Polysulfon
- Graduated scales in Nm3/h, absolute pressure, temperature 20 °C
Graduated scales: HCl 30 – 33 %
- Measuring tube may be in PVC or Polysulfon
Graduated scales: NaOH 30 %
- Measuring tube must be in Polysulfon
Graduated scales: NaOH 50 %
- Measuring tube must be in Polysulfon
Features
- Scales for air are convenient only for PDP with body in POLYSULFONE.
- Scales for HCl are convenient for PDP with body or in PVC or in POLYSULFONE.
- Scales for NaOH 30 % and 50 % are convenient only for PDP with body in POLYSULFONE.
These scales are not contractual; Changes may occur without notice.
Variable area flowmeter for liquids
Variable area flowmeter for liquidsThe flow-rate is indicated on the front (magnetic coupling of the diver with the external indicator). The short distance of 250 mm between flanges allows an installation in reduced space. In addition, no straight pipe distances upstream and downstream are required.
Operation:
Through the measuring tube (including a calibrated orifice and a conical diver), the flow lifts the diver (up to equilibrium height against its weight).
The direct reading is on an analogue display, isolated from the liquid.
This instrument must be installed for a vertical and upward flow.
Applications
Local indication of instant flow of liquids.
Features
- For liquids
- Ranges: From 2.5 up to 63,000 l/h
- Float: Stainless steel or PTFE
- Fittings: Flanges or BSP threads
- Options:
- 4-20 mA output
- 1 or 2 adjustable alarm contacts
- ATEX Version
Variable area flowmeter for gases
The flow-rate is indicated on the front; Magnetic coupling of the diver (float) with the external indicator). The distance of 250 mm between fittings allows installation in reduced spaces. In addition, no straight pipe distances upstream and downstream are required.
Operation
Through the measuring tube (including a calibrated orifice and a conical diver), the flow lifts the diver (up to equilibrium height against its weight). The particular shape of the diver makes the instrument less sensitive to variations of viscosity.
To guarantee the proper functioning of the device, the flow must be vertical with an upward flow.
Applications
Indication of instant flow of gases, with remote signals (options)
Features
- For gases
- Ranges: 0.08 to 1,000 Nm³/h (Air)
- Fittings: Flanges or Threads
- Options: 4-20 mA, contacts, Ex version
Venturi flow rate in open channels
Venturi flow rate in open channelsDEBITFLO venturi channels are designed for flow measurement in open channels with a free surface in compliance with ISO 4359.
Made from reinforced polyester, they offer excellent dimensional stability, guaranteeing good measurement accuracy.
Level/flow correspondence :
Combined with a level transmitter, they provide a reliable and accurate solution for continuous flow measurement (see datasheet 755-03).
The Level/Flow table is supplied with each Venturi channel.
Approach channel :
For flows up to 100 m³/h, the approach length is integrated into the venturi channel.
The overall installation time is reduced and the quality of the result is optimal.
Over 100 m³/h, the approach channel (1 or 2 parts) may be supplied or not, depending on the installer's ability to make the approach length on site (in concrete structure) accordingly to recommendations and standards. ISO 4359 requires the approach channel to have a minimum length of 5 times its inside width, upstream of the measurement zone, which is itself between 3 and 4 times the maximum height to be measured upstream of the Venturi restriction.
Polypropylene housing: Simplified commissioning
On request, we supply assemblies integrated in a polypropylene housing, ready to connect & install.
Applications
Measurement of flow rates in free-surface flows, particularly in polluted, corrosive or particle-laden wastewater.
Installed in polypropylene housing
Features
- ISO 4359-compliant
- Up to 1000 m³/h
- Made in fiberglass-reinforced polyester resin
- Easy civil engineering
- Option: Integration into a ready-to-install plasturgy envelope
Venturi channels with exponential section
Venturi channels with exponential sectionThe Venturi of exponential section is designed to measure flow-rate in a straight linear open channel.
This Venturi add to the advantages of a classic channel, a larger measuring range.
With the parabolic shape of the restriction, the Venturi is more accurate at low flow-rates.
This Venturi allows a scale factor from 1 to 100 (to compare to 1 to 20 on classic Venturi).
Example: Measurement from 3.6 m³/h up to 360 m³/h for channel type 5 with exponential section.
The table flow-rate vs. heiht of liquid is supplied with each Venturi, and, the limnimetric scale on stainless steel ruler comes with the approach channel.
An extended version of ISO 4359 includes the Venturi with exponential section.
Strength and resistance of the channels:
These glass fiber reinforced polyester channels have an extremely reduced roughness coefficient and resistance to aggressive and charged effluents. The solidity is ensured by transverse stiffeners allowing their direct installation in formwork.
Simplified installation:
On request, we supply assemblies (approach channel + Venturi) integrated in a plastics housing allowing a simple and mobile installation.
Applications
Measurement of flow-rate in open channel for sewage treatment plants, washing treatment and water treatment in industry etc.
Features
- 7 channels in composite material, with approach channels
- Flow rates from 0.22 up to 1440 m³/h
- Easy civil engineering
Support with protective cover (Optional)
Level transmitter for Open Channels
BAMOSONIC is a high performance ultrasonic transmitter with integrated transducer and electronic processing module. Compact, this transmitter is powered by the loop (4-20 mA; 2-wire) and stands out for its reliability and high accuracy.
Positioned above the surface of the liquid, the BAMOSONIC provides an output signal proportional to the liquid level. The stainless steel holder facilitates the positioning of the device over an open channel, particularly convenient for flow measurements in wastewater treatment plants.
Applications
BAMOSONIC is used to continuous monitoring of liquid level in open channels (Venturi or Weir).
With a US beam angle of 6° it is perfectly suited for level measurement on exponential section channels
Features
- Level monitoring for Open Channels
- Range: 0.2 to 4 m
- No contact with the liquid
- Powered through the loop 4-20 mA; 2-wire
- Protection rate IP 67
V-notch weir systems
V-notch weir systemsChoice of a weir plate must consider the maximum flow-rate and the lieu of installation.
Specific dimensional requirements such as minimum width, minimum height, minimum weir load and other parameters must be observed.
On request, BAMO can customize the weir to your needs and in conformity with the standard NF X10-311. Each instrument is delivered with its table "flow rate vs. height".
BAMO instruments can be fitted with accessories like level transmitter holder, probes holder, etc to allow an easy start up and full compliance with standard.
Applications
- Flow measurement for effluent monitoring
- Monitoring before discharge in natural environment or to a sewer
- Gravity flow measurement
Features
- Flow-rate from 1 to 80 m³/h
- Custom made on request, in PP
- Ready to use
- NF X10-311 compliance
Air bubbling level transmitter
Open-channel measurement requires highly accurate level measurement, as the relationship between level and flow is exponential. This measurement system combines an air generator with a highly accurate pressure sensor. On the air circuit, a sensor measures the pressure required for the effective release of air bubbles. The pressure measured is then equal to the hydrostatic pressure of the liquid column at the air discharge point.
To minimize measurement error due to air flow variations between high and low levels, the injection pump features a microvalve. The “0” and full scale settings are accessible to the user. The level can then be transmitted as a 4-20 mA signal.
The BAMOBUL level sensor consists of an IP 55 wall-mounted enclosure housing the pressure sensor, power electronics and air generator. Pneumatic connections are provided by instant fittings for Ø 6x4 rilsan tubing between the housing and the injection pipe. Electrical connections are made via a screw terminal block in a weatherproof enclosure. The 316 L stainless steel injection pipe features a sliding adjustment device. It is secured by a stainless steel plate to be fixed to the channel.
Applications
Level measurement in open channel Venturi or weir.
Features
- Level measurement on open channel
- For dirty/heavy wastewater
- In combination with BAMOPHAR 759
- Range: 0 to 500 mm Water Column
- 4-20 mA analog output
Flow calculator for open channels
Flow calculator for open channelsThe reading is easy on the 4.3" color touch screen for flow-rate or height of liquid, as well as for totalization.
Through a user friendly menu, settings are easy for thresholds, alarms, sampler monitoring and all parameters.
BAMOPHAR 759 converts the input signal directly into flow-rate, through a calculator and using formulas and calibration tables of our Venturi channels (ISO 4359) and our standard V or U channel weirs.
A complete measuring chain consists of the following elements :
- A weir or venturi channel (see our range of open channels)
- A level probe such as BAMOSONIC (Doc 755-03) or BAMOBUL (Doc 759-03) with the associated mounting devices.
- A flow calculator / displayer for open channels, type BAMOPHAR 759
As part of wastewater discharge monitoring, data recording is mandatory.
Extension terminal (panel, wall or DIN rail mounting):
- Allows a second measurement (Turbidity, pH, Conductivity, etc.) Data from this blind unit are displayed on the main device
- Connected to main unit with a 2x2-wire shielded cable (Cable length between both devices: max. 500 m)
- Extension terminal uses the RS 422 and data logger of main unit
Panel mounted + extension DIN rail
Features
- Colour touch screen
- Flow-rate tables for Venturi and weir plates
- Display of level, flow-rate, daily volume and totalization
- 1 Input 4-20mA and 1 input Pt 100 Ohm
- 2 analogue outputs 0/4-20 mA
- 4 programmable relay outputs; 2 as alarms, 1 for sampler, 1 for pulse output)
- OPTIONS:
- Logger, MODBUS, TCP/IP, Extension for 2nd measurement input
Orifice flowmeter
Orifice flowmeterThe device works according to the principle of differential pressure, proportional to the square of the volume rate of flow through the pipeline. A DDM flow-meter consists of an orifice plate, integrated into an armature, flanged or with unions fittings. The low and high pressure outlets on either side of the plate can be connected to a differential pressure sensor (pressure gauge, pressure switch, differential pressure transmitter).
The reliability of the measurement depends of the constant flow at the measuring
point. The region of steady flow should covers piping distances of 6 DN upstream
and 4 DN downstream of the device.
Several versions in steel, stainless steel or brass are available:
DDM-DN Wafer, flanges acc. DIN EN 1092-1
DDM-Gi Female threads acc. DIN EN ISO 228
DDM-Ga Male threads acc. DIN EN ISO 228
DDM-Rp Unions acc. DIN EN 10226-1 (ISO 7-1)
Applications
These differential pressure flowmeters are of the most common use, in all measurements with liquids, gases or steam in various industries. They are
designed for various operating conditions, under normal conditions (Water supply, swimming pool, etc.) as well as with high pressure and temperature (Steam, hydrocarbons, etc.) and aggressive fluids. They are economical, reliable for natural gas or wet gas measurements. The orifice flow-meter (differential pressure flowmeter) covers a wide range of piping diameters.
Features
- For liquids and gases
- Wafer type or Threaded fittings
- ND 40 to 200, or Threads ¼'' to 2''
- Horizontal or vertical installation
- No moving parts
- Materials: Brass, steel, stainless steel
Analogue flowmeter with orifice plate
Analogue flowmeter with orifice plateThe device works according to the principle of differential pressure which is proportional to the square of the volume rate of flow through the pipeline. The DDM-DS11 series integrates an orifice plate inside an armature for wafer mounting or with threaded fittings The low and high pressure outlets on either side of the diaphragm are connected to a gauge in accordance with customer specifications.
The reliability of the measurement depends of the flow behaviour at the measuring point. The region of steady flow should covers piping distances of 6 ND upstream and 4 ND downstream.
Several versions in steel, stainless steel or brass are available.
| DDM-DS11-DN | Wafer mounting according DIN EN 1092-1 | |
| DDM-DS11-Gi | BSP-F according DIN EN ISO 228 | |
| DDM-Ga | BSP-M according DIN EN ISO 228 | |
| DDM-DS11-Rp | Unions according DIN EN 10226-1 (ISO 7-1) |
Applications
These differential pressure flowmeters are the most common in use. They find their use in measurements with liquids, gases or steam in various industries. They are suitable for many operating conditions, common ones (water supply, swimming pool, etc.) as well as for high pressure and temperature (steam pipes, hydrocarbons, etc.) and aggressive fluids. They are very reliable for natural gas or wet gas measurements, and economical. Differential pressure flow-meters are suitable for a wide range of piping dimensions.
Features
- For liquids and gases
- Mounting: BSP fittings or Wafer versions
- BSP ¼'' to 2'' or DN40 to DN200
- With differential pressure gauge
- Brass, Steel, AISI, coated aluminum
Digital display flow-meter with orifice plate
Digital display flow-meter with orifice plateThe device works according to the principle of differential pressure which is proportional to the square of the volume rate of flow through the pipeline. The DDM series integrates an orifice plate inside an armature for wafer mounting or with threaded fittings.
The transmitter EM contains a diaphragm system. The differential pressure generates a force which moves the diaphragm system against the measuring spring. The resulting movement is transmitted to the inductive transducer via a piston. The electronics convert the signal into a direct display, switching contact and output signal.
The reliability of the measurement depends of the flow behaviour at the measuring point. The region of steady flow should covers piping distances of 6 ND upstream and 4 ND downstream.
Several versions in steel, stainless steel or brass are available:
DDM-DN Wafer for flanges acc. DIN EN 1092-1
DDM-Gi Female threads acc. DIN EN ISO 228
DDM-Ga Male threads acc. DIN EN ISO 228
DDM-Rp Unions DIN EN 10226-1 (ISO 7-1)
Applications
These differential pressure flow-meters are used for monitoring gas and liquids.
Features
- For liquids and gases
- From ND50 to ND200, or BSP ¼'' up to 2''
- Mounting: Vertical or horizontal piping
- Output 4-20 mA (0-10 V on request)
- 2 Adjustable contacts, NO / NC
- LED display (remote unit: on request)
Digital display flow-meter with orifice plate
Digital display flow-meter with orifice plateThe orifice plate flow indicators U6 are specifically designed for the measurement of high flow rates.They are suitable for pipes with a diameter equal or over 2".
The direct reading is done on a variable area flow meter.
For an optimal accuracy, the diaphragm characteristics are calculated against the process parameters (see further on).
Mounting: From factory, by construction, you can ask for a mounting position according to process.
Features
- Mounting in all positions
- Construction: cast iron or stainless steel
- For pipes from ND 40 up to ND 300 mm
- Scale amplification from 2 to 10
- Accuracy: ± 2.5 %
- Options: High or/and Low flow switches
Measuring range:
- 1 to 1600 m3/h [Water at 20°C]
- 180 to 200 000 Nm3/h [normo m3/h of air]
Accuracy: ± 2.5% full scale
Repeatability: ± 0.5% reading
Scale amplification: from 2 to 10 - Linear scale
Temperature limits:
- 0 ... 90 °C, sealing in Buna
- 0 ... 120°C, sealing in FPM
Pressure limit: 21 bar as a maximum
Orifice Plate flowmeters
Orifice Plate flowmetersWafer mounting: The orifice plate is inserted between 2 flanges. The differential pressure is between the inlet and outlet, one on each side of the plate. The
differential pressure is related to the flow rate inside the main pipe. The flow indicator is part of the bypass, allowing a direct reading.
In order to obtain a proportional relation to the main flow, a BORDA nozzle is inserted before the flow indicator.
Option with output signal: Instead of an indicator, a flow transmitter may be installed.
Applications
- Clean waters: Tap water, swimming pool water
- Aggressive liquids (acidic or basic)
Features
- For aggressive liquids
- Direct reading indicator on pipes from ND 50 up to ND 200
- Mounting in all positions
- According standard NF X 10-102
- Options: Flow contact; Output signal
Flow measurement in stationary sprinkler systems
Flow measurement in stationary sprinkler systemsThe SMB is integrated into the pipeline between flanges as a wafer flow-meter. A differential pressure occurs at the orifice, which is proportional to square of the volume flow through the pipeline.
The differential pressure is indicated by a differential-pressure gauge. We calibrate on bench the gauge according the flow rates. The instant value of flow rate is directly read on the dial.
The version SMB-OEdisplays the differential pressure as a percentage value. The operator can read the equivalent flow in m³/min on a label fixed to the casing.
Thanks to its particular articulate design, integration of the SMB is possible in any flow direction. The display pivots by 180 degrees in both directions.
In case of vibrations in the Sprinkler system, the SMB may be fitted with flexible capillaries, to remote the gauge.
SMB series:
SMB Reading scale in m³/min
SMB-OE Reading scale in %
SMB-..-Minimess Remote display gauge with flexible capillaries
Applications
The sprinkler measuring orifice SMB is used for monitoring efficiency of pump in test piping of stationary sprinkler systems. It works according to the principle of differential pressure created with an orifice plate.
Features
- Agreement VdS: G 4990049 (Germany)
- From ND 80 to ND 250
- Free mounting position & flow direction
- Indicator: direct mounting or remoted
- Scales: m³/min or % according directives
Electromagnetic flowmeter
Electromagnetic flowmeterElectromagnetic flowmeters are designed to measure the flow of a liquid with minimal electrical conductivity of 5 μS/cm.
The selection of the appropriate device: size, material or available options depends on the type of liquid being measured, its temperature and the specifications of operation.
The sensor has built-in electrodes that measure the flow on the principle of Faraday's cage. The signal coming from electrodes is sent to the converter placed on the flowmeter or to the remote converter (e.g. : on the wall).
Converter changes and amplifies the signal, displays measurement results and can receive additional modules, e.g. 4-20 mA output, relay or GSM module.
Features
- Display with backlit keyboard
- From DN10 to DN1000
- Versions: Compact or remote converter
- Connections: flanges, threads, wafer and sanitary fittings
- Modular design with many additional options (MODBUS, HART, GSM)
- Approval for drinking water ( PZH )
Electromagnetic flowmeter
Electromagnetic flowmeterBAMOMATIC is a flowmeter based on the principle of electromagnetic induction to measure flow-rate on electrically conductive liquids ( > 20 μS/cm). It is perfectly suited for dosing or totalizing liquids. Each instrument is calibrated on a bench test at ± 5/1000 pulses of water at 23 °C. Density of the liquid, its temperature or its pressure have no influence on the measurement; No moving parts in this flow-meter: it ensures operatings without mechanical wear.
Applications
- Mechanical and industrial engineering fields
- Cleaning process
- Liquid dosage
- On board skids, etc.
Features
- Ranges from 0.1 up to 250 l/min
- 2 Outputs: Analogue and pulse
- No moving parts
- Small dimensions
- High accuracy
Ultrasonic flowmeter
Ultrasonic flowmeterBAMOFLONIC applies propagation ultrasonic waves principle to measure the speed of a liquid, then to calculate the corresponding flow-rate. Therefore, It is convenient for liquids electrically conductive or not.
Important: The liquid must be clear and homogeneous.
The absence of a moving part ensures its operation without mechanical wear. All wet parts are of PSU or of HD-PE (Sealing: EPDM).
Applications
Flow measurements on conductive and non-conductive liquids in various industrial, cosmetic and food applications.
Examples: Demineralized water, liquid cosmetics, bases, acids, etc.
Features
- 7 models ND 10 to ND 50
- Flow ranges from 0.3 up to 900 l/min
- Analogue output: 0/4-20 mA
- Digital output to set on site
- Back-lighted display
Ultrasonic flowmeter
Ultrasonic flowmeterBAMOFLONIC - PFA applies propagation ultrasonic waves principle to measure the speed of a liquid, then to calculate the corresponding flow-rate. Therefore, it is convenient for liquids electrically conductive or not.
Note: The liquid must be homogeneous and clear.
As no moving parts are concerned, BAMOFLONIC operates without mechanical wear. Wet parts are of PFA.
BAMOFLONIC - PFA can operates without its remote display unit. If liquid properties are different to water (viscosity, waves propagation, etc.), it is recommended to use the remote display unit. It allows to display and modify the flow-meter parameters (output signals, reset of totalizer, dosing function, etc.).
Applications
Flow measurements or dosing sequences of aggressive or neutral liquids:
- Chemicals strongly alkaline or acidic
- CIP (Clean In Place)
- Lixiviates, etc.
Features
- 4 models ND 7 to ND 20
- Measuring ranges from 0.09 up to 120 l/min
- Wet parts in PFA; Casing in PP
- 1 Analogue output 0/4-20 mA
- 1 Digital output, to set up
Ultrasonic flowmeter
Ultrasonic flowmeterBAMOFLONIC 42i applies propagation ultrasonic waves principle to measure the speed of a liquid, then to calculate the corresponding flow-rate.
Therefore, it is convenient for liquids electrically conductive or not.
BAMOFLONIC 42i has no moving components and is therefore wear-free.
The device is characterized by its high measuring accuracy and reproducibility.
Some liquids or their concentrations, are not compatible with the ultrasonic measuring principle; Please contact Bell Technology for information.
Applications
The BAMOFLONIC 42i is well suited for measuring flow and dosing liquids:
- Demineralized water, cosmetics, liquid foods
- Toxic chemicals
- Aggressive liquids such as acids and alkalis
Features
- For liquids electrically conductive or not
- Ranges from 0.024 up to to 60 l/min
- Wet parts all in PE-HD
- 1 Analogue output 0/4-20 mA
- 1 Digital output (various functions)
Flow sensor, vortex type
Flow sensor, vortex typeThis flowmeter, which has no moving mechanical parts, is not affected by a pollution. It is distinguished by a low pressure drop and a good accuracy.
The flow sensor is based on the principle of Karman vortex trail. The frequency of vortices generated by the obstacle located in the flow path, is proportional to the flow speed. Turbulences are detected by a piezoelectric paddle, operated by an integrated electronics.
Applications
Flow measurement on domestic hot water, drinkable water or non-conductive liquids such as demineralised water or reverse osmosis water.
Features
- Flow-rate sensor for domestic hot water, drinkable water, demineralised water
- Measuring range from 0.9 to 150 l/min
- Pipes from ND 8 to ND 25 mm
- Output signal: or 4-20 mA or pulses
- Drinkable water approvals: WRAS,ACS
Paddle wheel flow sensor
Paddle wheel flow sensorThe liquid flow, causes rotation of a 5-blade paddle wheel with magnetic inserts.
Variations of magnetic field produce pulses whose frequency is directly proportional to the speed of the fluid.
The liquid may content no more than 2 % of solid particules, non-magnetique and size < 0.5 mm.
The viscosity may be between 0.5 and 20 cSt, beyond which an on-site calibration will be necessary.
Applications
BAMOFLU is designed for neutral or slightly aggressive liquids, free from solid particles (demineralized water, pool water after filtration, etc.)
Features
- On-line flow sensor
- From ND 15 up to ND 600
- Output: Rectangular pulses
- Materials: PVC, PPH, PVDF or AISI 316
Turbine flowmeter
Turbine flowmeterThe BAMOTUR consists of a turbine mounted on a shaft of sapphire or of stainless steel. The turbine is rotated by the dynamic pressure of the liquid in movement. Magnets are encapsulated in the turbine and activate an electronic Hall effect sensor inserted in the upper part of the flowmeter.
The electronic part generates pulses, in relation to the speed of rotation.
Applications
The BAMOTUR series is suitable to measure low flow-rates and for totalization, of neutral or aggressive liquids, in all industries. The liquid may not contain particles and may not crystallize.
Features
- Range from1.5 up to 1000 l/h
- Output signal: Pulse or 4-20 mA
- For aggressive or high grade liquids
- Small dimensions
- Materials: E-CTFE, PVDF or POM
Turbine flowmeter
Turbine flowmeter- The liquid must be free of particles, the use of a filter upstream is recommended.
- Magnetic metal particles are prohibited.
- The operating conditions should not exceed the pressure and temperature limits.
- The liquid must be chemically compatible with the materials.
Applications
Additive control, measurement of consumption, dosing, wherever a measurement of a low flow is necessary.
Features
- Pulse output
- Accuracy ± 2%
- From 0.5 to 300 l/h
- Version for lubricating oil, diesel
Version for water, weak acids, base - Max. pressure 5 bar
Oval wheel flow sensor
Oval wheel flow sensorThe device contains two gear wheels driven directly by the fluid.
Every full revolution represents a fixed, known volume of liquid.
Each wheel has an embedded magnet that, when passing a Hall‑effect sensor, produces pulses whose count is proportional to the flow rate.
PRECAUTIONS
The Mini/Maxi flow ranges may vary depending on the viscosity, temperature, and pressure of the fluid.
Below is a reference with cola syrup:
| Cola syrup | - Viscosity 24 cSt at 20 °C - Pressure 5 bar - Min. 6 cm³/min - Linear output from 30 cm³/min - Max. 5,600 cm³/min |
The fluid must be free of solid particles that could interfere with the wheels.
Applications
The OV 16 flow meter is particularly suitable for measuring the flow rate of highly viscous fluids such as syrup, oil, or detergent concentrates.
Features
- For viscous liquids from 5 to 8000 cSt
- Materials: PEEK and 316L
- Range: 0.06...16 l/min
- ¼" BSP (F) threaded fittings
- Max. pressure 10 bar
Turbine flow sensor
Turbine flow sensorThe FFG flow sensor allows measurements of low flow-rates for remote reading or
totalization with appropriate monitors (See Codes and References on next page)
The dynamic pressure of the liquids makes rotate the turbine. The liquid passes through a calibrated nozzle, which increases its speed and that of the turbine.
Magnets are integrated to the turbine and activate an Hall effect sensor inside the top cover. The electronic generates a pulsating signal, proportional to the speed of rotation of the turbine and therefore to the flow-rate.
Applications
- With neutral or aggressive liquids
- Clear liquids free of particles, non-crystallizing.
The flow must be homogeneous and piping always full of liquid.
(FFG turbine type is not suitable for measuring gas flow)
Features
- Totalization; Low flow-rates
- Versions: Or in Arnite, or in PVDF
- Ranges: From 2 up to 940 l/h
- High resolution frequency output
- Fitting: BSP ¼''
Composite water meter
Composite water meterThe water meter Type 620 is a highly metrologic accurate meter.
Designs of the measuring chamber and rotary piston allow even a drip counting.
The Type 620 maintains its metrologic features throughout its lifetime.
Readability is ensured with the plastic totalizer equipped with a wiper and with the glass-metal totalizer avoiding any condensation.
The water-meter 620 easily fits into your pipings.
Its anti-fraud design and robustness guarantee a long service life for the Type 620.
Applications
This water meter is designed for potable or demineralized water as well as polluted water (by corrosion, scaling, particles, etc.)
Features
- Water meter ND 15 or ND 20
- Composite body, dry dial head
- Suitable with drinking water
- High accuracy and repeatability
- High resistance to aggressive liquids, wastewater
Multi-jet counter for cold water
Multi-jet counter for cold waterMulti-jet turbine counters with dry dial allow the flow to be totalized.
Operating principle of ''Multiple jets'': The flow is distributed and strikes the turbine blades simultaneously.
As an option, the counter can be fitted with a pulse emitter: K = 1, 10, 100 or 1000 litres per pulse (excepted for DN40: K = 10, 100 or 1000).
Caution: The pulse emitter is factory fitted on its counter and only in factory (to order together with the counter).
Precautions
To install at a low point of a horizontal or vertical pipe, easy to access and protected from frost. The 360° orientation of the totalizer must be carried out in the factory before sealing. The direction of flow must correspond to that of the arrow on the body.
In order to drain the piping, it is recommended to install a stop valve before the counter and a drain valve after the counter.
After installation, fill the pipe and drain it, to eliminate air bubbles (they can cause measurement errors and damage the counter). For the same reason, it is important never to let the counter empty. The operating conditions must be in accordance with the features of the counter (pressure, temperature, flow rate).
Never weld the piping when the counter is installed, as the high temperature will damage the internal plastic parts.
Applications
- Totalization of water flow on horizontal and vertical pipes
- Suitable for polluted water, even with suspended solids
- Options: Pulse emitter, Totalizer BCP 48
Features
- Water meter ND 15 or ND 20
- Composite body, dry dial head
- Suitable with drinking water
- High accuracy and repeatability
- High resistance to aggressive liquids, wastewater
Cold water counter Woltmann type with axial propeller
Cold water counter Woltmann type with axial propellerPrinciple of operation Woltman type: The flowing liquid drives a helix in the horizontal axis of the counter.
Type: WOLTMANN, with axial propeller, removable mechanism, dry dial rotating through 360 °, magnetic transmission, direct reading. The mechanism and totalizer display are inside a vacuum-sealed capsule. The body is in epoxy coated cast iron.
Applications
- Cold water flow measurements on horizontal or vertical pipe
- Options: Pulse output, Remote display Totalizer
Features
- For high flow rates up to 3125 m³/h
- Removable mechanism, dry dial
- Magnetic transmission
- For horizontal or vertical pipe
Low flow rate flowmeters
Low flow rate flowmetersVariable area flowmeters: the diver (''float'') moves inside a conical measuring tube.
Applications
Direct reading flow indicators with adjustment valve for low flow rates of liquids or gases (valve on request for models 1901 and 1903)
Features
- Direct reading of low flow-rates
- 3 models - C to C (A): 100, 170 or 320 mm
- ATEX version on request
- Pressure limit: 16 bar
- Temperature: -20 ... +100 °C
- Borosilicate glass tube
- Protection: PMMA; Ex version: PCC
- Sealing: rubber, FPM, EPDM
- Fittings: NPT-F or BSP-F size ¼''
- OPTIONS:
- Pressure regulator
- Inductive contacts
Variable area glass flow rate indicators
Variable area glass flow rate indicatorsThe E Series are variable area flow indicators, the diver (''float'') moves inside a calibrated conical tube.
These flow indicators may be calibrated accordind the fluid properties and operating conditions.
They accept flow switches, inductive monostable contacts, adjustable over the entire measuring range.
Applications
The E series flow indicators are used for flow-rate reading or on gases or on liquids:
- Water treatment plants
- Manufactures (pulp industry, textile industry, etc.)
- Chemical, pharmaceutical industries
- Heating or cooling plants
Features
- Direct reading
- Accuracy ± 2 %
- For liquids or for gases
- Materials according ranges
- Adjustable contacts
Data Processors
Wall mount galvanometric indicator
Wall mount galvanometric indicatorThe device integrates an electronic module (CUB-233, data-sheet 233-03) that monitors a galvanometric analogue display for level or volume on the front case. Scales are in % or litres from 0 to 50 l and up to 120 000 l (for cylindrical and parallelepipedic according to EN 12285, NF 88513, etc.) Other parameters and scales on request.
Relays outputs are adjustable all along the measuring scale (thresholds, hysteresis and timer).
There are 5 available cable glands.
Applications
This galvanometric indicator is designed for local display and control of an analogue input signal. It is particularly well suited for control rooms on diesel-oil stored for generators and boilers.
Lot of additional applications are available: Water storage monitoring, local display of temperature, flow-rate, pressure, etc.
Features
- Wall mount box IP 55
- Dial 72 x 72 mm
- 1 Analogue input
- 1 Analogue output 0/4-20 mA
- 2 Relay outputs
Wall mount galvanometric indicator
Wall mount galvanometric indicatorNANODAC ™ Recorder / Regulator offers the ultimate in recording (high accuracy & secured recording, high resolution LCD) in a ¼ casing.
Standard supply includes
4 free potential inputs, 4 analogue inputs and 14 calculation channels.The 10/100Mb Ethernet port monitors Modbus TCP Slave and FTP Client Server protocols. Its USB port allows local data recovery on USB memory stick.
Applications
To record, secured data, high accuracy
Features
- 3.5'' TFT color display, 320x240 resolution
- 4 Inputs: TC, RTD, mA, mV and V
- 1 Logic data input / output
- 2 Potential free contact inputs
- 4 Relay outputs
- 14 Virtual channels
Wall-mounted model
Digital and graphical display
The instrument has a colour touch-sensitive screen to navigate through an intuitive and multilingual menu. BAMOWIZ converts analogue input signals (4-20 mA) and delivers clear information on its large digital and graphic (Bar Graph) display for an easy reading of measurements and thresholds status.
Settings are keyword protected.
BAMOWIZ has a flexibility of use for analysis of input data such as the display of level, volume or a specific parameter (pressure, temperature, turbidity, etc.). The keyboard on the touch screen allows you to set the measuring unit (Example: μS, Ohm, Ω, °C, bar, etc.).
Flow-rate indicator and Totalizer with the frequency input: BAMOWIZ accepts pulse signal, for instance from BAMOFLU sensors up to 10 kHz.
- Graphic colour touch-sensitive screen
- Scale units: set on keyboard
- Inputs: 2 x 4-20 mA, 1 x Frequency
- Outputs: 1 x 4-20 mA, 1 x Modbus RS485
- 8 configurable thresholds on 3(4) relays
- Option: Modbus TCP/IP (Ethernet)
Panel-mounted model
Applications
- Local display of any process (Level, turbidity, pressure, etc.)
- Flow counter and totalizer through frequency input
- Display and monitoring of measurements
- Display of level or volume with possibility of linearization
- Differential between two input signals (example: differential pressure with 2 sensors)
Displayer
Counter, Totalizer, Batch/dosing controller
The BAMOWIZ DOZ consists of two separate modules that ensure precise and efficient control of the dosing process:
1) Color touchscreen display
Featuring a full-color graphic display, the touchscreen allows smooth navigation and rapid configuration. It converts flowmeter pulses into customizable units of measurement, such as m³ or liters, offering great flexibility of use. The main display provides a clear, real-time view of essential parameters, including :
- Dosing / batching setpoint
- Volume counted during a cycle
- Timer countdown via slider
- Status of relays S1, S2 and S3
- Totalization of volume
- Number of cycles completed
Control Unit
2) Control unit
The BAMOWIZ DOZ control unit is designed for optimum control of dosing operations. It makes it easy to start or stop a dosing cycle by directly controlling a solenoid valve via a static output. It is also possible to use a deported contact for remote dosing control, offering additional flexibility for remote installations or automated systems.
With its ergonomic design and ease of use, the BAMOWIZ DOZ is perfectly suited to industrial environments requiring precise, adaptable dosage management.
Applications
The BAMOWIZ DOZ is a programmable totalizing counter for dosing. Its intuitive configuration makes it easy to adjust the setpoint from the main display, making it particularly suitable for applications requiring frequent adjustments.
Features
- Batching control unit (start/stop/repeat)
- Counter and Totalizer
- Pulse input
- Graphic color touch screen
- Timer alarm
Panel mounting indicators
Panel mounting indicatorsThe both versatile and programmable display units are convenient for local control of process where ambient conditions are severe and humid.
ITU 402 includes 2 relays, SPDT.
ITU 412 includes 2 SPDT relays plus 1 analogue output 0/4-20 mA.
The 4 digits display LED of 13.8 mm high / 14 segments, has a resolution from 1999 to 9999 with a floating decimal point; it shows as well the relay status (ON/OFF) of each.
All parameters are setup through the front keyboard.
A multi language help file is available through the menu.
Both display units are supplied on request already setup.
During the start up, a test for simulation may be run on each relay without a real input signal.
Both indicators provide a simple programming routine.
These IP65 indicators are of a DIN 43700 cutout: 48 x 96 mm, to fit in industrial cabinets.
- Versatile display indicators, programmable
- Inputs: mA, V, Pt 100, Ni 100, TC, Potentiometric input
- Power supply: 21.6 to 253 V AC 50/60 Hz and 19.2 to 300 V DC
- Power supply to sensor: 15 to 25 V DC ; 0/4-20 mA
- Outputs: 2 relays or 2 relays + 1 output 0/4-20 mA
Panel mounting indicators
Panel mounting indicatorsThe both versatile and programmable display units are convenient for local control of process where ambient conditions are severe and humid.
ITU 402 includes 2 relays, SPDT.
ITU 412 includes 2 SPDT relays plus 1 analogue output 0/4-20 mA.
The 4 digits display LED of 13.8 mm high / 14 segments, has a resolution from 1999 to 9999 with a floating decimal point; it shows as well the relay status (ON/OFF) of each.
All parameters are setup through the front keyboard.
A multi language help file is available through the menu.
Both display units are supplied on request already setup.
During the start up, a test for simulation may be run on each relay without a real input signal.
Both indicators provide a simple programming routine.
These IP65 indicators are of a DIN 43700 cutout: 48 x 96 mm, to fit in industrial cabinets.
- Versatile display indicator, programmable
- Inputs: mA, V, Pt 100, Ni 100, TC, Potentiometric input
- Power supply: 21.6 to 253 V AC 50/60 Hz and 19.2 to 300 V DC
- 4 digits display / LED 14 segments
- Power supply to sensor: 15 to 25 V DC / 0/4-20 mA
- Outputs: 4 relays or 4 relays + 1 analogue output 0/4-20 mA
- Specific linearization function
Wall mount cabinet for 48x96 mm indicators
Wall mount cabinet for 48x96 mm indicatorsThe lid has a cutout suitable for a 48x96 mm indicator panel mounting.
5 cable glands will insure a protection IP 55.
For assembly, the lid is removed, the indicator is secured on it and wiring can be done easily.
We can supply complete assembly with indicator and all parameters set.
––> Gasoil tank, height or volume: Potentiometer, 2-wire sensors, 4-20 mA
––> Flow / Counter: Pulses
Note: To setup the indicator we need to know the type of input signal, scale of display and threshold values.
Applications
This cabinet is ready to receivve an indicator of 48x96 mm for panel mounting (ITU, BIF series, etc.) so that it can be installed on a wall of a technical room or boiler room.
Features
- IP 55 Wall mount cabine
- Grey polycarbonate
- Dimensions 159x149x151 mm
- With 5 cable glands
Multi-parameter monitor
Multi-parameter monitorThe MultiCONT is a universal interface between various level transmitters using HART® or Modbus® protocol and the other elements of the process control system such as the PC or PLC.
Up to 15 connected transmitters:
MultiCONT can communicate with up to 15 transmitters (2- or 4-wire) with HART® protocol, but, with only 6 radar transmitters PiloTREK (maximum).
Note: MultiCONT delivers power supply to a maximum of 2 transmitters.
Control unit, settings, interfacing:
The unit can perform various operations such as remote settings, loading the programming of a unit or downloading measured values. The graphic screen facilitates access to a wide variety of functions such as to display the contents of a tank or status of compatible ultrasonic transmitters.
Analog outputs, relay outputs and / or RS485:
MultiCONT offers numerous configuration possibilities, obtained by adding and combining scalable modules: up to 2 analog outputs and / or from 1 to 5 relays. The option RS485 interface allows to connect several MultiCONT together to increase the number of transmitters in use.
ATEX version:
ATEX version of the MultiCONT allows you to control a multipoint system with a maximum of 4 devices (or only 2 PiloTREK); The unit must be install in the safe area. MultiCONT Ex versions provide power for 2-wire Ex compatible transmitters installed in hazardous areas and display the measured values.
Benefits:
The MultiCONT is competitive regarding all possibilities it offers, it achieves an incomparable low investment with multiple connected transmitters, up to 15 connected devices.
Features
- Versions from 1 to 15 channels
- Graphic display: LCD or OLED
- Power supply to transmitters
- RS485, protocol HART® or Modbus®
- Relay outputs or/and 4-20mA outputs
2 Channels, 4 thresholds, Relay
The two-channel measuring amplifier EVEREST 214S is a processor-controlled display device for DIN rail mounting. It has a built-in timer; It supplies 2-wire sensors with 24 V DC voltage. It allows a simple conversion of analog signals to limit values remote controls. Free scalable inputs and relays allows a wide domain of application.
Application
Control device for standardized 4-20mA transmitters in industrial applications
Features
- 4 adjustable thresholds, one is available as a timer
- Adjustable hysteresis
- 24 V DC power supply to 2 sensors
- 2 Inputs 4-20 mA
- Built-in timer: 1 s up to 24 h, e.g. for venting operation on MEMPRO
Versatile converter
Versatile converterConverter 233 is a great solution for any applications to convert or monitor output signals from sensors.
Both analogue outputs may be set up as mA or mV signals and both relay outputs may be set up all along the scale (thresholds, hysteresis and delay).
Application
For most of all use on signal conversion:
- Level measuring probe with potentiometric output
- Level measuring probe, 2-wire, 4-20 mA output
- Temperature probe with Pt 100 sensors or thermocouple
- Zooming on input signal
- Linearization along "up to" 100 points
- Alarming function for all the above sensor
Features
- 1 Input, multi-parameters
- mA, V, Pt 100, potentiometric, resistor
- Supply to the sensor
- 2 analogue outputs
- 2 relay outputs
- Setting by joystick or PC
- Linearization and taring function
- Wide range of main supply
- 80 ... 256 V AC 50/60 Hz; 20 ... 240 V DC
Intrinsic safety converter
Intrinsic safety converterApplication
This converter (input s.i., output non s.i.) with galvanic insulation allows powering of measuring loop or conversion of analogue signal from a transmitter (passive or active) installed in an hazardous area.
Features
- Approval [EEx ia] IIC ATEX II (1) G/D
- Main power 230 V AC
- Input and output: 4-20 mA
- DIN rail mounting
Technical
Measuring loop: 1
Main power: 230 V AC ±10 % / 48 ... 62 Hz (indicator of powered unit by a green LED on front)
Mounting In safe area
Input: s.i. - Output not s.i.
Loop powered: For transmitter, 2-wire, active or passive
Input signal: from hazardous area 0/4-20 mA
Output signal: In and to safe area 0/4-20 mA
Galvanic insulation: Between Input/ Output/ Supply: 2500 V AC / 50 Hz
Installation: In safe area
Case: In ABS
Operating temperature -20 ... +60 °C
Connectors: Plug-in, clamp terminals
Mounting: Rail acc. EN 50022
Industrial communication MODBUS gateway
Industrial communication MODBUS gatewayR-KEY-LT is a compact and reliable MODBUS gateway that converts from MODBUS TCP-IP protocol to MODBUS RTU / ASCII and vice versa.
It supports up to 8 TCP-IP MODBUS clients simultaneously and 10 MODBUS TCP-IP servers.
It alllows to integrate serial MODBUS slave devices into an existing TCP-IP MODBUS network as well as MODBUS TCP-IP slave devices can be made accessible to serial master.
R-KEY-LT can be configured through web server and software tools.
It has a mixt power V ac/ V dc, 1,5 kV ac isolation.
It can be powered also by 230 V ac (With optional accessory).
Features
- MODBUS :TCP-IP to RTU / ASCII
- And vice versa
- Traffic monitoring by webserver
- Ethernet front port RJ45: Fast Ethernet 10/100 Tx
- Up to 8 TCP-IP Clients - Up to 10 TCP/IP servers
- 1 Serial port RS232 / RS485
- Mounting: Rail DIN or wall mount
425e GSM modem with antenna
Industrial cellular modem for alarm relay
Entirely dedicated to wireless technology markets, the GsM 425e modem enables quick and easy integration of GSM/GPRS connectivity into a Machine to Machine (M2M) application.
The GsM 425e modem has 3 inputs and 1 output.
The programming software has been specially developed to make programming and use as easy as possible.
The GsM 425e kit includes:
- A GSM 425e modem
- A 2G/3G/4G antenna
- A power supply unit
- An RS232 connection cable with an RS232/USB connector for configuring the modem using the BAMO IER software, which can be downloaded from our website
- A 4-wire cable (power supply + 1 IN + 1 OUT)
- A 2-wire cable (2 IN)
- Two mounting plates
Modem mounted in IP67 case
Optionally, the GSM 425e modem is available with a pre-wired IP67-rated waterproof wall-mount enclosure for environments requiring modem protection.
Features
- Remote alarm reporting
- 2G/3G/4G box
- 3 inputs / 1 output
- Programming software included
Amplifier relay
All Reed contacts suffer of inductive or capacitive charge due to starting pumps or motors, leading to early aging and malfunction. A solution is to protect Reed contacts with a relay amplifier, to insure greater switching power and lifetime.
ES 2001 amplifies commutation signals on low current and low voltage detection loops, e.g. by use of Reed contacts.
Mounting: on DIN rail for easy integration in industrial cabinets. On the front a LED displays the output relay status. This relay ES 2001 is also perfect for liquid detection or liquid level regulation (documentation 530-01).
Applications
ES 2001 relays are designed for:
- Reed contact, models included in BRK60, MNR6, MNR7 etc.
- Flow switch, such as Z42 (IDP – PDP), CDP etc.
Each relay allows a regulation between two trigger points. For instance to fill in or emptying a tank by automation of a pump (or a valve). Each relay has 2 outputs change over contacts, potential free to allow driving for example, a power loop or an automate.
Features
- Protection of Reed contact
- Outputs: 2 change over contacts, voltage free; 5A / 250 V AC / 500 VA
- Status relay display
- Regulation between two trigger points
- Adjustable time delay
Intrinsic safety relay
RDN 11 is an intrinsic safety relay with galvanic insulation. It is designed to relay an ON/OFF signal, from a contact or proximity sensor (DP) located in hazardous area, to the safe area.
Features
- Intrinsic safety relay
- Galvanic insulation
- Protection for 1 contact or proximity sensor
- Change over relay output
Electical features
Supply:
- 230 V AC ±10 % (48 ... 62 Hz)
- 24 ... 48 V DC ±10 %
Signaling: Green LED on front panel
Input signal (From Hazardous area):
- Potential free contact
- Proximity sensor 2-wire (NAMUR standard)
Impedance line: 1 kΩ max.
Output signal (in safe area):
- Contact output, potential free; max.: 250 V; 5 A; 100 VA
Response time ≤ 20 ms
Switching frequency 10 Hz max.
Signaling: Red LED on front panel (when relay is actuated)
Galvanic insulation: Input/ Output/ Mains supply: 2500 V AC; 50 Hz
Multifunction Relay: PKK
The PKK-312 is a 4–20 mA switch with galvanic isolation.
The product range includes an intrinsically safe version.
The input signal value is compared with the setpoint value, and the galvanic isolation's state changes according to the programmed comparison mode.
The outputs can be programmed for the following applications:
- Switching threshold (high or low)
- On/off control with selectable switching hysteresis
- State comparison mode with relay activation or deactivation
- Line break or cable fault monitoring
Instead of the 4–20 mA signal, a dry contact can also be connected to the input.
The state of this contact will be mirrored and the output signal will remain galvanically isolated.
The PKK-312 includes circuitry allowing selection of delays: 0.1, 1, 2, or 5 seconds.
Relay state diagram:
The relay's operating modes can be configured using the front-panel keys, with guidance from the dual-color LEDs.
One of the key settings is the relay operating mode “R”:
When the input current exceeds the threshold setting:
If R = 1, the relay output is activated
If R = 0, the relay output is deactivated
Thus, for fill/drain or temperature maintenance applications, the control mode (normal or inverted) can be freely assigned to on/off function.
Features
- Galvanic isolation
- 4–20 mA or dry contact input
- Intrinsic safety
- Configurable relay outputs
- Transmitter power supply
Relay state diagram:
In: Current input
R1: Relay state / operating mode [R=1]
R0: Relay state / operating mode [R=0]
L1: Threshold S1
L2: Threshold S2
W: Window
Sd: Switching differential
RE: Relay activated
Signaling and protection relay
Signaling and protection module.
Features
- Complete relay with signaling LED
- DIN rail or panel mounting
- Status indication via a LED
Applications
Convenient for free potential contact and digital contact (transistor).
Frequency converter
The BAMOTOP receives a frequency input signal that it processes numerically to convert it into an analogue voltage or current signal.
Two analogue outputs can be assigned in mA or mV.
Two relay outputs can be set over the entire input scale (value, hysteresis and time delay).
Features
- 1 Frequency input
- Power supply to sensor
- 2 Analogue outputs (current or voltage)
- 2 Relay outputs
- Set up through a joystick or a PC
- Universal main power input
- 80 ... 256 V AC 50/60 Hz ; 20 ... 240 V DC
- Total insulation:
- Inputs, Outputs, Power / 2500 V AC
Applications
To convert a frequency signal into an analogue signal (Inputs signals from dry contacts, CMOS and TTL circuits, magnetic sensors, PNP/NPN sensors).
Flow-rate indicator, plus totalizer
Features
- For flow sensors
- Input: NPN, PNP, Push Pull
- Frequency ranges: from 10 Hz up to 10 kHz
- Power supply: 85 … 260 V AC
- Display: 6 digits
- 2 relay outputs, N.O.
- 1 analogue output, 4-20mA
Applications
BAMOBIF 282 converts the pulse signal from flow sensors to display instant flow-rate and totalization.
It is usefull for flow control applications through its outputs: 2 relays and 1 analogue signal 4-20 mA (image of the flow-rate).
