Delphin Measurement Software

With their software packages, Delphin offers you comprehensive software solutions for the areas of measurement technology, measurement data and process analysis as well as process control. They have been a manufacturer of automation and measurement technology products for over 40 years.

ProfiSignal

Powerful data acquisition with a versatile range of functions

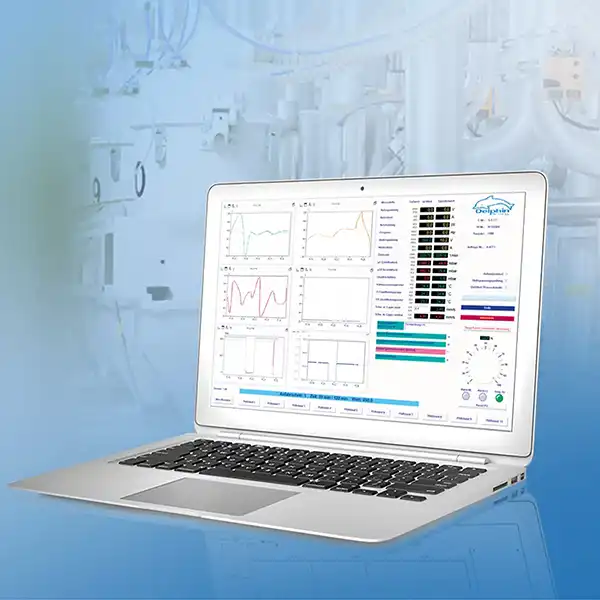

ProfiSignal is the classic standard tool for measurement and process data acquisition, test stand automation and measurement technology. The application range for the measurement technology software is from simple data archiving and visualization to complete automation solutions with automated reporting.

With ProfiSignal, three different versions are available to you as classic measurement technology software. Thus, your measuring task can be optimally adapted and implemented.

ProfiSignal Go

Fast measured value acquisition

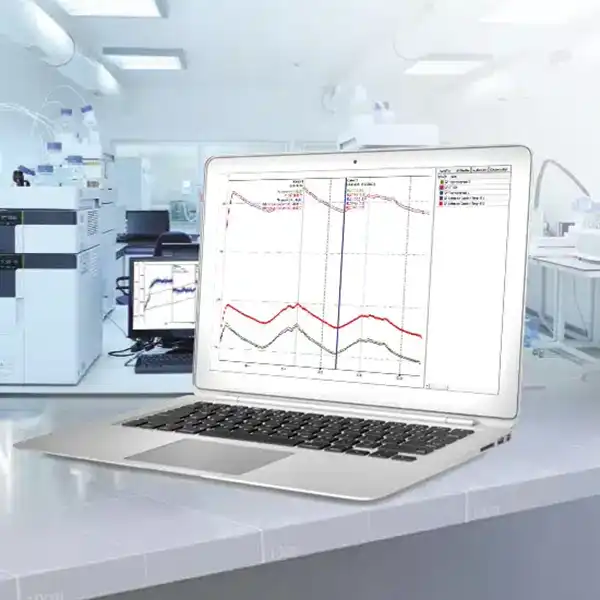

With the ProfiSignal Go software, you can start acquiring and evaluating your measurement data without long preparation. A wide range of functions are available to help you solve your measurement problems.

The principle of the ProfiSignal Go data acquisition software is based on any number of online analyses, whereby each online analysis can be assigned a diagram with any number of selectable channels. You can assign a trend diagram (y(t) diagram), a characteristic curve diagram (y(x) diagram) or a logic diagram to the individual online analyses.

ProfiSignal Go has an online and an offline mode. With the online mode, you can observe the current events of your processes. With the offline mode you can access historical data, also in high resolution. You can move back and forth on the timeline.

The statistics as well as the on- and offline calculation functions round off the range of functions of ProfiSignal Go and facilitate the evaluation of your measurements.

Users can monitor and evaluate processes both online and offline
Various diagram types for data visualisation (online/offline)
Seamless switching to the offline area
ASCII export as CSV file / trend export as vector-based EMF file
Statistics and offline calculation functions
Analysis with cursor functions down to the μs
Evaluation of digital signal sequences
Permanent storage in database format
Storage of batch-related tests as individual files
Alarm functions by e-mail in case of alarm
Display of diagram functions
Versatile interfaces for connecting peripherals

ProfiSignal Basic

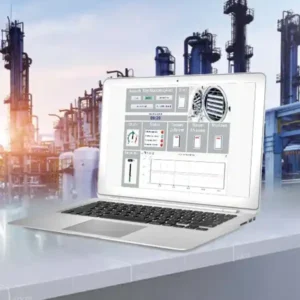

Monitoring with ProfiSignal Basic

ProfiSignal Basic enables measurement data analysis directly in the visualisation interface and/or in individual diagrams, independent of your application. With the ProfiSignal Basic monitoring software, you can create your individual applications with visualisation charts, characteristic curves or trends.

The diagrams can be switched directly from visualisation to full-screen mode, making all functions of measurement data analysis easily accessible for online or historical data. In addition to the visualisation of processes and data, visual objects such as text input fields, switches, buttons and slide or rotary controls also enable the operation of systems.

You can create the operating and observation diagrams by compiling and configuring the elements. Basic functions are already included for the operation of test stands and the automation of measurement tasks. ProfiSignal Basic contains all the functions of ProfiSignal Go.

Multiprocessing - independent execution of several applications
Versatile operating and monitoring functions
- Push-button, slide and toggle switches
- Input fields, selection and check boxes
- Analogue and digital displays, signal lamps
- Tanks
- Tables
- Images for customised design
- Background images e.g. system diagram, drawings, photos
Basic functions for automation
Monitoring and analysis of any measured values
Reporting

ProfiSignal Klicks

Automation with ProfiSignal Klicks

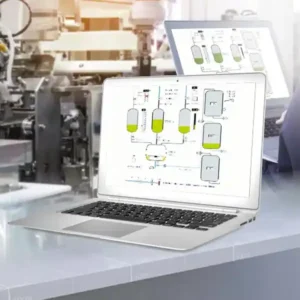

ProfiSignal Klicks is an automation software with which you can operate, observe and control your tests as well as record and evaluate measurement data. You as the user do not need to learn a programming language at all.

The structure diagram allows you to structure each programme step of your application in a clear, interlinked manner and thus always maintain an overview. Every test sequence, trial and process sequence can be represented in the form of a structure diagram with just a few graphic building blocks.

With the ProfiSignal Klicks automation software, the creation of individual reports with diagrams, tables, comments, etc., which are generated automatically, e.g. according to your test sequence, will considerably reduce your documentation effort.

Through the simple creation of visual diagrams and the intuitive programming technique, you as the user create your application directly. These are generated from simple representations with simple on/off switches to complex process sequences or test stand applications with parameter entries, process sequences via visualisation and automatic reporting. ProfiSignal Klicks contains all the functions of ProfiSignal Go and ProfiSignal Basic.

Automation functions through ready-made context menus and programme texts
Preparation of recipes and management of test parameters
Versatile operating and monitoring functions
- Push-button, slide and toggle switches
- Input fields, selection and check boxes
- Analogue and digital displays, signal lamps
- Tanks
- Tables
- Images for customised design
- Background images e.g. system diagram, drawings, photos
Synchronous / asynchronous execution of multiple applications through multiprocessing
SQL interface for database connection (optional)
Creation of comprehensive and individual reports

ProfiSignal 20

Platform-independent measurement software

ProfiSignal 20 is very user-friendly and combines a versatile range of functions with first-class usability.

Trend-setting measurement technology software

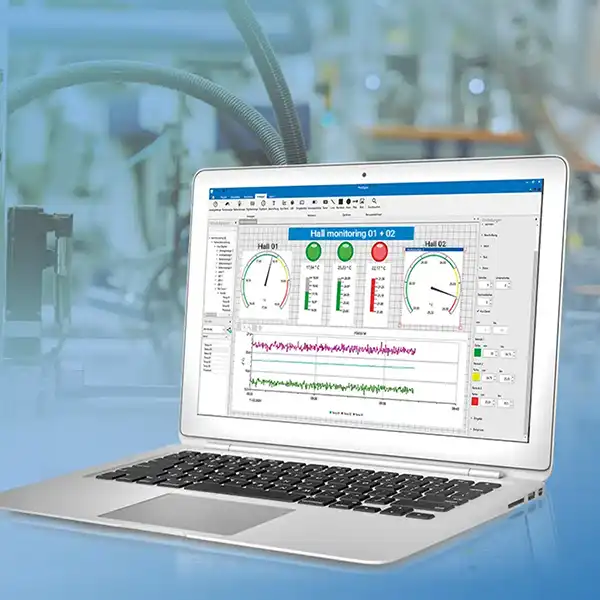

ProfiSignal 20 is the modern complete software for applications in the field of measurement data acquisition and analysis, visualisation and process control. With ProfiSignal 20 you can now visualise and analyse your measurement data platform-independently and monitor and control your processes without effort.

You can use the measurement software on the desktop PC in your office or on the measurement computer in the control center. Due to its future-oriented platform independence, ProfiSignal 20 can also be used on tablets and smartphones.

ProfiSignal 20 is modular, scalable and available in two versions:

ProfiSignal 20 Go

Fast project planning and analysis of measurement data with ProfiSignal 20 Go

With ProfiSignal 20 Go you can visualise your measurement data in just a few steps, both online and offline, in various diagram types, monitor, analyse, archive as a measurement file or export directly in the appropriate file format.

Already during the ongoing measurement, you can also access historical measured values without interruption, for example, to compare them with the current test. With the help of various statistics functions, data areas to be examined can be marked and analysed directly.

Multi-track diagrams for linking several measurement curves with the same time axis, e.g. for direct comparison of analogue and digital signals
SCACH function - One scan is enough to open the correct diagram
From the measured value to the diagram display with just a few (mouse) clicks
Monitoring and analysis of any measured values from the most diverse sources (hardware and software)
Single and multi-axis y(t) diagrams with the possibility of simultaneous display and analysis of different measured variables
Statistical evaluation and on- and offline calculation functions
Smooth zoom function from the general overview to the high-resolution μsec range
Data export as CSV file, in Diadem or WAV format
Simplified trial execution and batch processes thanks to user-friendly recorder function

ProfiSignal 20 Basic

Visualisation and operation

With ProfiSignal 20 Basic you get a fast and intuitive solution for your monitoring application or your process visualisation.

Monitoring and process control of measurement data with ProfiSignal 20 Basic

With ProfiSignal 20 Basic you can create individual charts using a wide range of operating and observation elements.

Both continuous processes (e.g. production data acquisition) and discontinuous measurement tasks (e.g. test measurements) can be visualised, operated and monitored without any programming effort. You can create the operating and monitoring diagrams by assembling and configuring the prefabricated elements.

All functions of the ProfiSignal 20 Go software, with the different diagram types as well as analysis and export functions, are completely included in ProfiSignal 20 Basic and round off the functional diversity of your application.

In addition to the visualisation and analysis of measured values, many users need a simple way to monitor and control their processes. Here, the use of ProfiSignal 20 Basic, which in addition to the pure display and analysis of measured values also has functions for process visualisation and control, is of great advantage.

Intuitive creation of charts without programming effort
Ready-made operating and observation elements
- Analogue displays, round displays, bar graphs
- Digital displays, signal lights
- Geometric objects and text fields
- All diagram types from the ProfiSignal 20 Go software
- Images
Working copy concept enables project adjustments during operation
Direct access to the camera from mobile devices for creating photos as background images
SCACH function - one scan is enough to open the right project
Object designer for composite objects
Multiple versions of the same project - optimised for different devices

Delphin Data Center

Central measurement data management

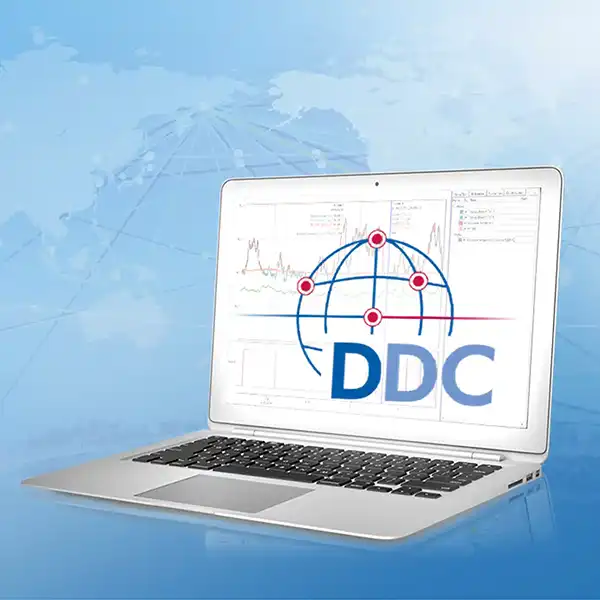

The Delphin Data Center is the solution used for the worldwide measurement networking and control of plants, machines and test stands.

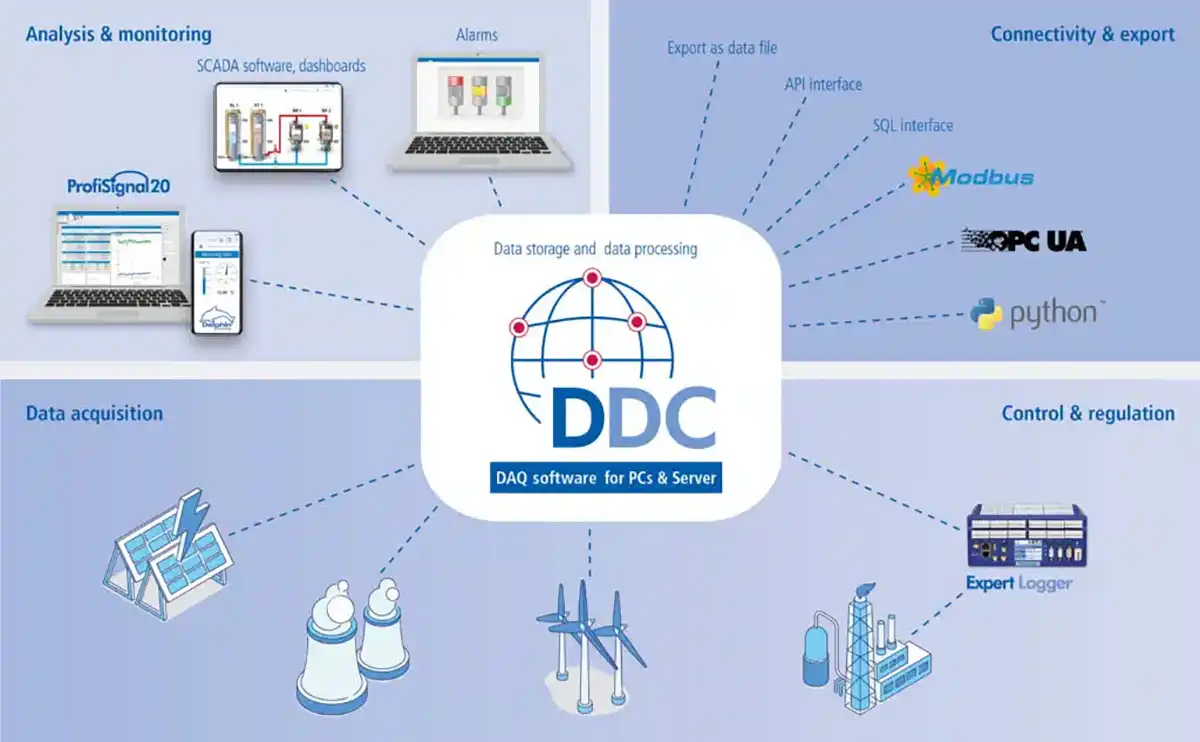

The Delphin Data Center is a centralised measurement data management system that networks, centrally stores, monitors and analyses the measurement data of systems, machines and test stands. The measurement data is archived in a valid and traceable way and is able to access it within seconds, whether on a network, via PC or mobile via smartphone or tablet. To realise any set-up, for example with a NAS drive as the central data server, the Delphin Data Center can be installed not only on Windows but also on Linux systems.

A special highlight of the Delphin Data Center is the possibility for machine or plant manufacturers to expand their business model by providing their end customers with access to the operating parameters and status data of the assets they have purchased. User-selective access rights ensure that each end customer only has access to the assets that belong to them. Data security and integrity are ensured at all times thanks to SSL-encrypted transmission.

Centralised data acquisition from distributed sources
A range of interfaces enable any data source to be connected
Loss-free data compression
Long-term archiving
Special data pre-processing via software channels
High-performance data archiving with lightning-fast access
Smooth transition from online to historical data
Access via any number of clients (license packages)
Continuous and batchbased archiving and evaluation
Automated export of measurement data and characteristic values
Crosssystem user management
Centralised alarm management with multiple notification options
Easy to use, can be setup without programming
Optimised performance -> processing of up to 100 million data records per second
Installation on both Windows and Linux systems
64 Bit support
OPC UA Client/Server interface
OPC UA HA Server interface
Secure data transmission thanks to SSL encryption
Support of new business models through user-selective access rights

Areas of application for the Delphin Data Center

New business models through "condition monitoring as a service"
Condition monitoring of machines and systems
Service life testing and long-term archiving
Monitoring of field test facilities and test drives
Synchronisation of worldwide measurement and monitoring tasks
Data standardisation and consolidation
FDA-compliant applications / clean room monitoring
Operating and process data acquisition
Connection to ERP and MES software

Cross-process data handling

The Delphin Data Center is the heart of the measurement data management system. It merges, synchronises and intelligently pre-processes the data, and uses data compression to optimise storage and performance. Software channels provide extensive functions for calculating and analysing measurement data. The Delphin Data Center also offers user and alarm management across systems. Automated measurement data export is also possible, e.g. into ASCII or CSV formats.

Software channels and calculations

Calculation of any number of channels with each other using calculation channels
Limit value channels monitor a source for limit values with the ability to generate alarms
Mean value channels calculate a channel‘s mean value
Statistics channels calculate statistics for a channel: minimum, maximum, variance, standard deviation, number of measured values, true RMS value, geometric mean value, harmonic mean value
Linearisation of non-linear signals
Counter for channel edges
Pulse generator for cyclic pulses
Sequencer for controlling measurement sequences and processes
Integration of function libraries and tables (e.g. substance databases for refrigerants)

User management

Password management
User-rights management
Client management

Data interfaces

Modbus TCP server / client
API-, SQL-/ODBC
OPC UA server / client
OPC DA server / client
OPC UA HA server
Individual drivers incl. configuration dialogs

Alarm management

Creation of alarm conditions and rules
Detailed alarm list with options for confirmation
Notification by email or text messaging in alarm events
Audit trail for FDA compliant applications

Data management

Centralised data acquisition from distributed sources
Loss-free data compression
Special data pre-processing via software channels
Data storage incl. database processing
Continuous and batch-based archiving
Fast, smooth transition from online to historical data
Access via any number of clients (license packages)

Data security

Automated access to Delphin measuring and testing devices by an integrated scheduler
Continuous data acquisition and data consistency
Data integrity ensured at all times thanks to SSL-encrypted transmission
Secure separation of measurement data network and office network
