Kimessa Gas Detectors

Kimessa Swiss logo 2023
Contact us for Selection Help?
monoline-detector
monoline-alarm

MONOline

  • The MONOline detector is used to display the measured gas concentrations and to control the connected devices
  • The monitor is factory calibrated and ready to use
  • 24VDC or 230VAC power supply
  • Wall mounting
  • Internal sounder alarm
  • Incorporated LED Flash-Light
  • Alarm status clearly visible on the OLED- Display
  • Robust IP 65 enclosure
  • 3 internal relays available to activate ventilation fans or alarming units
  • Different relay functions programmable (Reset manual or automatic, NO/NC) and alarm thresholds by magnet pen
  • Technology with simple concept for replacing a sensor
    integrated MODBUS RTU interface
  • Connector for remote RESET

Gas detector with 4-20 mA output

  • The gas detector measures the selected gas concentration
  • linearized and temperature-compensated 4-20mA output signal
  • 16…30VDC supply voltage (2-wire or 3-wire cable)
  • various gas sensor technologies available (electrochemical, Infrared, pellistor, semiconductor)
  • factory calibration with calibration certificate to the specified measuring range
  • Zero & Span potentiometers and calibration jack socket accessible from outside without opening the gas detector enclosure
  • water- and dust-proof IP 65 enclosure
  • rust-proof and acid-resitant steel enclosure
  • Swiss-Made
Gas-detector-with-4-20-mA-output
Gas-detector-with-digital-output

Gas detector with digital output

  • The gas detector measures the selected gas concentration
  • The gas detector is part of the digital KIMESSA CANline BUS-Network which is designed for up to 128 gas detectors and alarming units
  • linearized and temperature-compensated digital CANline BUS output signal
  • 16…30 VDC supply voltage (4-wire cable)
  • various gas sensor technologies available (electrochemical, Infrared, pellistor, semiconductor)
  • factory calibration with calibration certificate to the specified measuring range
  • Zero & Span potentiometers and calibration jack socket accessible from outside without opening the gas detector enclosure
  • water- and dust-proof IP 65 enclosure
  • rust-proof and acid-resitant steel enclosure
  • Swiss-Made

Gas detector with 4-20 mA output for Ex zone 2

  • The gas detector measures the selected gas concentration
  • linearized and temperature-compensated 4-20mA output signal
  • 16…30VDC supply voltage (2-wire or 3-wire cable)
  • various gas sensor technologies available (electrochemical, Infrared, pellistor, semiconductor)
  • factory calibration with calibration certificate to the specified measuring range
  • Zero & Span potentiometers and calibration jack socket accessible from outside without opening the gas detector enclosure
  • water- and dust-proof IP 65 enclosure
  • rust-proof and acid-resitant steel enclosure
  • ATEX-Approval: Ex dc nA IIC T4 Gc
  • Swiss-Made
Gas detector with 4-20 mA output for Ex zone 2
Gas-detecor-with-digital-output-1

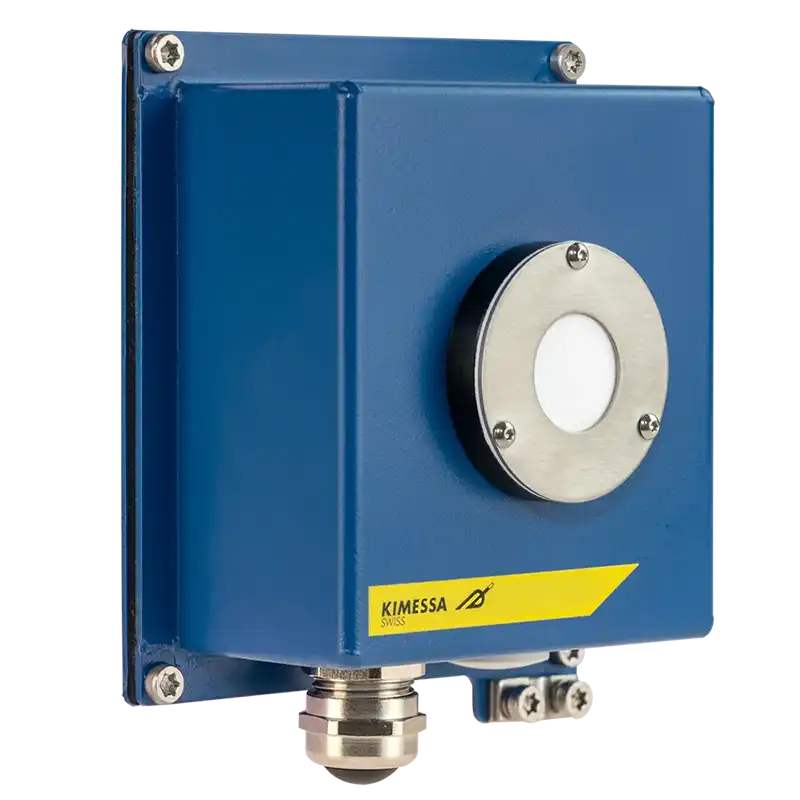

Gas detector with digital output for Ex zone 2

  • The gas detector measures the selected gas concentration
  • The gas detector is part of the digital KIMESSA CANline BUS-Network which is designed for up to
  • 128 gas detectors and alarming units
  • linearized and temperature-compensated digital CANline BUS  output signal
  • 16…30 VDC supply voltage (4-wire cable)
  • various gas sensor technologies available (electrochemical, Infrared, pellistor, semiconductor)
  • factory calibration with calibration certificate to the specified measuring range
  • Zero & Span potentiometers and calibration jack socket accessible from outside without opening the gas detector enclosure
  • water- and dust-proof IP 65 enclosure
  • rust-proof and acid-resitant steel enclosure
  • Swiss-Made

Gas detector for Ex zone 1 (4-20 mA output/digital)

  • The gas detector measures the selected gas concentration
  • The gas detector is part of the digital KIMESSA CANline BUS-Network which is designed for up to
  • 128 gas detectors and alarming units
  • linearized and temperature-compensated digital CANline-BUS-output, 4-20mA or Modbus RTU with optional relays
  • 16…30VDC supply voltage (2-wire, 3-wire or 4wire cable for CANline BUS-Network)
  • digital MODBUS-RTU (RS 485) output signal
  • various gas sensor technologies available (electrochemical, Infrared, pellistor, semiconductor)
  • factory calibration with calibration certificate to the specified measuring range
  • Calibration/ programming are easily carried out with the use of a hand held HAL magnetic sensor
  • water- and dust-proof IP 65 enclosure
  • rust-proof and acid-resitant steel enclosure
  • clearly arranged OLED-Display with concentration- and status information
  • optional 3 potential free relay outputs (to control third party devices)
  • optional relay contacts: various relay functions (manual/auto RESET, Energized/De-Energized)
  • optional relay contacts: Free programmable time delays and alarm levels
  • optional 230 VAC supply for standalone operation
  • The intrinsically safe design facilitates replacement of the electrochemical sensor without the need of a hot work permit
  • ATEX-Class: II 2G Ex d IIC T4 (semiconductor, pellistor and infrared)
  • ATEX-Class: II 2G Ex d ia IIC T4 (electrochemical)
  • Swiss-Made
Gas detector for Ex zone 1
